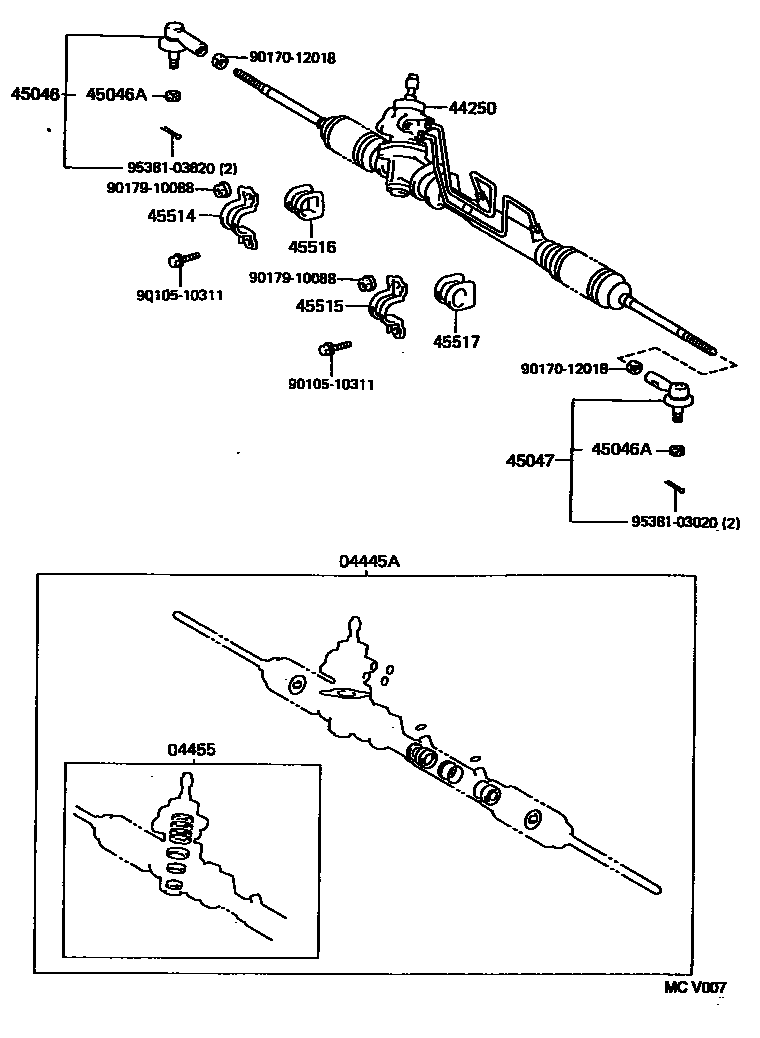

FRONT STEERING GEAR & LINK

0001 1POWER STEERING 0002 1POWER STEERING 0003 1POWER STEERING 0004 1POWER STEERING 0005 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-16080iEP91..LHD199601-199907

main04445-16110iEP91..RHD199601-199907

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-10030iEP91..RHD199601-199907

main04455-16080iEP91..LHD199601-199907

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-10200iEP91..RHD199601-199712

sub44250-10201

main44250-10201iEP91..RHD199712-199907

main44250-10210iEP91..LHD199601-199907

45046END SUB-ASSY, TIE ROD, RH

main45046-19206iEP91199601-199907

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iEP91199601

45047END SUB-ASSY, TIE ROD, LH

main45046-19206iEP91199601-199907

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-16050iEP91199601

main45514-16060iEP91199601-199707

W(POWER STEERING)

sub45514-16061

main45514-16061iEP91199707

W(POWER STEERING)

45515BRACKET, STEERING RACK HOUSING, NO.2

main45514-16060iEP91199601-199707

W(POWER STEERING)

sub45514-16061

main45514-16061iEP91199707

W(POWER STEERING)

main45515-10050iEP91199601

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-16050iEP91199601

main45516-16060iEP91199601

W(POWER STEERING)

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-10070iEP91199601

W(POWER STEERING)

main45517-10080iEP91199601

9010510311

main90105-10311

9017012018

main90170-12018

9017910088

main90179-10088

9538103020

main95381-03020

14 parts on this diagram · 5 diagrams in section
