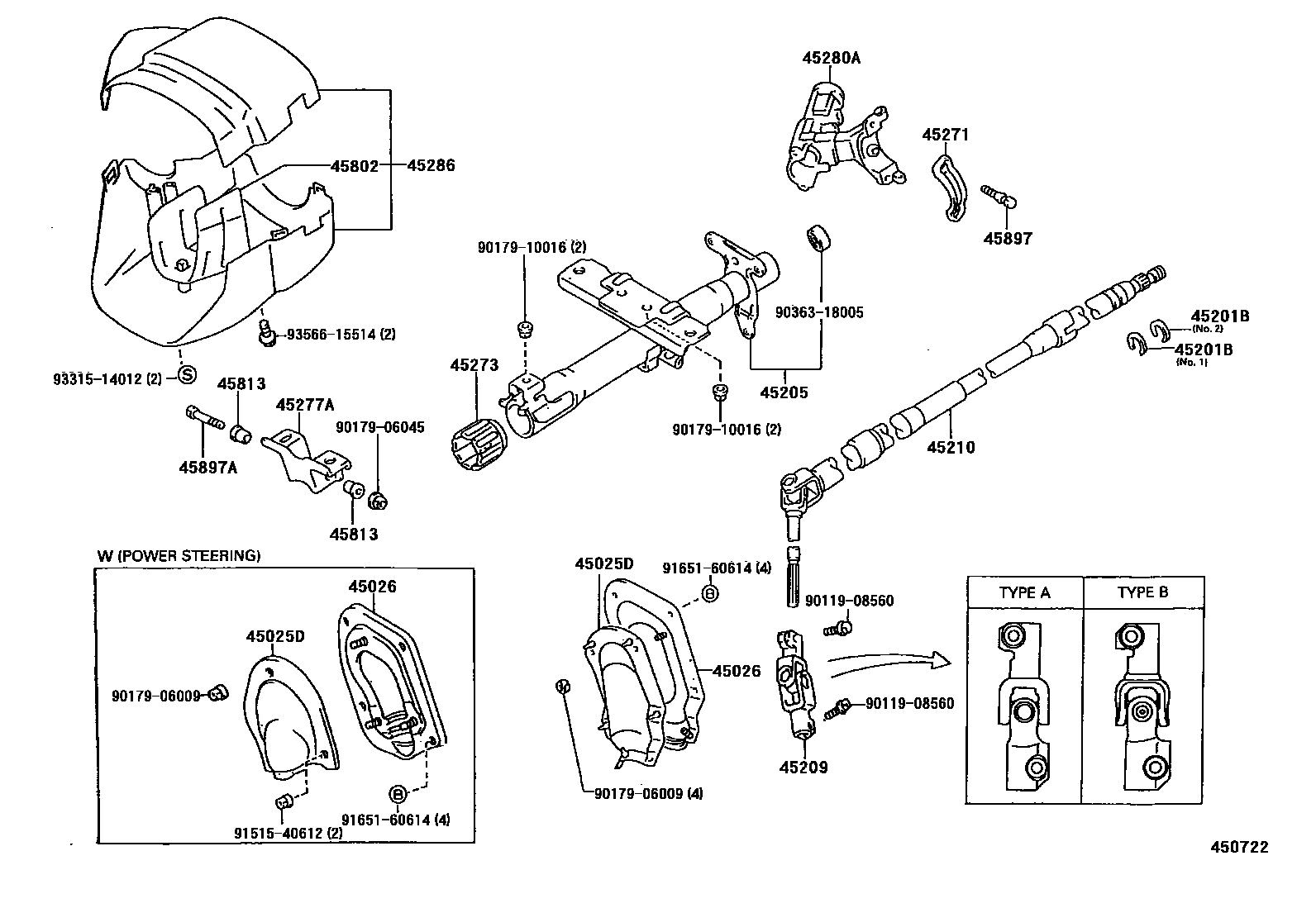

STEERING COLUMN & SHAFT

0001 1 0002 1W(TILT STEERING & UNLOCK SWIT0003 1W(UNLOCK SWITCH)

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-10080iEP91..RHD199601

main45025-10100iEP91..LHD199601

main45025-16130iEP91..RHD199601

W(POWER STEERING)

main45025-16140iEP91..LHD199601

W(POWER STEERING)

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-10030iEP91..RHD199601

main45026-10050iEP91..LHD199601

main45026-16060iEP91..RHD199601

W(POWER STEERING)

main45026-16070iEP91..LHD199601

W(POWER STEERING)

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iEP91199601-199712

T=1.20,NO.1

main90520-17042iEP91199712

LOWER

main90520-17269iEP91199601-199712

T=1.20,NO.2

main90520-17269iEP91199712

UPPER

45205TUBE SUB-ASSY, STEERING COLUMN

main45205-10220iEP91199712

main45205-10230iEP91199712

W(TILT STEERING)

main45205-16080iEP91..LHD199601-199712

main45205-16100iEP91199601-199712

W(ENGINE IMMOBILIZER SYSTEM)

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-16040iEP91199601

main45209-16051iEP91199601-199712

W(POWER STEERING),TYPE A

main45209-18010iEP91199601-199712

W(POWER STEERING),TYPE B

sub45209-16051

45210SHAFT ASSY, STEERING MAIN

main45210-10150iEP91..RHD199601-199712

W(ELECTRICAL TYPE *80)

main45210-10161iEP91..LHD199601-199712

main45210-16150iEP91..RHD199601-199712

main45210-16180iEP91..LHD199601-199712

W(POWER STEERING)

main45210-42010iEP91199712

45271CLAMP, STEERING COLUMN, UPPER

main45271-16020iEP91199601

45273BUSH, STEERING MAIN SHAFT

main45273-12020iEP91199712

main45273-16020iEP91199601-199712

45277ASUPPORT, TILT STEERING

main45277-12010iEP91199712

main45277-16030iEP91199601-199712

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-10100iEP91199712

W(ENGINE IMMOBILIZER SYSTEM)

main45280-10110iEP91..LHD199712

sub45280-10100

main45280-16120iEP91199601-199712

sub45280-16090

45286COVER, STEERING COLUMN

main45286-10916-B0iEP91..LHD199601-199712

BLUISH GRAY,TRIM1#

main45286-10917-B0iEP91..RHD199601-199712

BLUISH GRAY,TRIM1#

main45286-10918-B0iEP91..LHD199601-199712

W(*80),BLUISH GRAY,TRIM1#

sub45286-10917

main45286-10922-B0iEP91..RHD199712-199907

BLUISH GRAY,TRIM1#

sub45286-10921

main45286-10923-B0iEP91..LHD199712-199907

BLUISH GRAY,TRIM1#

45802PROTECTOR SUB-ASSY, STEERING COLUMN, NO.1

main45802-16040iEP91199601-199712

45813COLLAR, TILT STEERING SUPPORT, NO.1

main45813-12010iEP91199712

OD=14

main45813-16030iEP91199601-199712

ID=8,OD=10

45897BOLT, STEERING LOCK SET

main45897-12020iEP91199601

45897ABOLT, TILT STEERING PAWL SET

main45897-12040iEP91199712

main45897-16020iEP91199601-199712

9011908560

main90119-08560

9017906009

main90179-06009

9017906045

main90179-06045

9017910016

main90179-10016

9036318005

main90363-18005

9151540612

main91515-40612

9165160614

main91651-60614

9331514012

main93315-14012

9356615514

main93566-15514

24 parts on this diagram · 3 diagrams in section
