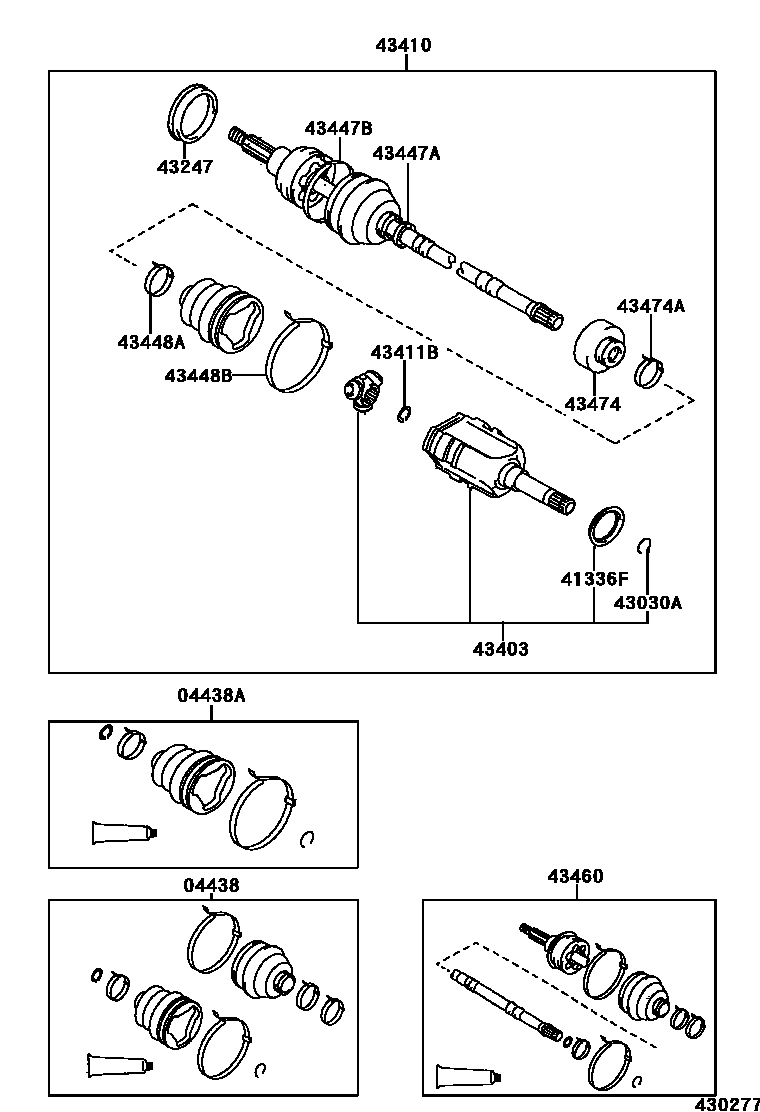

FRONT DRIVE SHAFT

0001 1RH 0002 1LH,W/O(ABS) 0003 1LH,W(ABS)

04438BOOT KIT, FRONT DRIVE SHAFT

main04438-16040iEP91¥10,800199601-199907

sub04428-16010¥12,000

04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT

main04438-16070iEP91¥6,700199601

sub04438-16071¥6,700

41336FCOVER, DUST(FOR FRONT AXLE INBOARD JOINT SET)

main41336-12010iEP91¥130199601

43030ARING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT)

main90521-26004iEP91¥100199601

43247DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2

main43247-16040iEP91¥940199601

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-10010iEP91¥23,500199601-199907

sub43403-10011¥19,500

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-10091iEP91¥80,100199601

sub43410-10270¥79,700

main43410-10101iEP91¥80,100199601

W(ABS)

sub43410-10280¥79,700

43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

main90520-22001iEP91¥110199601

sub90520-22029¥90

43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main42345-16010iEP91¥140199601

43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main42345-16020iEP91¥280199601

43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main42345-16010iEP91¥140199601

43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main42345-16080iEP91¥500199601

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-19436iEP91¥48,000199601

sub43460-80100¥48,000

main43460-19446iEP91¥50,500199601

W(ABS)

sub43460-80101¥50,500

43474DAMPER, DRIVE SHAFT

main43474-10010iEP91¥4,460199601

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-16010iEP91¥140199601

15 parts on this diagram · 3 diagrams in section
