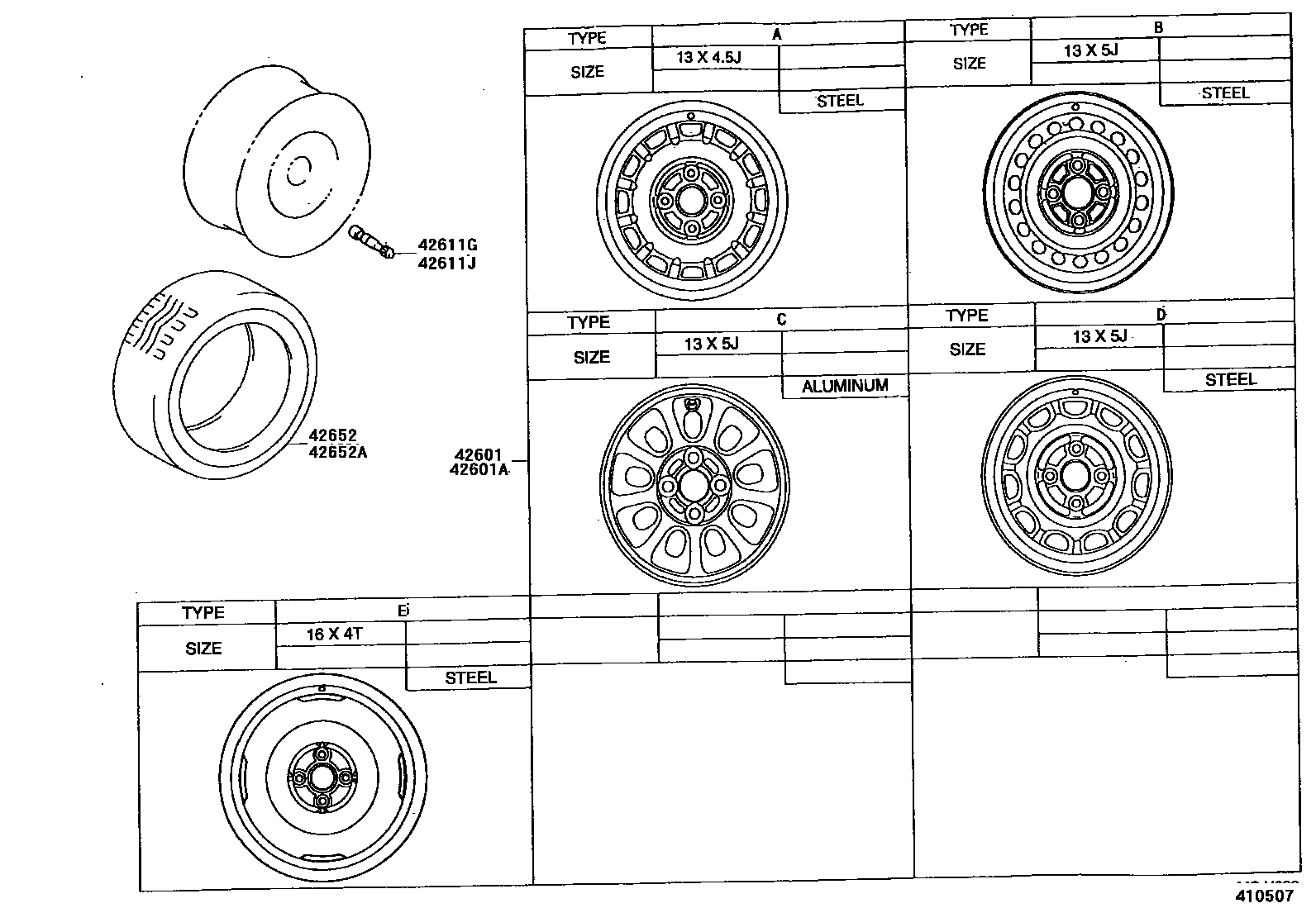

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-16400iEP91199601

13X5J,TYPE C:REFER TO ILLUSTRATION

main42611-16420-03iEP91199601

13X4.5J,TYPE A:REFER TO ILLUSTRATION,SILVER

main42611-1A150-01iEP91199601

13X5J,TYPE B:REFER TO ILLUSTRATION,BLACK

sub42611-1A151

sub42611-1A150

main42611-1A160-03iEP91199601

13X5J,TYPE D:REFER TO ILLUSTRATION,SILVER M.

sub42611-1A161

sub42611-1A160

42601AWHEEL, DISC (FOR SPARE)

main42611-10320iEP91199601-199906

16X4T,TYPE E:REFER TO ILLUSTRATION

sub42611-10321

main42611-10321iEP91199906

16X4T,TYPE E:REFER TO ILLUSTRATION

sub42611-10322

main42611-16400iEP91199601

13X5J,TYPE C:REFER TO ILLUSTRATION

main42611-16420-03iEP91199601

13X4.5J,TYPE A:REFER TO ILLUSTRATION,SILVER

main42611-1A150-01iEP91199601

13X5J,TYPE B:REFER TO ILLUSTRATION,BLACK

sub42611-1A151

sub42611-1A150

main42611-1A160-03iEP91199601

13X5J,TYPE D:REFER TO ILLUSTRATION,SILVER M.

sub42611-1A161

sub42611-1A160

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iEP91199601

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iEP91199601

42652TIRE

main42652-10380iEP91199601

145/80R13 75T

main42652-10390iEP91199601

165/70R13 79T

42652ATIRE (FOR SPARE)

main42652-10290iEP91199608-199708

T105/70D16

main42652-10290iEP91199708

T105/70D16,*D/L

main42652-10380iEP91199601

145/80R13 75T

main42652-10390iEP91199601

165/70R13 79T

main42652-10400iEP91199708

T105/70D16,*B/S

main42652-16380iEP91199601-199608

T105/70D16

6 parts on this diagram · 3 diagrams in section
