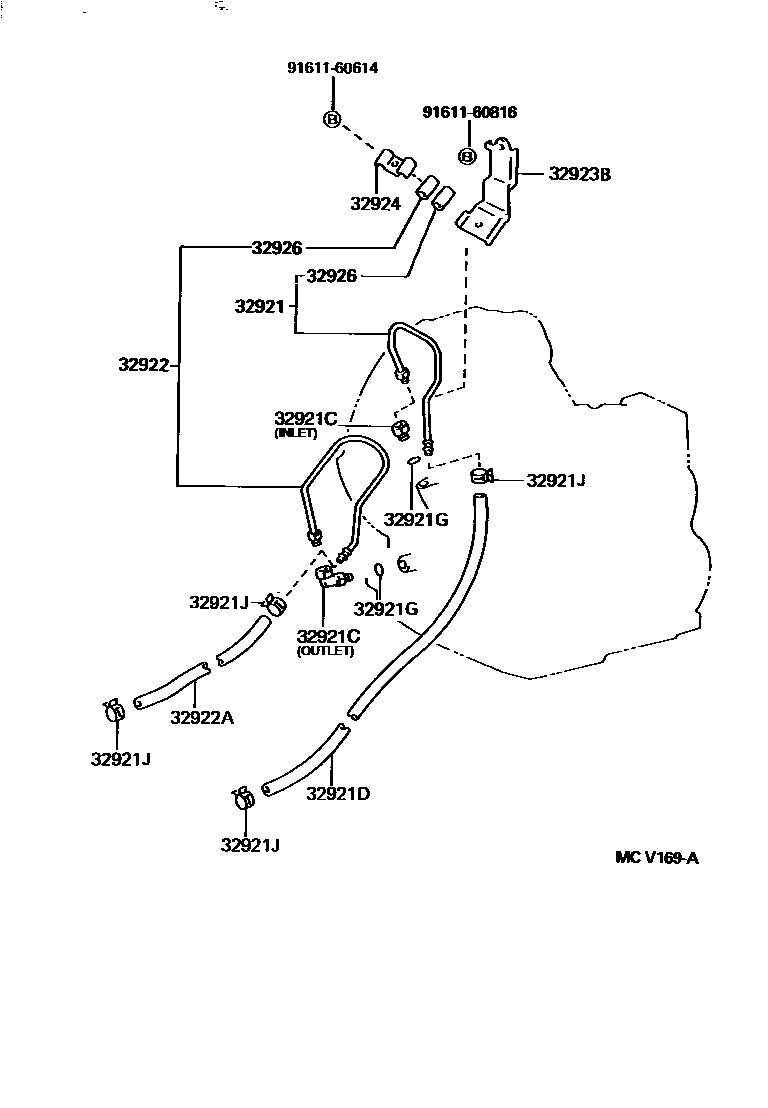

OIL COOLER & TUBE (ATM)

32921TUBE, OIL COOLER INLET, NO.1

main32921-10070iEP91..3FC199601-199712

main32921-10120iEP91..3FC199712

32921CUNION(FOR OIL COOLER TUBE)

main32901-12030iEP91..3FC199712-199907

INLET

main90404-14007iEP91..3FC199601-199712

INLET

main90407-14003iEP91..3FC199601-199907

OUTLET

32921DHOSE(FOR OIL COOLER INLET)

main90445-15014iEP91..3FC199601

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iEP91..3FC199601-199907

32921JCLIP(FOR OIL COOLER HOSE)

main90467-13039iEP91..3FC199601

sub96135-51300

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-10070iEP91..3FC199601

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-15047iEP91..3FC199601

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-16060iEP91..3FC199601

32924CLAMP, OIL COOLER TUBE, NO.2

main90462-12085iEP91..3FC199601

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-10010iEP91..3FC199601

L=30,ID=8

9161160614

main91611-60614

9161160816

main91611-60816

12 parts on this diagram · 1 diagram in section
