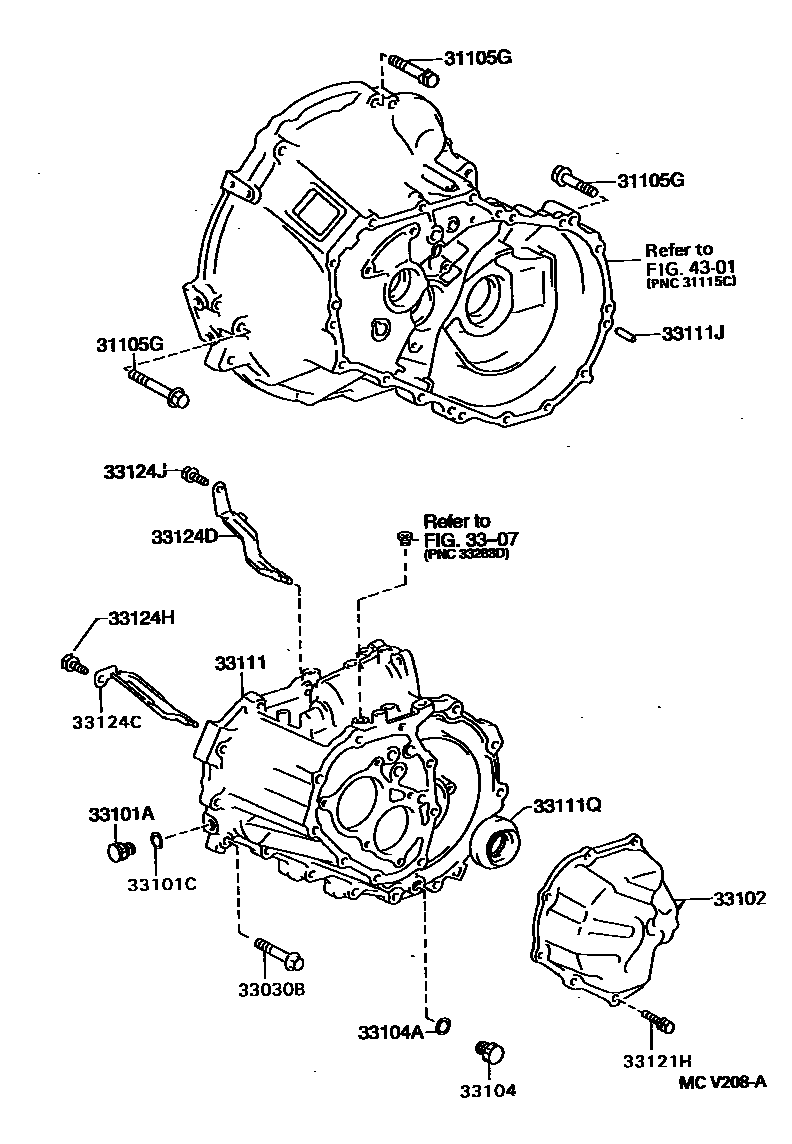

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-10097iEP91..5F199601

*10-1.25PX60-22

main91612-41025iEP91..5F199601

*10-1.25PX25-25

sub90119-10223

main91619-61260iEP91..5F199601

*12-1.25PX60-30

main91621-60614iEP91..5F199601

*6-1.00PX14-14

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08086iEP91..5F199601

*8-1.25PX45-27.5

3307

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iEP91..5F199601

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iEP91..5F199601

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-10023iEP91..5F199601

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iEP91..5F199601

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iEP91..5F199601

33111CASE, MANUAL TRANSMISSION

main33111-16051iEP91..5F199601-199704

sub33111-16052

sub90109-12073

main33111-16052iEP91..5F199704-199907

sub33111-16053

sub90109-18005

sub90430-18008

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iEP91..5F199601

L=23,OD=8

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main90311-34017iEP91..5F199601

sub90311-34028

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90119-08A34iEP91..5F199601

sub90119-08373

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-10012iEP91..5F199601

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-10021iEP91..5F199601

33124HBOLT(FOR OIL RECEIVER PIPE)

main91611-60820iEP91..5F199601-199712

sub91611-G0820

33124JBOLT, W/WASHER

main91611-60820iEP91..5F199601

sub91611-G0820

4301

17 parts on this diagram · 1 diagram in section
