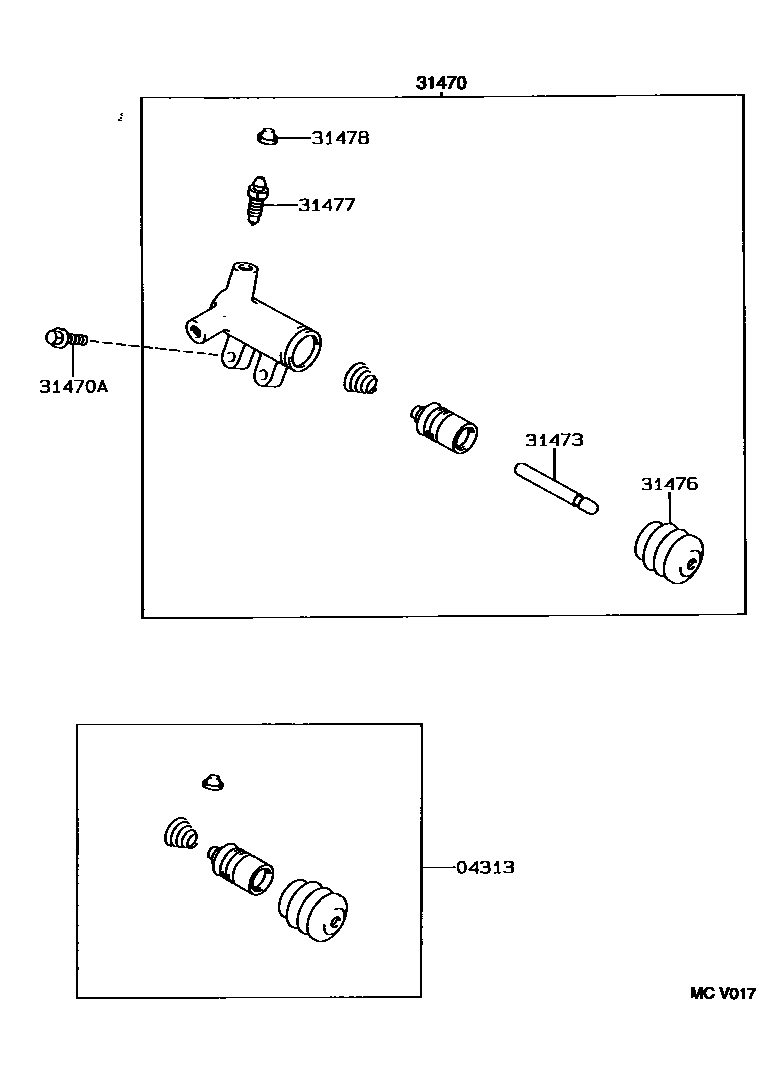

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17020iEP91..5F199601

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-10040iEP91..5F199601

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822×2iEP91..5F199601

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iEP91..5F199601

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iEP91..5F199601

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iEP91..5F199601

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iEP91..5F199601

7 parts on this diagram · 1 diagram in section
