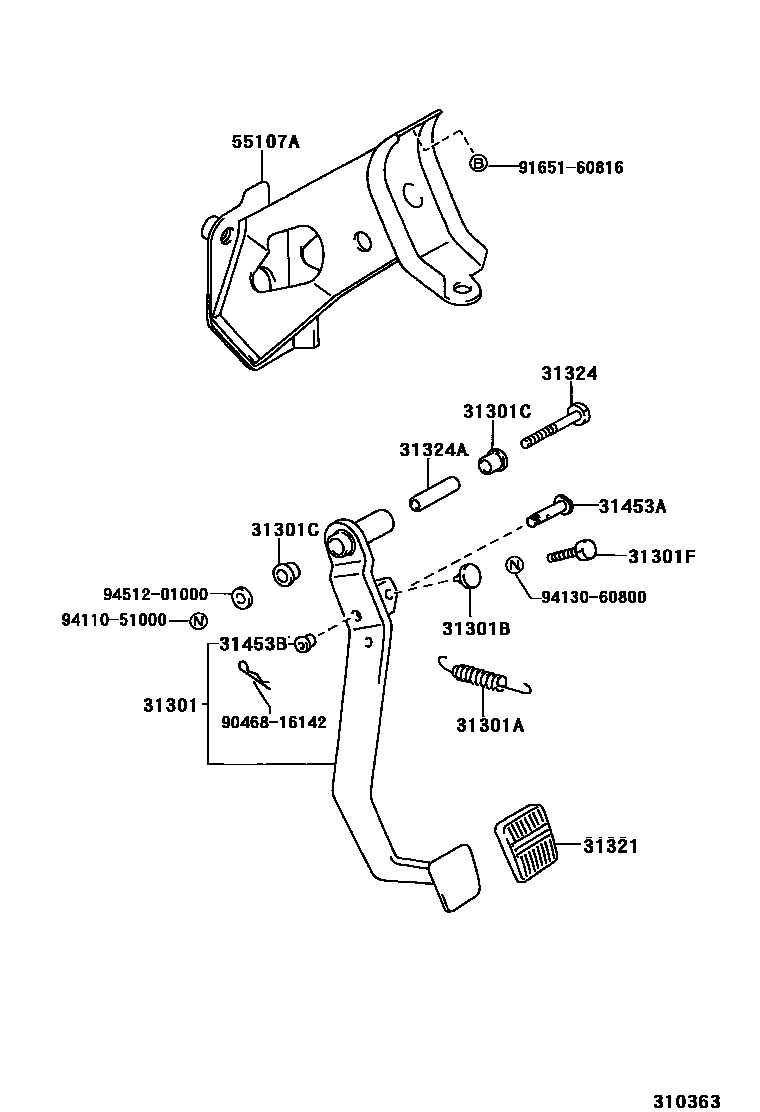

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-16090iEP91..RHD..5F199601

main31301-16100iEP91..LHD..5F199601

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14035iEP91..RHD..5F199601

main90507-14036iEP91..LHD..5F199601

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iEP91..RHD..5F199601

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iEP91..5F199601

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-08052iEP91..RHD..5F199601

main90101-10369iEP91..LHD..5F199601

31321PAD, CLUTCH PEDAL

main31321-14020iEP91..5F199601

31324SHAFT, CLUTCH PEDAL

main90101-10015iEP91..5F199601

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iEP91..5F199601

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08243iEP91..5F199601

L=30

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iEP91..5F199601

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-16070iEP91..RHD..5F199601

main55107-16080iEP91..LHD..5F199601

9046816142

main90468-16142

9165160816

main91651-60816

9411051000

main94110-51000

9413060800

main94130-60800

9451201000

main94512-01000

16 parts on this diagram · 3 diagrams in section
