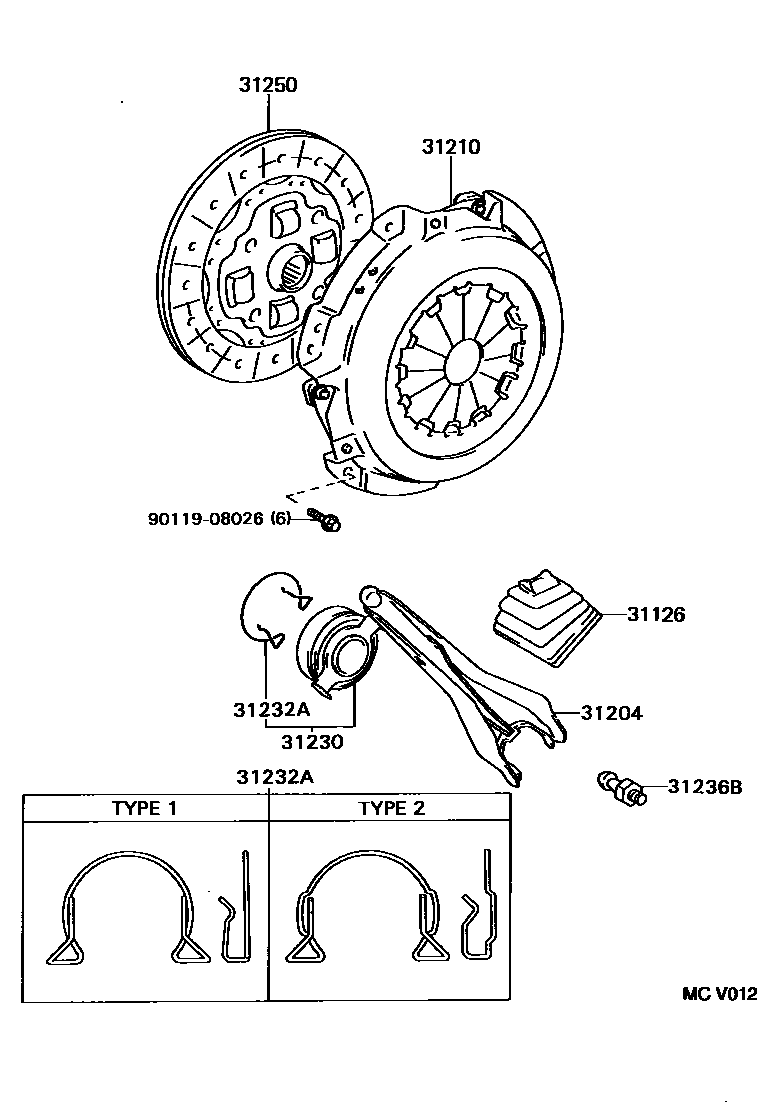

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iEP91..5F199601

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-12050iEP91..5F199601

31210COVER ASSY, CLUTCH

main31210-12210iEP91..5F199601

sub31210-12280

31230BEARING ASSY, CLUTCH RELEASE

main31230-12140iEP91..5F199601

sub31230-16061

31232ACLIP, RELEASE BEARING HUB

main31232-12040iEP91..5F199601

TYPE 1

main31232-16031iEP91..5F199601

TYPE 2

31236BSUPPORT, RELEASE FORK

main31236-12011iEP91..5F199601

31250DISC ASSY, CLUTCH

main31250-12390iEP91..5F199601-199804

sub31250-12391

main31250-12391iEP91..5F199804

sub31250-12392

9011908026

main90119-08026

8 parts on this diagram · 1 diagram in section
