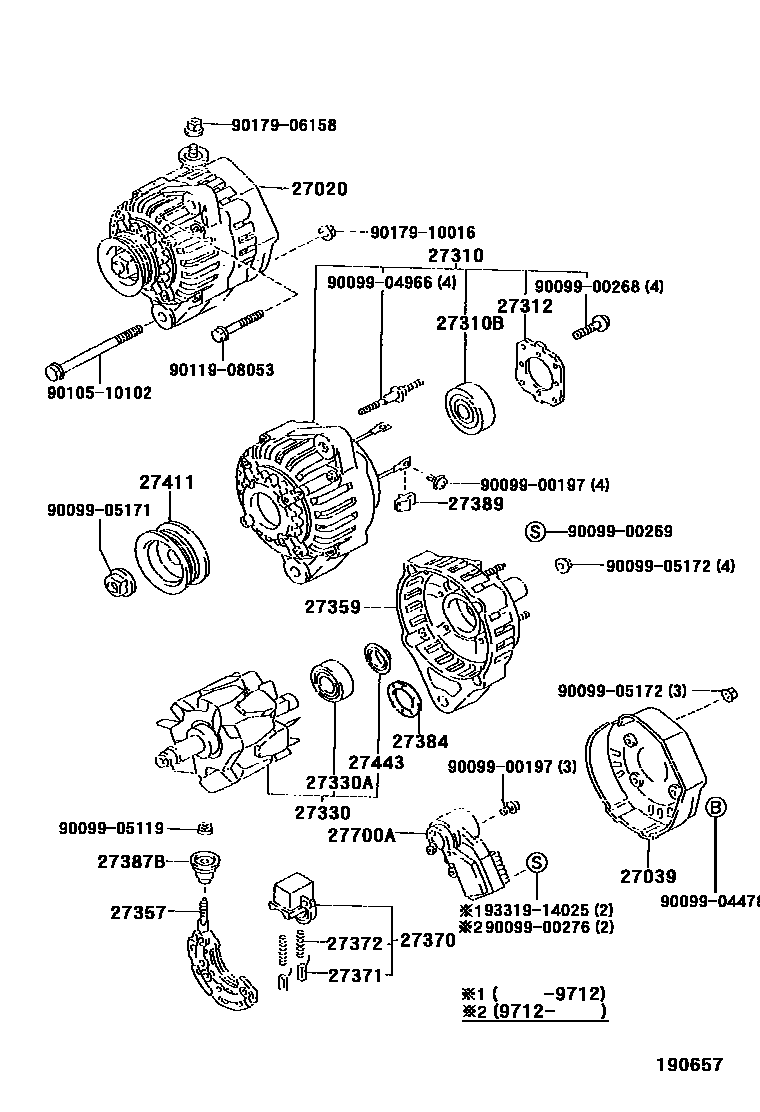

ALTERNATOR

27020ALTERNATOR ASSY

main27060-11320i4EFE..EP91199601

12V 55A

27039COVER, ALTERNATOR REAR END

main27039-16380i4EFE..EP91199712

main27039-73020i4EFE..EP91199601-199712

sub27039-16380

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-16181i4EFE..EP91199601

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10178i4EFE..EP91199601

27312PLATE, RETAINER

main27312-70200i4EFE..EP91199601

27330ROTOR ASSY, ALTERNATOR

main27330-11250i4EFE..EP91199605

main27330-72101i4EFE..EP91199601-199605

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i4EFE..EP91199601

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-13360i4EFE..EP91199712

main27357-63060i4EFE..EP91199601-199712

27359FRAME, ALTERNATOR RECTIFIER END

main27359-16181i4EFE..EP91199601-199712

main27359-16182i4EFE..EP91199712

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-58320i4EFE..EP91199601

27371BRUSH, ALTERNATOR

main27371-70300i4EFE..EP91199601

27372SPRING, ALTERNATOR BRUSH

main27372-63020i4EFE..EP91199601

sub27372-87501

27384WASHER

main27384-16380i4EFE..EP91199712

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-70170i4EFE..EP91199601-199709

main27387-70171i4EFE..EP91199709

27389INSULATOR, TERMINAL

main27389-63020i4EFE..EP91199601

27411PULLEY, ALTERNATOR

main27411-65010i4EFE..EP91199601

27443COVER, ALTERNATOR BEARING

main27443-63020i4EFE..EP91199601

27700AREGULATOR ASSY, GENERATOR

main27700-11070i4EFE..EP91199601

9009900197

main90099-00197

9009900268

main90099-00268

9009900269

main90099-00269

9009900276

main90099-00276

9009904478

main90099-04478

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9010510102

main90105-10102

9011908053

main90119-08053

9017906158

main90179-06158

9017910016

main90179-10016

9331914025

main93319-14025

32 parts on this diagram · 1 diagram in section
