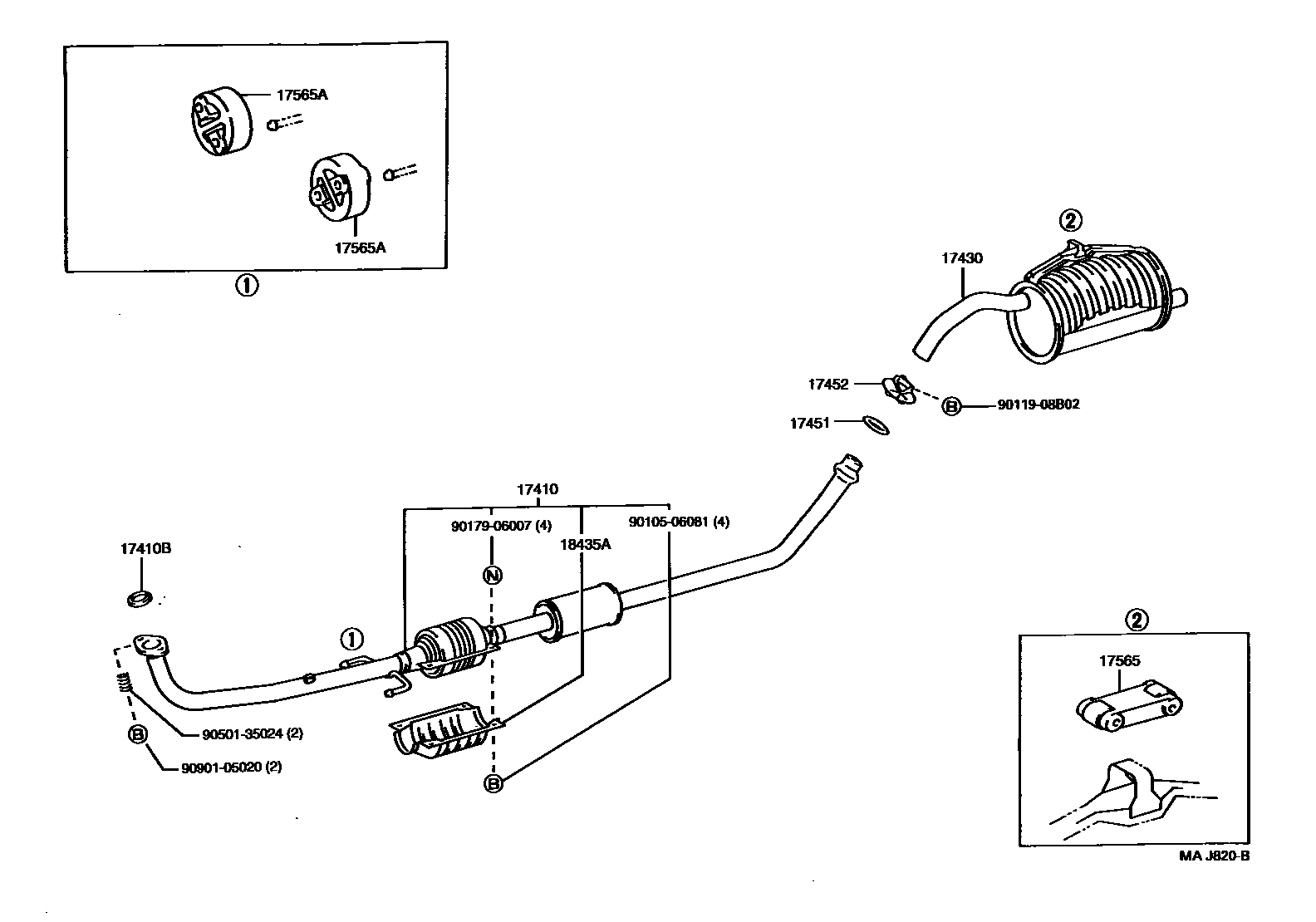

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-1B050i4EFE..EP91199601

17410BGASKET, EXHAUST PIPE

main17451-11010i4EFE..EP91199803

main90917-06080i4EFE..EP91199601-199803

17430PIPE ASSY, EXHAUST, TAIL

main17430-1B040i4EFE..EP91199601-199707

sub17430-1B041

main17430-1B041i4EFE..EP91199707

17451GASKET, EXHAUST PIPE

main90917-06081i4EFE..EP91199601

17452CLAMP, EXHAUST PIPE

main90461-15015i4EFE..EP91199601

17565SUPPORT, EXHAUST PIPE, NO.5

main17566-11150i4EFE..EP91199601

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-11160i4EFE..EP91199601

18435APROTECTOR, MONOLITHIC CONVERTER

main18435-11020i4EFE..EP91199601-199811

sub18435-11040

main18435-11030i4EFE..EP91199811

9010506081

main90105-06081

9011908B02

main90119-08B02

9017906007

main90179-06007

9050135024

main90501-35024

9090105020

main90901-05020

13 parts on this diagram · 1 diagram in section
