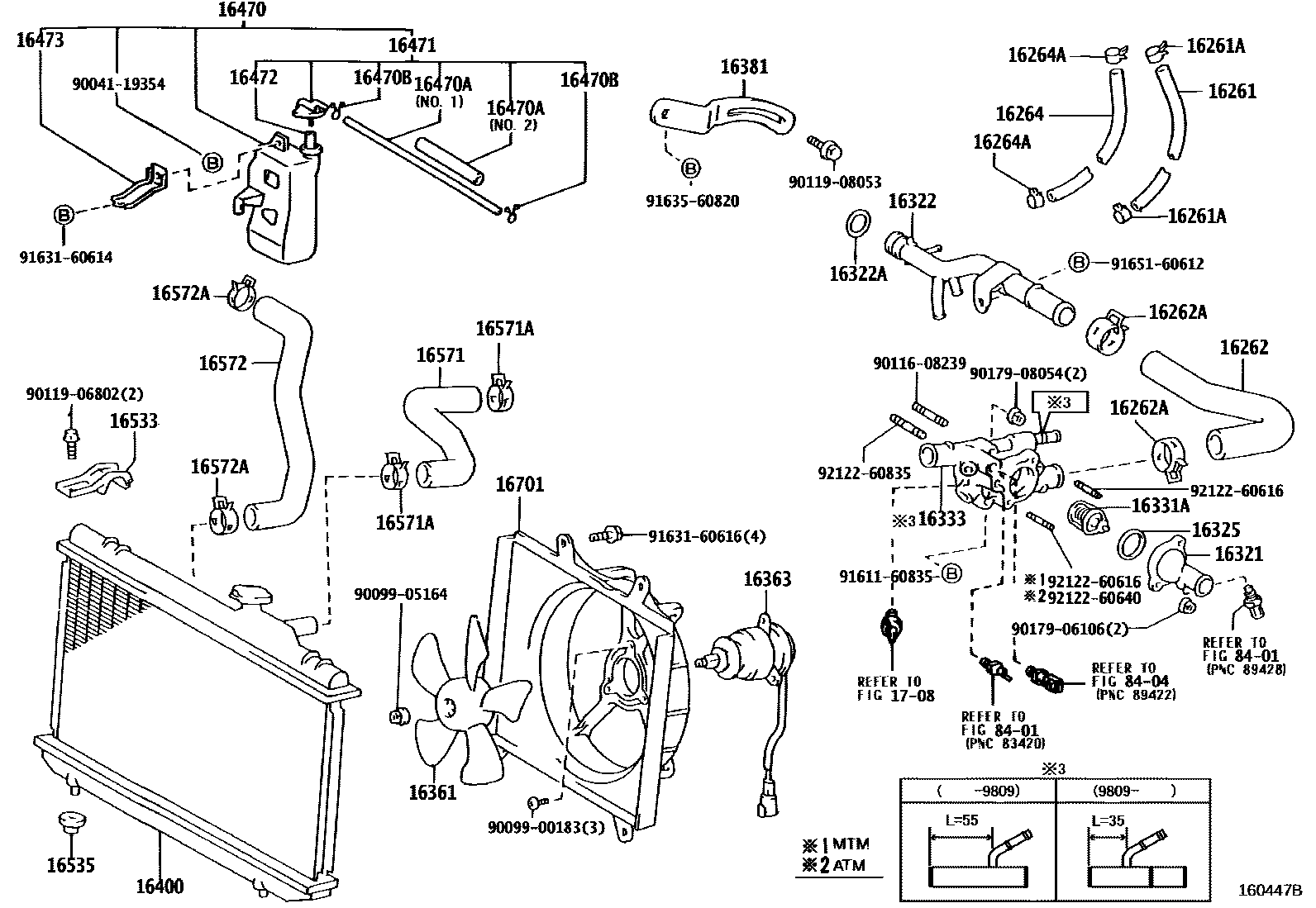

RADIATOR & WATER OUTLET

0001 1 0002 1

16261HOSE, WATER BY-PASS

main99555-00200i4EFE..EP91¥440199601

*H,L=190

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-11009i4EFE..EP91¥260199601

sub96135-51100¥130

16262HOSE, WATER INLET

main16262-10011i4EFE..EP91..5F¥820199601

main16262-10022i4EFE..EP91..3FC¥810199601

16262ACLIP(FOR WATER INLET HOSE)

main90467-34003i4EFE..EP91¥400199601

sub90467-34004¥390

16264HOSE, WATER BY-PASS, NO.2

main16264-11090i4EFE..EP91¥850199601

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-11009i4EFE..EP91¥260199601

sub96135-51100¥130

16321INLET, WATER

main16321-10011i4EFE..EP91..5F¥2,520199601

main16321-11011i4EFE..EP91..3FC¥2,530199601

16322PIPE, WATER INLET

main16322-11110i4EFE..EP91¥4,760199601

16322ARING, O(FOR WATER INLET)

main96761-35028i4EFE..EP91¥310199601

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63011i4EFE..EP91¥680199601

16331ATHERMOSTAT

main90916-03046i4EFE..EP91¥1,740199601

*WAX 82-95

16333HOUSING, WATER OUTLET

main16333-11210i4EFE..EP91¥8,500199601-199704

main16333-11211i4EFE..EP91¥7,100199704-199809

main16333-11260i4EFE..EP91199809

16361FAN

main16361-11010i4EFE..EP91¥4,500199601

16363MOTOR, COOLING FAN

main16363-11010i4EFE..EP91¥22,300199601

16381BAR, FAN BELT ADJUSTING

main16381-11030i4EFE..EP91¥680199601

16400RADIATOR ASSY

main16400-11350i4EFE..EP91..5F¥28,800199601-199712

main16400-11681i4EFE..EP91..3FC¥41,600199601-199712

sub16400-1B020¥41,600

main16400-11850i4EFE..EP91..5F¥32,600199712

main16400-1B020i4EFE..EP91..3FC¥41,600199712

16470TANK ASSY, RADIATOR RESERVE

main16470-11110i4EFE..EP91¥2,890199601

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16477-11110i4EFE..EP91199601

L=100,NO.2

main90445-12078i4EFE..EP91¥580199601

L=600(*H,L=350),NO.1

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90466-11002i4EFE..EP91¥0199712

main90467-11085i4EFE..EP91¥100199601-199712

16471CAP SUB-ASSY, RESERVE TANK

main16405-11110i4EFE..EP91199601

16472HOSE, BREATHER

main90445-12078i4EFE..EP91¥580199601

*H,L=240

16473SUPPORT(FOR RADIATOR RESERVE TANK)

main16473-11110i4EFE..EP91¥1,330199601

16533SUPPORT, RADIATOR, UPPER

main16505-11240i4EFE..EP91..5F¥1,340199601

main16533-11100i4EFE..EP91..3FC¥3,620199601

16535SUPPORT, RADIATOR, LOWER

main90480-23008i4EFE..EP91..5F¥190199601

main90916-04004i4EFE..EP91..3FC¥580199601

16571HOSE, RADIATOR, INLET

main16571-11250i4EFE..EP91¥1,620199601

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-31003i4EFE..EP91¥240199601

16572HOSE, RADIATOR, OUTLET

main16572-11270i4EFE..EP91..5F¥1,830199601-199712

sub16572-11271¥1,830

main16572-11271i4EFE..EP91..5F¥1,830199712

main16572-11280i4EFE..EP91..3FC¥1,760199601

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-31003i4EFE..EP91¥240199601

16701SHROUD SUB-ASSY, FAN

main16711-11140i4EFE..EP91¥7,000199601

1708

8401

8404

9004119354

main90041-19354

9009900183

main90099-00183

9009905164

main90099-05164¥0

9011608239

main90116-08239¥240

9011906802

main90119-06802¥60

9011908053

main90119-08053¥130

9017906106

main90179-06106¥120

9017908054

main90179-08054¥100

9161160835

main91611-60835¥90

9163160614

main91631-60614¥120

9163160616

main91631-60616¥120

9163560820

main91635-60820¥130

9165160612

main91651-60612¥90

9212260616

main92122-60616¥130

9212260640

main92122-60640¥170

9212260835

main92122-60835¥160
