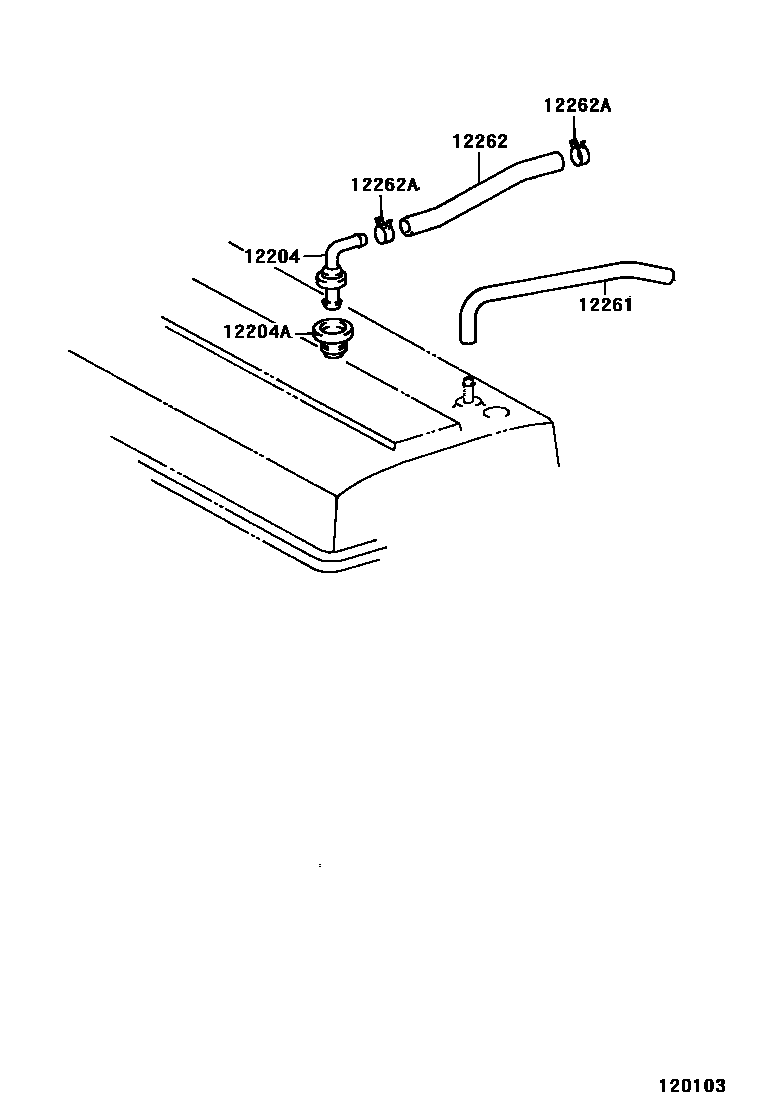

VENTILATION HOSE

12204VALVE SUB-ASSY, VENTILATION

main12204-11040i4EFE..EP91199601

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-18006i4EFE..EP91199601

12261HOSE, VENTILATION

main12261-11180i4EFE..EP91199601

12262HOSE, VENTILATION, NO.2

main12262-11050i4EFE..EP91199601

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-14001i4EFE..EP91199601

5 parts on this diagram · 1 diagram in section
