STANDARD TOOL

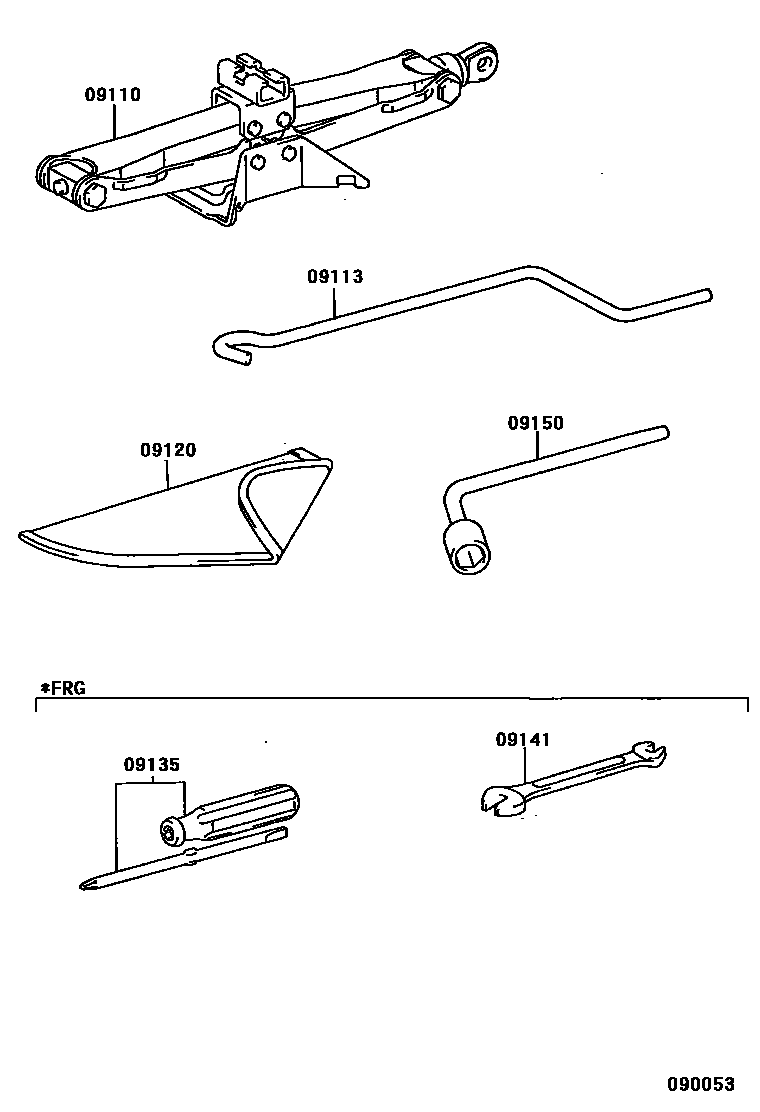

Parts diagram
09110JACK ASSY
main09111-10050i199601
09113HANDLE, JACK
main09113-20030i199601
sub09113-20050
09120BAG, TOOL
main09120-10040i199609
main09120-10050i199609
*FRG
main09120-30050i199601-199609
09135DRIVER, SCREW
main99915-10700i199601
*FRG
09141SPANNER
main99914-10810i199601
8 X 10,*FRG
09150WRENCH, HUB NUT BOX
main09150-40010i199601

6 parts on this diagram · 1 diagram in section
