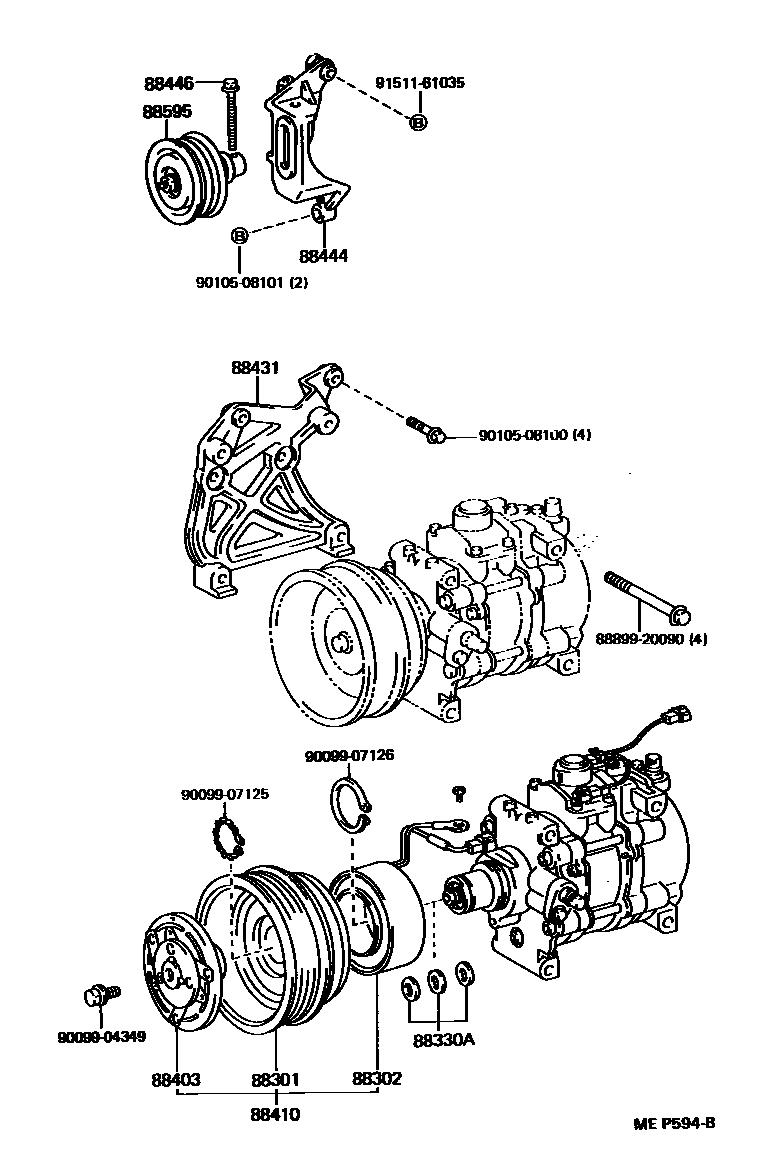

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-10150iEP8#..LHD198912-199312

main88412-16080iEP81..LHD199312-199601

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-16050iEP8#..LHD199201-199312

main88411-1A040iEP81..LHD199312-199601

main88411-60030iEP8#..LHD..CBR198912-199201

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iEP8#..LHD..CBR198912-199601

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16011iEP8#..LHD..CBR198912-199312

main88403-1A010iEP81..LHD199312-199601

88410CLUTCH ASSY, MAGNET

main88410-10220iEP8#..LHD..CBR198912-199201

main88410-10280iEP81..LHD199312-199601

main88410-16090iEP8#..LHD199201-199312

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-16060iEP8#..LHD198912-199601

88444BRACKET, IDLE PULLEY

main88444-10021iEP80..LHD198912-199212

main88444-10031iEP81..LHD..CBR198912-199601

88446BOLT, IDLE PULLEY

main88446-12030iEP8#..LHD..CBR198912-199601

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-16050iEP81..LHD199408-199601

main88440-17010iEP8#..LHD..CBR198912-199408

8889920090COVER, EVAPORATOR

main88899-20090

9009904349

main90099-04349

9009907125

main90099-07125

9009907126

main90099-07126

9010508100

main90105-08100

9010508101

main90105-08101

9151161035

main91511-61035

16 parts on this diagram · 2 diagrams in section
