HEATING & AIR CONDITIONING - WATER PIPING

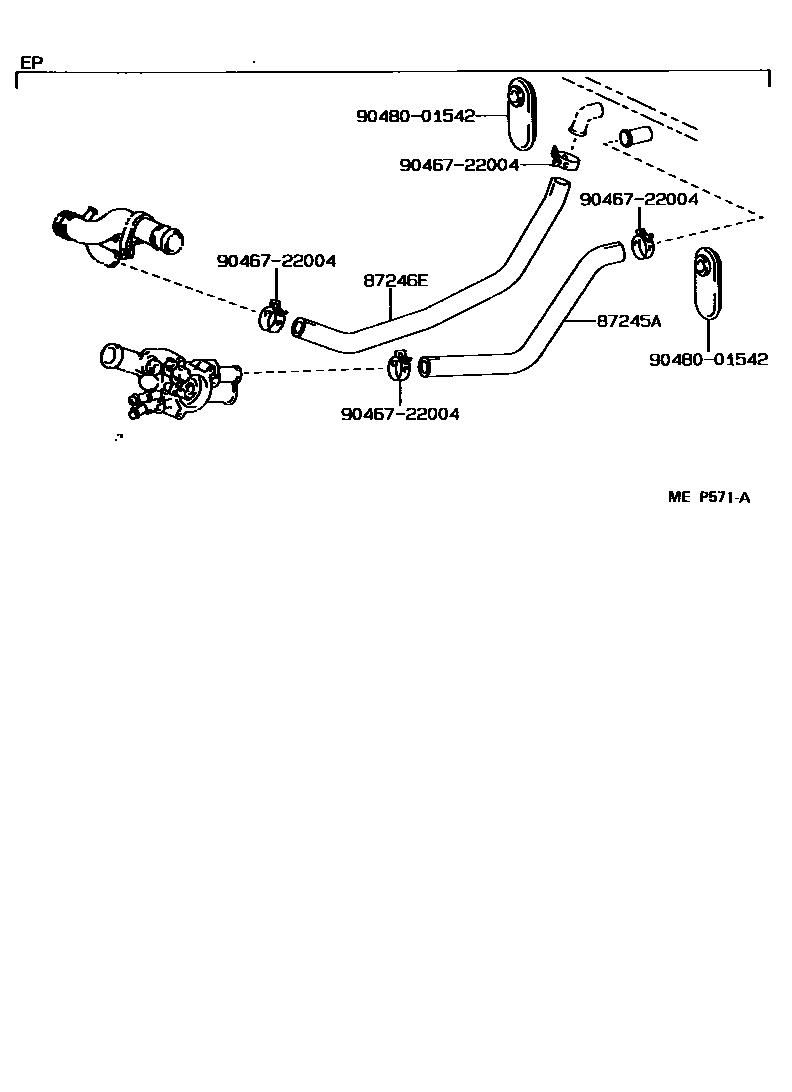

Parts diagram

87245AHOSE, HEATER WATER, INLET A

main87245-10490i¥1,550198912-199601

main87245-10530i¥1,610198912-199601

main87245-10550i¥1,430198912-199601

87246EHOSE, HEATER WATER, OUTLET E

main87245-10500i¥2,330198912-199601

main87245-10540i¥1,970198912-199405

main87245-10541i¥1,890199405-199601

main87245-10560i¥1,810198912-199601

9046722004

main90467-22004¥330

9048001542

main90480-01542¥300

4 parts on this diagram · 2 diagrams in section
