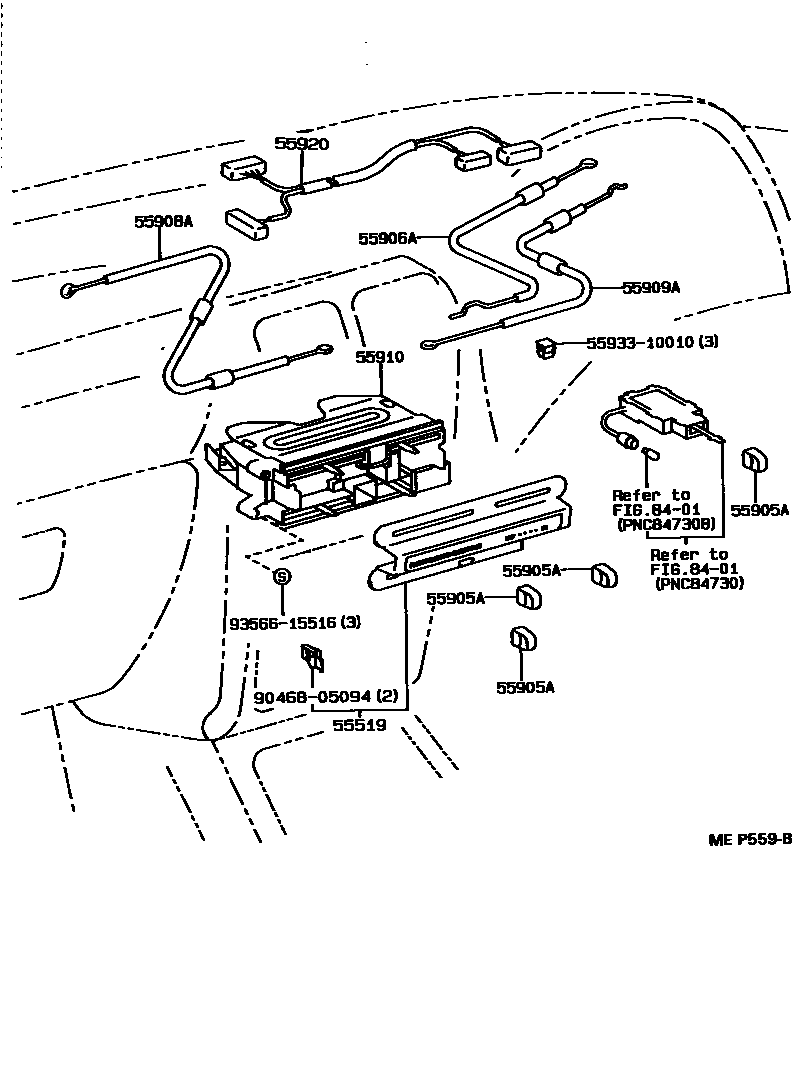

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL 0002 1BOOST VENTILATOR CONTROL 0003 1AIR DUCT

55519PLATE, HEATER CONTROL NAME

main55519-10130iEP8#..RHD198912-199601

main55519-10170iEP8#,NP80..LHD198912-199601

main55519-10180iEP81..5D..3FC;EP81..LHD..3D..XLI;EP8#..LHD..(S,SI,STD,XL)199201-199601

W(BOOST VENTILATOR)

main55519-10180iEP8#..LHD..CBR198912-199201

W(HEAVY HEATER)

main55519-10210iEP8#..LHD198912-199601

W(AIR CONDITIONER)

sub55519-10170

55905AKNOB, HEATER CONTROL

main55905-10130iEP8#..RHD;EP81,NP80..DSL,EFI199004-199601

*IPM(*FRG OR UNITED KINGDOM SPEC)

sub55905-12080

main55905-10130iEP8#..RHD;EP81,NP80..DSL,EFI199004-199405

*IPM(*FRG OR UNITED KINGDOM SPEC) OR *IPM(CANARY ISLAND SPEC)

sub55905-12080

main55905-10130iEP8#..LHD..CBR199004-199601

*IPM(*FRG OR UNITED KINGDOM SPEC) & W(BOOST VENTILATOR)

sub55905-12080

main55905-12080iEP80..LHD..5D;EP80..3D..STD;EP81..LHD..CBR;EP80..3D..5F..XL198912-199004

*IPM(*FRG OR UNITED KINGDOM SPEC)

main55905-12080iEP80..LHD..5D;EP80..3D..STD;EP81..LHD..CBR;EP80..3D..5F..XL198912-199004

*IPM(*FRG OR UNITED KINGDOM SPEC) & W(BOOST VENTILATOR)

main55905-12080iEP80..LHD..5D;EP80..3D..STD;EP81..LHD..CBR;EP80..3D..5F..XL198912-199004

*IPM(*FRG OR UNITED KINGDOM SPEC) OR *IPM(CANARY ISLAND SPEC)

main55905-89115iEP80..LHD;EP81..S,SI,XL;EP81..3D..3FC;EP81..LHD..5D..EFI198912-199601

W(BOOST VENTILATOR)

main55905-89115iEP8#,NP80198912-199601

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-10170iEP8#,NP80198912-199601

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-10090iEP8#..RHD198912-199601

main55908-10100iEP8#,NP80..LHD198912-199601

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-10080iEP8#..RHD198912-199601

main55909-10090iEP8#,NP80..LHD198912-199601

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-10310iEP8#..RHD198912-199601

main55910-10330iEP8#,NP80..LHD198912-199601

main55910-10340iEP8#..LHD..CBR198912-199201

W(HEAVY HEATER)

main55910-10340iEP81..LHD199201-199601

W(BOOST VENTILATOR)

main55910-10420iEP8#..LHD..CBR199201-199212

W(BOOST VENTILATOR & DEALER OPTION)

sub55910-10330

main55910-10420iEP8#..LHD..CBR198912-199201

W(HEAVY HEATER & DEALER OPTION---BOOST VENTILATOR)

sub55910-10330

55920HARNESS ASSY, HEATER CONTROL SUB WIRE

main55920-10020iEP8#..RHD198912-199601

main55920-10030iEP8#..LHD198912-199312

W(AIR CONDITIONER)

main55920-10031iEP81..LHD199312-199601

MANUAL *AIC---*LHC OR DEALER OPT

main55920-10040iEP8#..LHD..CBR199201-199212

W(BOOST VENTILATOR & DEALER OPTION)

main55920-10040iEP8#..LHD..CBR198912-199201

W(HEAVY HEATER & BOOST VENTILATOR)

main55920-10040iEP8#,NP80..LHD198912-199601

8401

5593310010GUIDE, LEVER, NO.2

main55933-10010

9046805094

main90468-05094

9356615516

main93566-15516

11 parts on this diagram · 3 diagrams in section
