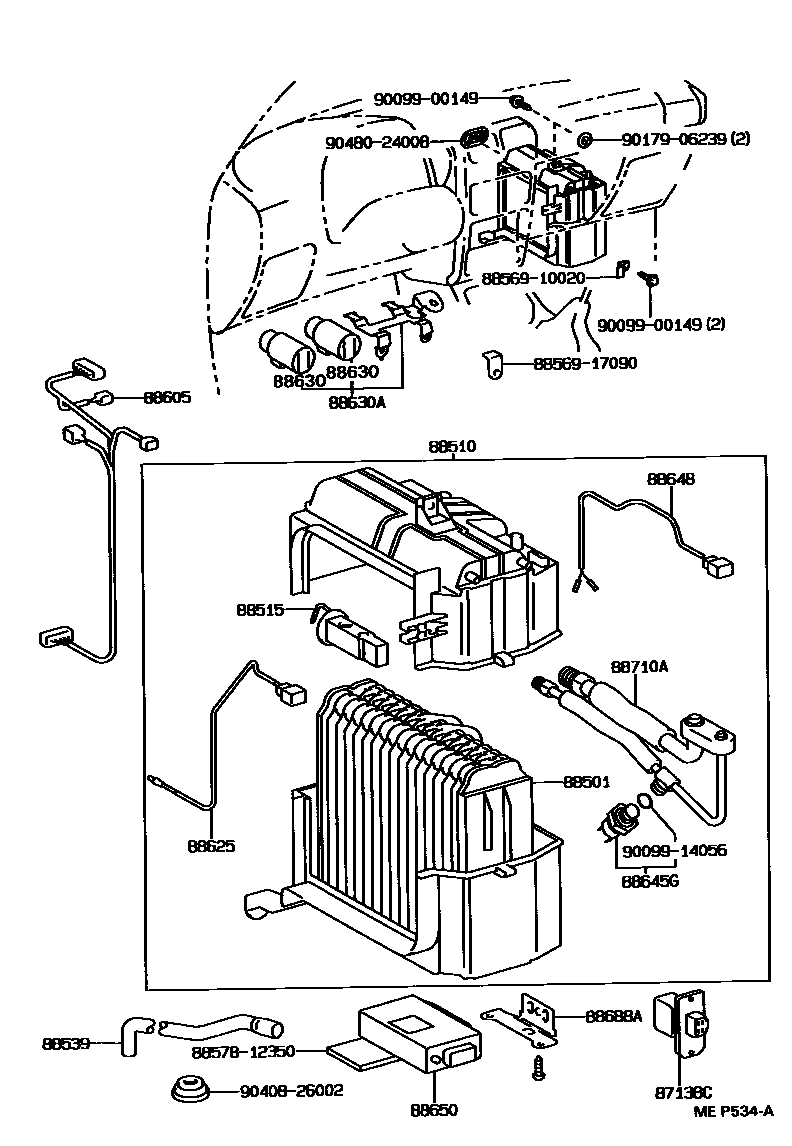

HEATING & AIR CONDITIONING - COOLER UNIT
87138CRESISTOR, BLOWER
88510UNIT ASSY, COOLER
88539HOSE, COOLER UNIT DRAIN, NO.1
88605HARNESS SUB-ASSY, COOLER WIRING, NO.1
W(BOOST VENTILATOR)
W(BOOST VENTILATOR)
88625THERMISTOR, COOLER, NO.1
88630RELAY ASSY, COOLER
88630ARELAY ASSY, COOLER
88645GSWITCH, PRESSURE
sub88645-30281
88648WIRING, COOLER, NO.1
88650AMPLIFIER ASSY, COOLER STABILIZER
W(BOOST VENTILATOR)
MANUAL *AIC---*LHC
MANUAL *AIC---*LHC
MANUAL *AIC---*LHC OR DEALER OPT
*LHC
88688ABRACKET, COOLER STABILIZER AMPLIFIER
88710ATUBE ASSY, AIR CONDITIONER
8856910020CLAMP (FOR COOLER RELAY)
main88569-10020
8856917090CLAMP (FOR COOLER RELAY)
main88569-17090
8857812350PAKING, COOLER AIR DUCT
main88578-12350
9009900149
main90099-00149
9009914056
main90099-14056
9017906239
main90179-06239
9040826002
main90408-26002
9048024008
main90480-24008
22 parts on this diagram · 1 diagram in section
