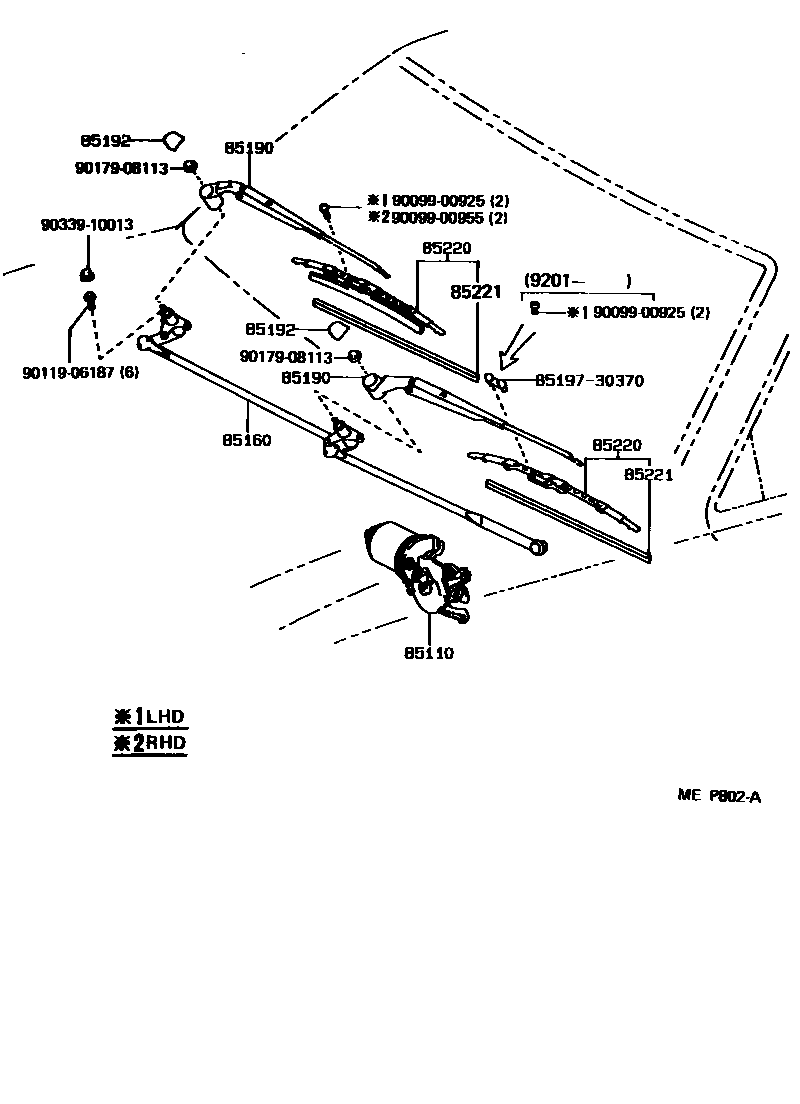

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-10360iEP8#..RHD198912-199601

sub85110-10330

main85110-10370iEP8#,NP80..LHD198912-199601

85160LINK ASSY, WINDSHIELD WIPER

main85150-10350iEP8#..RHD198912-199103

main85150-10351iEP8#..RHD199103-199601

main85150-10360iEP8#,NP80..LHD198912-199103

main85150-10361iEP8#,NP80..LHD199103-199601

85190ARM ASSY, WINDSHIELD WIPER

main85210-10100iEP8#..RHD198912-199201

main85211-10090iEP8#,NP80..LHD198912-199201

RH

main85211-10091iEP8#,NP80..LHD199201-199601

RH

main85211-10100iEP8#..RHD198912-199201

RH

main85211-10101iEP8#..RHD199201-199601

RH

main85221-10080iEP8#..RHD198912-199201

LH

main85221-10100iEP8#,NP80..LHD198912-199201

LH

main85221-10101iEP8#,NP80..LHD199201-199601

LH

main85221-10111iEP8#..RHD199201-199601

LH

85192COVER, WINDSHIELD WIPER ARM

main85192-12800×2iEP8#,NP80198912-199601

85220BLADE ASSY, WINDSHIELD WIPER

main85212-10080iEP8#..RHD198912-199201

RH

main85212-10110iEP8#..RHD199201-199601

RH

main85212-10120iEP8#,NP80..LHD199201-199206

RH

main85220-12671iEP8#,NP80..LHD198912-199201

RH

main85222-10180iEP8#..RHD198912-199409

LH

main85222-10190iEP8#,NP80..LHD198912-199201

LH

main85222-10210iEP8#,NP80..LHD199201-199601

LH

main85222-10220iEP81..RHD199409-199601

LH

85221BLADE, WINDSHIELD WIPER

main85221-12230iEP81..RHD199409-199601

LH

sub85214-12H90

main85221-32050iEP8#..RHD198912-199601

RH

sub85214-24H90

main85221-89106iEP8#,NP80..LHD198912-199601

RH

sub85214-12H90

main85223-10180iEP8#..RHD198912-199409

LH

sub85214-12H90

8519730370

main85197-30370

9009900925

main90099-00925

9009900955

main90099-00955

9011906187

main90119-06187

9017908113

main90179-08113

9033910013

main90339-10013

12 parts on this diagram · 1 diagram in section
