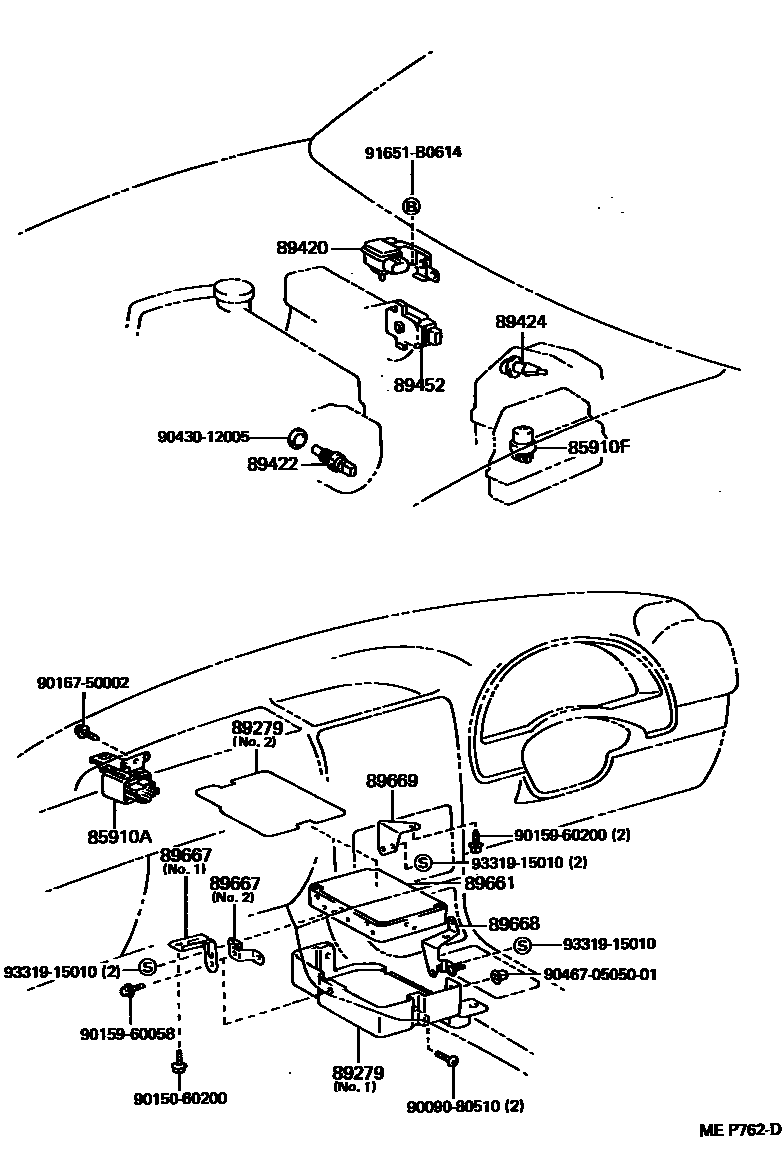

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-10010iEP81..EFI198912-199601

main85910-10020iEP81..LHD..EFI199002-199601

85910FRELAY, COMPUTER (FOR EFI)

main90987-02004iEP81..EFI198912-199201

main90987-02009iEP81..EFI199201-199601

89279COVER, ENGINE CONTROL COMPUTER

main89279-10030iEP81..RHD199201-199601

NO.1

main89279-10040iEP81..LHD..EFI199201-199601

NO.1

main89279-10040iEP81..EFI198912-199201

main89279-10050iEP81..RHD199201-199601

NO.2

main89279-10060iEP81..LHD..EFI199201-199601

NO.2

89420SENSOR ASSY, VACUUM

main89420-10010iEP81..EFI198912-199405

main89420-10040iEP81199405-199601

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iEP81..EFI198912-199601

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iEP81..EFI198912-199601

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-10010iEP81..EFI199201-199601

main89452-32020iEP81..EFI198912-199201

89661COMPUTER, ENGINE CONTROL

main89661-10050iEP81..EFI198912-199106

main89661-10090iEP81..EFI199106-199201

main89661-10130iEP81..EFI199201-199405

main89661-10150iEP81199405-199601

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-10020iEP81..RHD199201-199601

NO.1

main89667-10030iEP81..LHD..EFI198912-199601

main89667-10040iEP81..RHD199201-199601

NO.2

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-10030iEP81..LHD..EFI198912-199601

main89668-10040iEP81..RHD199201-199601

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-10010iEP81..RHD199201-199601

main89669-10020iEP81..LHD..EFI198912-199601

9009080510

main90090-80510

9015060200

main90150-60200

9015960058

main90159-60058

9015960200

main90159-60200

9016750002

main90167-50002

9043012005

main90430-12005

904670505001

main90467-0505001

91651B0614

main91651-B0614

9331915010

main93319-15010

20 parts on this diagram · 2 diagrams in section
