METER

0001 1W/O(TACHOMETER) 0002 1W(TACHOMETER) 0003 1 0004 1 0005 1 0006 1 0007 1

83100BBULB, COMBINATION METER, NO.1

main83109-10010iEP81..LHD..(STD,XLI)199201-199405

12V 1.4W,ORANGE CAP

main83109-10020×2iEP8#,NP80..GL,GLI,STD,XL,XLI199201-199601

14V 3.4W,GREEN CAP

main83109-16010iEP81..LHD..(STD,XLI)199201-199405

14V 1.4W,GREEN CAP

main83119-32010iEP81..GLI,XL,XLI199201-199601

14V 3.0W

main90981-11018×11iEP8#..RHD199201-199601

12V 1.2W W/O SOCKET

main99132-12034×5iEP81..XLI198912-199201

12V 3.4W

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×2iEP8#,NP80..GL,GLI,STD,XL,XLI199201-199601

BULB:14V 3.4W

main83101-14040×11iEP80..LHD..XL198912-199201

BULB:12V 1.4W

main83101-24010iEP81..GLI,XL,XLI199201-199601

BULB:14V 3.0W

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83149-10130iEP81..LHD..(GL,XL)198912-199201

W(TACHOMETER)

main83149-10150iEP81..LHD..(GL,XL)198912-199201

W(*66 & *TAC & ECONO METER) OR W(*TAC & ECONO METER)

main83149-10190iEP81..(3FC,5F)..XLI198912-199201

W(*66 & *TAC & ECONO METER) OR W(*TAC & ECONO METER)

main83149-10330iEP80..RHD199106-199201

main83149-10350iEP8#..LHD..(GL,XL)198912-199201

W(*66)

main83149-10370iEP8#..LHD..(GL,XL)198912-199201

W(*66 & ECONO METER)

main83149-10390iEP8#..LHD..(GL,XL)198912-199201

main83149-10410iEP8#..LHD..(GL,XL)198912-199201

W(ECONO METER)

main83149-10430iEP81..STD,XLI198912-199201

main83149-10450iEP81..(3FC,5F)..(STD,XLI)198912-199201

W(ECONO METER)

main83149-10470iEP81..(3FC,5F)..(STD,XLI)198912-199201

W(*66 & ECONO METER)

main83149-10490iNP80198912-199201

main83149-10690iEP81..GLI,XL,XLI199201-199601

W(TACHOMETER)

main83247-1M090iNP80199201-199601

main83247-1M150iEP8#..GL,GLI,STD,XL,XLI199201-199601

83103PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2

main83247-1E720iEP81..LHD..(STD,XLI)199201-199405

83109BULB, COMBINATION METER, NO.2

main83109-10010iEP81..(3FC,5F)..XLI;EP8#..LHD..(GL,STD,XL)198912-199201

12V 1.4W,ORANGE CAP

main83109-14030×4iEP81..LHD..(GL,XL)198912-199201

12V 3.4W,AMBER CAP

main83109-16010iEP81..(3FC,5F)..XLI;EP8#..LHD..(GL,STD,XL)198912-199201

14V 1.4W,GREEN CAP

main83109-20010×2iEP80,NP80;EP81..LHD..(GL,STD,XL,XLI)199106-199201

14V 1.4W,BLUE CAP

main83109-24010iEP81..GLI,S,SI,XL,XLI199201-199601

12V 1.4W,GREEN CAP

main83109-24020×4iEP81..(3FC,5F)..XLI198912-199201

12V3.4W W(GREEN CAP)

83110SPEEDOMETER ASSY

main83110-10870iEP80..RHD199106-199201

main83110-10880iEP80..STD198912-199201

main83110-10890iEP8#..LHD..(GL,XL)198912-199201

main83110-1C010iEP81..(3FC,5F)..XLI198912-199201

W(*66 & ECONO METER)

main83110-1C030iEP81..LHD..(GL,XL)198912-199201

W(TACHOMETER)

main83110-1C040iEP81..XLI198912-199201

W(TACHOMETER)

main83110-1C080iEP81..S,SI199201-199601

W(TACHOMETER)

main83110-1C090iEP81..RHD199201-199601

W(TACHOMETER)

main83110-1C140iEP8#,NP80..LHD..(STD,XL,XLI)199201-199601

main83110-1C150iEP8#..RHD199201-199601

main83110-1C480iEP81..LHD..XLI199309-199601

W(*TAC & ECONO METER)

83132CASE, COMBINATION METER

main83132-1C070iEP81..XLI198912-199201

W(TACHOMETER)

main83132-1C210iEP80..GL,XL;EP81..LHD..(GL,XL)199106-199201

main83132-1C230iEP8#..LHD..(GL,XL)198912-199201

W(*66)

main83132-1C250iEP81..STD,XLI198912-199201

W(*66 & ECONO METER)

main83132-1C270iNP80198912-199201

main83132-1C290iEP81..(3FC,5F)..(STD,XLI)198912-199201

W(ECONO METER)

main83132-1C470iEP81..XL199201-199212

W(TACHOMETER)

main83132-1C490iEP81..GLI,XLI199201-199405

W(TACHOMETER)

main83132-1C590iEP8#..(GL,STD,XL)..CBR199201-199212

main83132-1C610iEP81..GLI,STD,XLI199201-199405

main83132-1C630iNP80199201-199601

main83132-1C810iEP81..XLI199405-199601

main83132-1M050iEP81..XLI199405-199601

W(TACHOMETER)

83133PLATE, COMBINATION METER, NO.1

main83133-10790iEP81..S,SI198912-199201

W(TACHOMETER)

main83133-10830iEP8#,NP80..GL,STD,XL,XLI198912-199106

main83133-10850iEP8#,NP80..GL,GLI,STD,XL,XLI199201-199601

main83133-1C010iEP81..GLI,XL,XLI199201-199601

W(TACHOMETER)

83138GLASS, SPEEDOMETER

main83138-10430iEP81..LHD..(GL,XL,XLI)198912-199201

W(TACHOMETER)

main83138-10450iEP80..STD198912-199201

main83138-10470iEP80..GL,XL;EP81,NP80..LHD..(GL,STD,XL,XLI)199106-199201

main83138-10490iEP81..GLI,XL,XLI199201-199601

W(TACHOMETER)

83146ACOVER, SPEEDMETER

main83146-30830×5iEP8#..GL,STD,XL,XLI198912-199106

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-10430iEP81..S,SI198912-199201

W(TACHOMETER)

main83243-10490iEP8#..GL,XL198912-199106

main83243-10530iEP8#..LHD..(GL,XL)198912-199201

W(*66)

main83243-10550iEP80..LHD..XL;EP81..(3FC,5F)..XLI;EP81..LHD..(GL,STD,XL)198912-199201

W(*66 & ECONO METER)

main83243-10570iEP80..LHD..XL;EP81..(3FC,5F)..XLI;EP81..LHD..(GL,STD,XL)198912-199201

W(ECONO METER)

main83243-10590iNP80198912-199201

main83243-10690iEP8#,NP80..GL,GLI,STD,XL,XLI199201-199405

main83243-10750iEP81..LHD..(STD,XLI)199201-199405

W(ECONO METER)

main83243-10770iEP81..GLI,XL,XLI199201-199601

W(TACHOMETER)

main83243-10830iEP81,NP80..XL,XLI199405-199601

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83244-10250iEP81..S,SI198912-199201

W(TACHOMETER)

main83244-10270iEP8#..GL,STD,XL,XLI198912-199106

main83244-10310iNP80198912-199201

main83244-10330iEP8#,NP80..GL,GLI,STD,XL,XLI199201-199601

main83244-10370iEP81..GLI,XL,XLI199201-199601

W(TACHOMETER)

83247BPLATE, METER CIRCUIT, NO.2

main83247-1E720iEP81..(3FC,5F)..XLI;EP8#..LHD..(GL,STD,XL)198912-199201

9009300416

main90093-00416

9009900225

main90099-00225

9009900917

main90099-00917

9009900929

main90099-00929

9014950032

main90149-50032

9016750002

main90167-50002

9354014020

main93540-14020

9411540400

main94115-40400

9451100400

main94511-00400

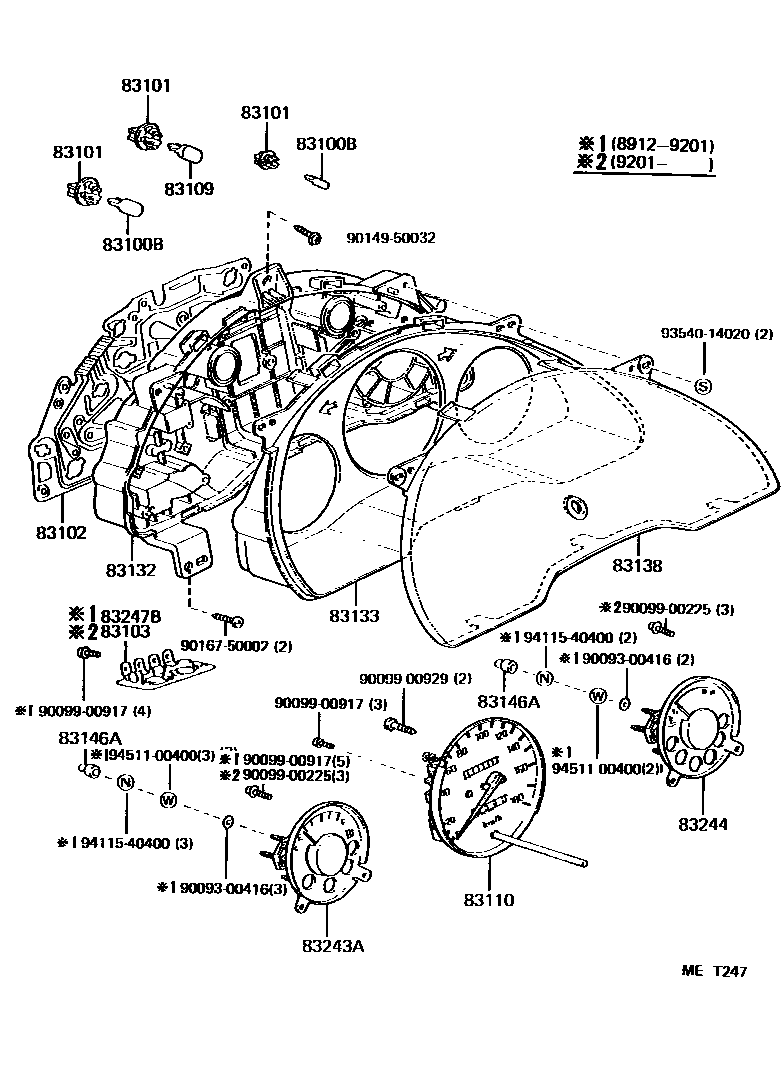

22 parts on this diagram · 7 diagrams in section
