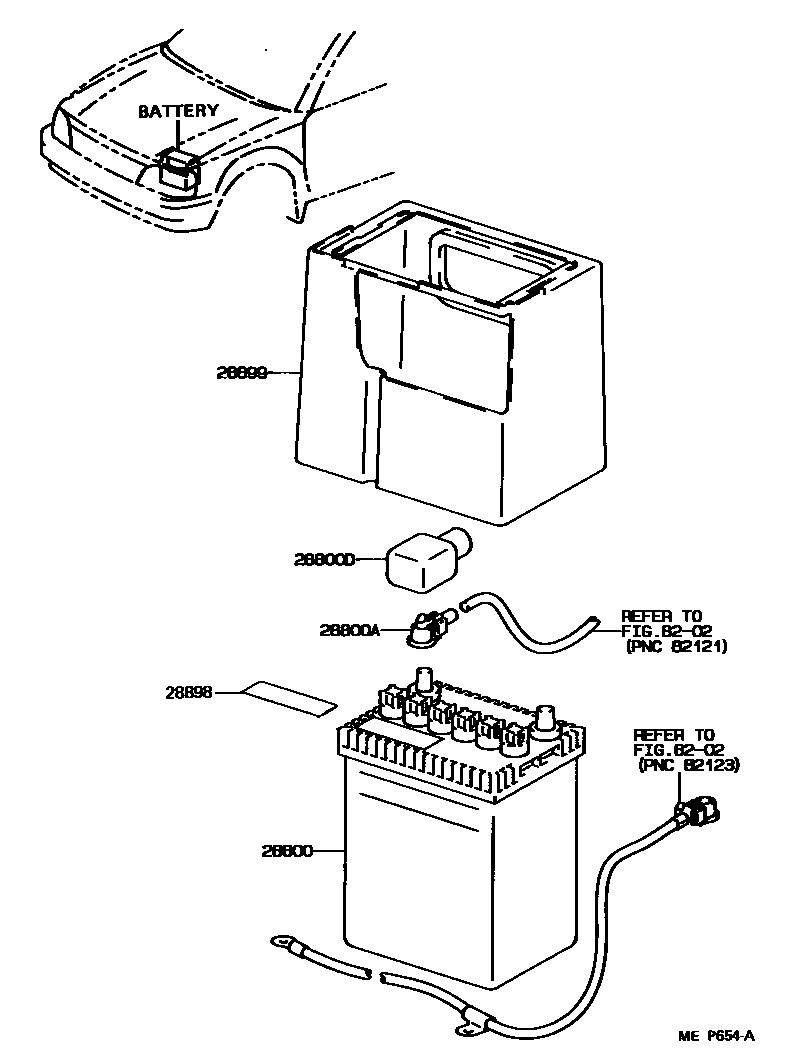

BATTERY & BATTERY CABLE

28800BATTERY

main28800-13110i1E,2E..EP8#198912-199201

28B19R(S)

sub28800-13160

main28800-13160i1E,2E..EP8#198912-199212

34B19R

sub28800-13170

main28800-31010i2EE..EP81..5F199201-199601

32C24L

sub28800-20060

main28800-31021i2EE..EP81..5F199007-199201

32C24L

sub28800-31010

main28800-31031i2EE..EP81198912-199007

32C24L

sub28800-31021

main28800-33071i1E,2E..EP8#198912-199007

32C24R

sub28800-33101

main28800-33090i1E,2E..EP8#199201-199212

32C24R

sub28800-47090

main28800-33101i1E,2E..EP8#199007-199201

32C24R

sub28800-33090

main28800-54200i1N..NP80198912-199101

80D26L,GS

sub28800-64130

main28800-64010i1N..NP80199201-199601

55D23L

sub28800-42041

main28800-64030i1E,2E..EP8#;2EE..EP81..MTM198912-199601

55D20L

sub28800-70070

main28800-64130i1N..NP80198912-199601

80D26L

sub28800-64132

main28800-64130i1N..NP80199101-199201

80D26L,YUASA

sub28800-64132

28800ATERMINAL, BATTERY POSITIVE

main90982-05030i1N..NP80198912-199601

main90982-05046i1E,2E#..EP8#198912-199201

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-10020i1E,2E#..EP8#198912-199601

main82821-16050i1N..NP80199201-199601

main82821-24010i1N..NP80198912-199201

28898PLATE, BATTERY

main28898-46010i2EE..EP81..LHD199405-199601

NORWAY SPEC

main28898-50070i2EE..EP81..LHD..5F;2EE..EP81..3D..3FC199110-199405

NORWAY SPEC

28899INSULATOR, BATTERY

main28899-11070i1E,2E..EP8#..LHD199107-199212

32C24R BATTERY

main28899-70030i1E,2E..EP8#..LHD198912-199212

50D26L BATTERY

main28899-74050i2E..EP81..LHD;1E..EP80..LHD..5D;1E..EP80..3D..STD;1E..EP80..3D..5F..XL198912-199212

main28899-74080i1E,2E..EP8#..LHD198912-199107

32C24R BATTERY

sub28899-11070

8202

6 parts on this diagram · 1 diagram in section
