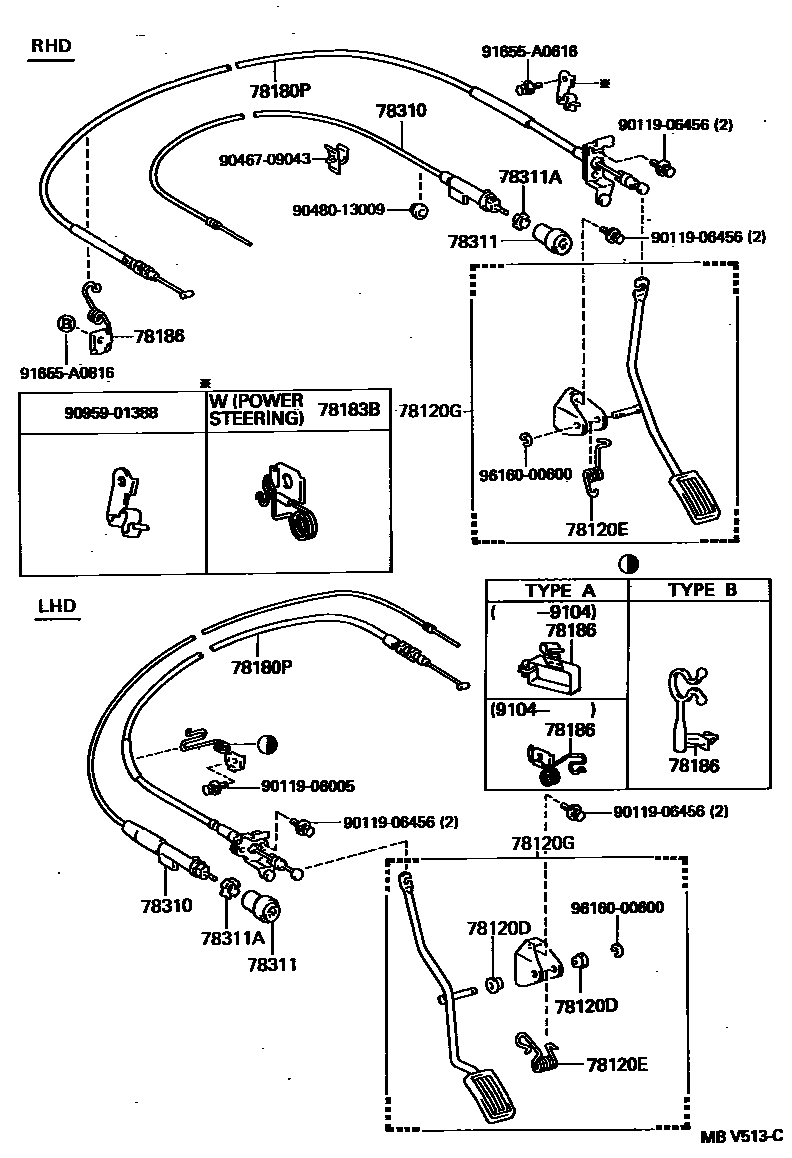

ACCELERATOR LINK

0001 1 0002 1

78120DGROMMET (FOR ACCELERATOR LINK ROD)

main90386-08003iEP8#,NP80..LHD¥140198912-199601

78120ESPRING, TENSION (FOR ACCELERATOR LINK ROD)

main90508-20111iEP8#,NP80..LHD¥190198912-199601

main90508-21005iEP8#..RHD¥270198912-199601

78120GROD ASSY, ACCELERATOR PEDAL

main78120-10050iEP8#..RHD¥3,030198912-199601

main78120-10070iEP8#,NP80..LHD¥3,650198912-199601

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-10410iEP80..RHD¥4,270198912-199212

main78180-10450iEP81..LHD..EFI¥4,270198912-199601

main78180-10460iEP81..RHD¥3,910198912-199201

main78180-10470iEP81..LHD..CBR¥4,430198912-199212

main78180-10540iNP80¥3,910198912-199202

sub78180-10541¥3,910

main78180-10541iNP80¥3,910199202-199601

main78180-10550iEP81..RHD¥5,100199201-199601

main78180-10570iEP80..LHD¥4,410198912-199212

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-10060iEP81..RHD¥550199405-199506

sub78183-10061¥550

main78183-10061iEP81..RHD¥550199506-199601

main78183-10070iNP80¥550198912-199601

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78183-16050iEP8#..LHD..CBR¥380198912-199212

TYPE A

main78186-10050iEP8#..RHD¥510198912-199101

main78186-10080iEP81..LHD..EFI¥440199106-199601

main78186-10080iEP8#..LHD..CBR¥440198912-199601

TYPE B

main78186-10110iNP80¥500198912-199101

sub78186-10150¥510

main78186-10150iNP80¥510199101-199601

main78186-16160iEP8#..RHD¥380199101-199601

78310CABLE ASSY, CHOKE

main84506-10030iEP80..RHD¥2,960198912-199212

main84506-10040iEP80..LHD¥3,810198912-199212

78311KNOB, CHOKE CONTROL CABLE

main78311-10041iEP80¥760198912-199212

78311ANUT, CHOKE SHAFT SET

main78314-95A00iEP80¥370198912-199212

9011906005

main90119-06005¥80

9011906456

main90119-06456¥120

9046709043

main90467-09043¥160

9048013009

main90480-13009¥280

9095901388

main90959-01388¥350

91655A0616

main91655-A0616¥120

91655A0816

main91655-A0816¥170

9616000600

main96160-00600¥80

17 parts on this diagram · 2 diagrams in section
