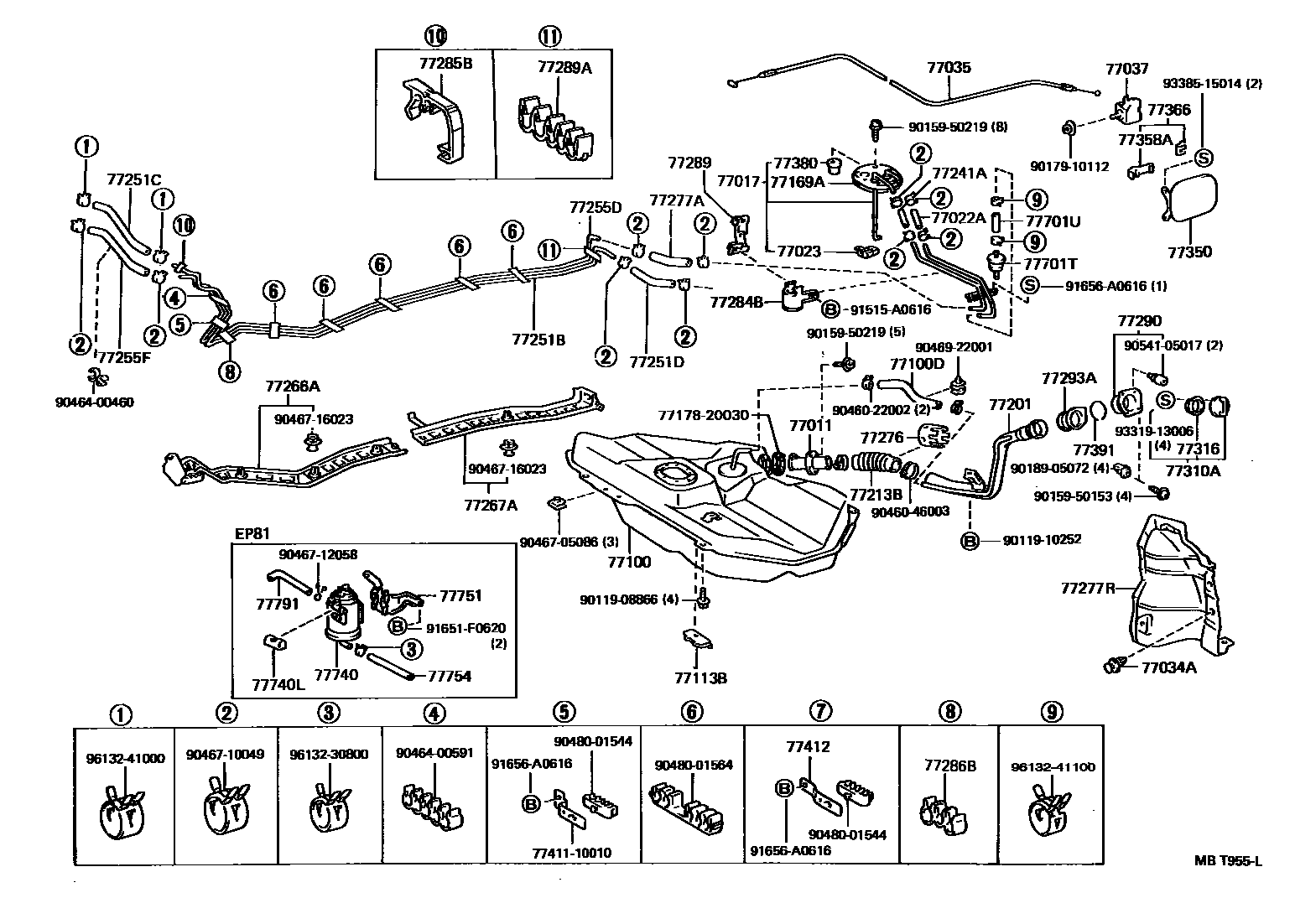

FUEL TANK & TUBE

0001 1 0002 1 0003 1

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-10050iEP8#,NP80198912-199601

77017TUBE SUB-ASSY, FUEL AND EVAPORATION VENT

main77017-10080iEP80198912-199010

sub77017-10081

main77017-10081iEP80199010-199201

sub77017-10201

main77017-10090iEP81..GL,XL198912-199010

sub77017-10091

main77017-10091iEP8#..(GL,STD,XL)..CBR199010-199212

main77017-10100iEP81..LHD..(GL,XL)198912-199010

W(COMBINATION METER)

sub77017-10101

main77017-10101iEP81..S199010-199212

W(COMBINATION METER)

main77017-10150iNP80198912-199010

sub77017-16140

main77017-16140iNP80199010-199601

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95333-06020iEP81..LHD..(GL,XL)198912-199601

L=200

sub95337-06020

main95333-06020iEP81..S198912-199212

L=200,W(COMBINATION METER)

sub95337-06020

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-10010iEP8#..CBR199201-199212

NIFUKO

main77023-16010iEP8#..CBR199201-199212

KYOSAN

main77023-32010iNP80199201-199601

77034ACRIP (FOR FUEL TANK FILLER PIPE)

main90467-07109iEP8#,NP80..GL,GLI,STD,XL,XLI198912-199601

W(MUD GUARD)

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-10050iEP8#..RHD198912-199201

CYUHATSU

main77035-10050iEP8#..RHD199201-199601

main77035-10060iEP8#,NP80..LHD198912-199201

CYUHATSU

main77035-10060iEP8#,NP80..LHD199201-199601

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-10010iEP8#,NP80198912-199601

77100TANK ASSY, FUEL

main77001-10310iEP8#..CBR198912-199212

main77001-10320iEP81..EFI198912-199405

sub77001-10921

main77001-10921iNP80198912-199601

77100DHOSE, FUEL, NO.1(FOR FUEL TANK)

main95311-13028iEP8#,NP80198912-199601

L=280

77113BPLATE, FUEL TANK SIDE

main77113-10020iEP8#,NP80199201-199601

77169AGASKET, FUEL SUCTION TUBE SET

main77169-10020iEP8#,NP80..CBR,DSL198912-199010

main77169-16030iEP8#,NP80..CBR,DSL199010-199601

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-10140iNP80;EP8#..RHD;EP80..STD;EP81..4F..CBR;EP80..LHD..3D..XL198912-199008

sub77201-10190

sub77310-16011

main77201-10150iEP80..LHD198912-199106

W(EXHAUST EMISSION CONTROL)

main77201-10150iEP81..EFI199008-199601

main77201-10190iEP8#,NP80..CBR,DSL199008-199601

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-10070iEP81..4F;EP81..RHD;EP80,NP80;EP81..5F..EFI198912-199601

L=292

77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

main95333-06020iEP8#..CBR198912-199212

L=200

sub95337-06020

main95333-08020iNP80198912-199601

L=200,ID=8

sub95337-08020

77251BTUBE, FUEL MAIN

main77251-10230iEP8#..RHD..CBR198912-199212

main77251-10240iEP81..LHD..CBR198912-199212

main77251-10250iEP81..LHD..EFI198912-199601

main77251-10270iEP81..RHD199201-199601

main77251-10280iNP80198912-199601

77251CHOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)

main77259-10030iEP8#..CBR199002-199202

L=130

sub77259-10060

main77259-10040iNP80199002-199601

L=140

main77259-10060iEP8#..CBR199202-199212

L=130

main95333-06020iEP8#..CBR198912-199212

L=200

sub95337-06020

main95333-08020iNP80198912-199002

L=200,ID=8

sub95337-08020

77251DHOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)

main95333-06020iEP8#..LHD..CBR198912-199212

L=200

sub95337-06020

main95333-08020iNP80198912-199601

L=200,ID=8

sub95337-08020

77255DTUBE, FUEL RETURN

main77255-10200iEP81..RHD198912-199212

main77255-10210iEP8#..LHD..CBR198912-199212

main77255-10220iEP81..LHD..EFI198912-199601

main77255-10250iNP80198912-199601

main77255-10270iEP81..RHD199201-199601

77255FHOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)

main90445-12247iEP81..LHD..(3FC,5F)..EFI199004-199601

L=400

main90447-12142iEP81..RHD199201-199601

main95333-04010iEP8#..CBR198912-199212

L=100

main95333-06010iNP80198912-199601

L=100

main95333-06040iEP81..5F..EFI198912-199004

L=400

77266APROTECTOR, FUEL TUBE, NO.1

main77266-10030iEP8#,NP80198912-199601

77267APROTECTOR, FUEL TUBE, NO.2

main77267-10050iEP8#,NP80198912-199601

77276PROTECTOR, FUEL HOSE

main77276-10020iEP8#,NP80198912-199601

77277AHOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

main77279-10010iEP8#..CBR199002-199212

sub95334-04013

main77279-10020iEP81..EFI199002-199202

L=200

sub95333-06020

main77279-10030iNP80198912-199601

sub95333-06020

main77279-10050iEP81..EFI199202-199308

L=130

sub95333-06020

main77279-10060iEP81199308-199601

L=125

main95333-04020iEP81..CBR198912-199002

L=200

main95333-04040iEP81..CBR198912-199209

L=400

main95333-06020iEP81..EFI198912-199002

L=200

sub95337-06020

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-10030iEP8#,NP80198912-199601

77284BPROTECTOR, FUEL TUBE, NO.3

main77284-32020iEP8#,NP80..CBR,DSL198912-199601

77285BCLAMP, FUEL TUBE W/GROMMET, NO.1

main77285-10010iEP8#,NP80198912-199601

77286BCLAMP, FUEL TUBE W/GROMMET, NO.2

main77286-10010iEP81..RHD198912-199212

main77286-10020iEP81..RHD199201-199601

77289HOLDER, FUEL TANK PIPE SETTING

main77289-10011iEP8#,NP80..CBR,DSL198912-199601

77289ACLAMP, FUEL TUBE W/GROMMET, NO.3

main77289-10020iEP8#..LHD..CBR198912-199212

main77289-10030iEP81..RHD198912-199601

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-10010iEP8#,NP80..STD,XL,XLI198912-199405

W(BACK DOOR OPENER)

main77290-10010iEP81,NP80199405-199601

main77290-10020iEP8#,NP80..STD,XL,XLI198912-199405

sub77290-10010

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-10010iEP8#,NP80..STD,XL,XLI198912-199405

main77293-10020iEP8#,NP80..STD,XL,XLI198912-199405

W(BACK DOOR OPENER)

main77293-10020iEP81,NP80199405-199601

77310ACAP ASSY, FUEL TANK

main77310-12100iEP8#..CBR198912-199008

main77310-16011iEP80..LHD198912-199008

W(EXHAUST EMISSION CONTROL)

sub77310-12140

main77310-16011iEP8#199008-199601

sub77310-12140

main77310-32011iNP80199008-199601

main77310-35061iNP80198912-199008

77316GASKET, FUEL TANK CAP

main77316-12050iEP8#,NP80..CBR,DSL198912-199008

main77316-16010iEP81..EFI198912-199008

W(EXHAUST EMISSION CONTROL)

main77316-16010iEP8#,NP80199008-199601

77350LID ASSY, FUEL FILLER OPENING

main77350-10050iEP81,NP80199405-199601

main77350-10050iEP8#,NP80..STD,XL,XLI198912-199405

W(BACK DOOR OPENER)

main77350-10060iEP8#,NP80..STD,XL,XLI198912-199405

77358ASTOPPER, FUEL FILLER OPENING LID

main77358-10040iEP8#,NP80..STD,XL,XLI199007-199601

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-10020iEP8#,NP80198912-199601

77380VALVE ASSY, FUEL CUT OFF

main77380-14020iEP8#,NP80..CBR,DSL198912-199010

main77380-26010iEP8#,NP80..CBR,DSL199010-199601

77391RING, FUEL INLET BOX

main77391-32010iEP8#,NP80198912-199601

77412SUPPORT, FUEL TUBE GROMMET, NO.2

main77412-10010iEP8#,NP80198912-199601

77701TVALVE, CHECK (FOR MAIN FUEL TANK)

main90917-10069iEP8#,NP80..CBR,DSL198912-199105

sub90917-10082

main90917-10082iEP8#,NP80..CBR,DSL199105-199601

77701UHOSE, FUEL (FOR CHECK VALVE)

main77249-10080iEP81..CBR198912-199601

77740CANISTER ASSY, CHARCOAL

main77704-10140iEP81..CBR198912-199209

main77740-10090iEP81..5F..EFI198912-199106

sub77740-10110

main77740-10110iEP81..LHD..EFI199106-199601

main77740-10120iEP81..RHD199201-199601

77740LCOVER, OUTER VENT CONTROL VALVE

main25838-11050iEP81..LHD..CBR198912-199209

77751BRACKET, CHARCOAL CANISTER BASE

main77751-10030iEP81..LHD..(3FC,5F)..EFI198912-199601

main77751-10040iEP81..LHD..CBR198912-199209

main77751-16150iEP81..RHD199201-199601

77754HOSE, CHARCOAL CANISTER OUTLET, NO.1

main95333-08030iEP81..RHD198912-199201

L=300

77791HOSE, OUTER VENT VALVE TO CARBURETOR

main77791-10020iEP81..LHD..CBR198912-199209

main77791-10030iEP81..RHD198912-199201

7717820030GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20030

7741110010PROTECTOR, FUEL INLET BOX

main77411-10010

9011908866

main90119-08866

9011910252

main90119-10252

9015950153

main90159-50153

9015950219

main90159-50219

9017910112

main90179-10112

9018905072

main90189-05072

9046022002

main90460-22002

9046046003

main90460-46003

9046400460

main90464-00460

9046400591

main90464-00591

9046705086

main90467-05086

9046710049

main90467-10049

9046712058

main90467-12058

9046716023

main90467-16023

9046922001

main90469-22001

9048001544

main90480-01544

9048001564

main90480-01564

9054105017

main90541-05017

91515A0616

main91515-A0616

91651F0620

main91651-F0620

91656A0616

main91656-A0616

9331913006

main93319-13006

9338515014

main93385-15014

9613230800

main96132-30800

9613241000

main96132-41000

9613241100

main96132-41100
