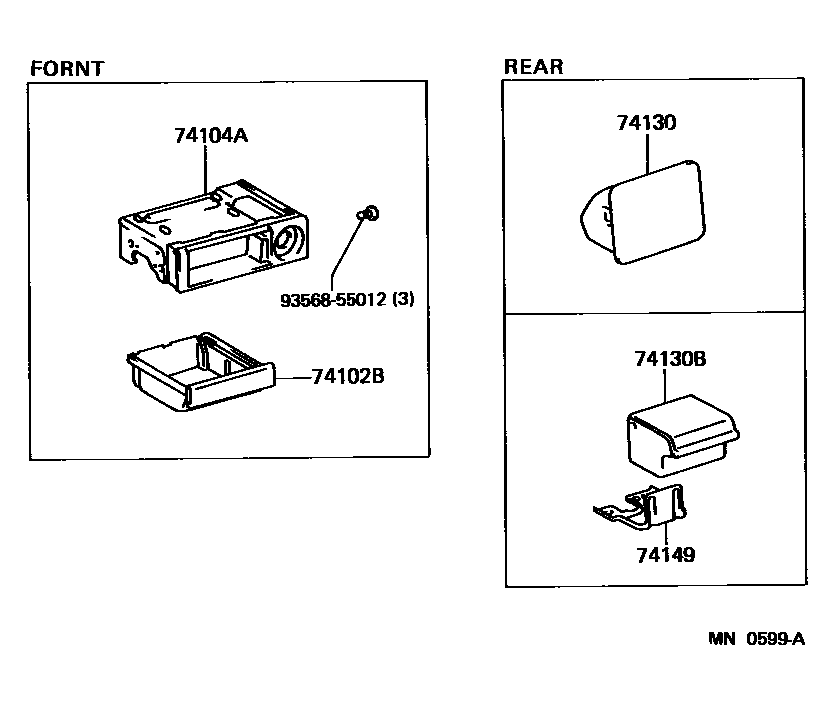

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-10040iEP8#,NP80198912-199601

main74102-10050iEP8#,NP80198912-199601

W(*IPM)

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-10070iEP8#,NP80198912-199601

74130RECEPTACLE ASSY, REAR ASH

main74109-20080-03iEP8#,NP80..GL,GLI,S,SI,XL,XLI198912-199211

GRAY,TRIM1#

sub74109-20080

main74109-20080-14iEP8#,NP80..GL,S,SI,XL,XLI198912-199201

BLUE,TRIM8#

sub74109-20080

main74109-20080-E1iEP8#,NP80..GL,GLI,XL,XLI199201-199212

OAK,TRIM4#

sub74109-20080

main74109-20080-P0iEP8#,NP80..GL,GLI,S,SI,XL,XLI199211-199601

SHADOW GRAY,TRIM1#

sub74109-20080

74130BRECEPTACLE ASSY, REAR ASH

main74130-20060-01iEP81,NP80199201-199601

BLACK,TRIM1#

sub74130-16010

sub74130-20060

main74130-20060-01iEP80,NP80;EP81..S,SI,STD,XL,XLI198912-199201

BLACK,TRIM1#,8#

sub74130-16010

sub74130-20060

main74130-20060-01iEP81..S,SI199201-199212

BLACK,TRIM1#,4#

sub74130-16010

sub74130-20060

74149SUPPORT, REAR ASH RECEPTACLE

main74149-10020iEP80,NP80;EP81..GLI,S,SI,STD,XL,XLI198912-199601

9356855012

main93568-55012

6 parts on this diagram · 1 diagram in section
