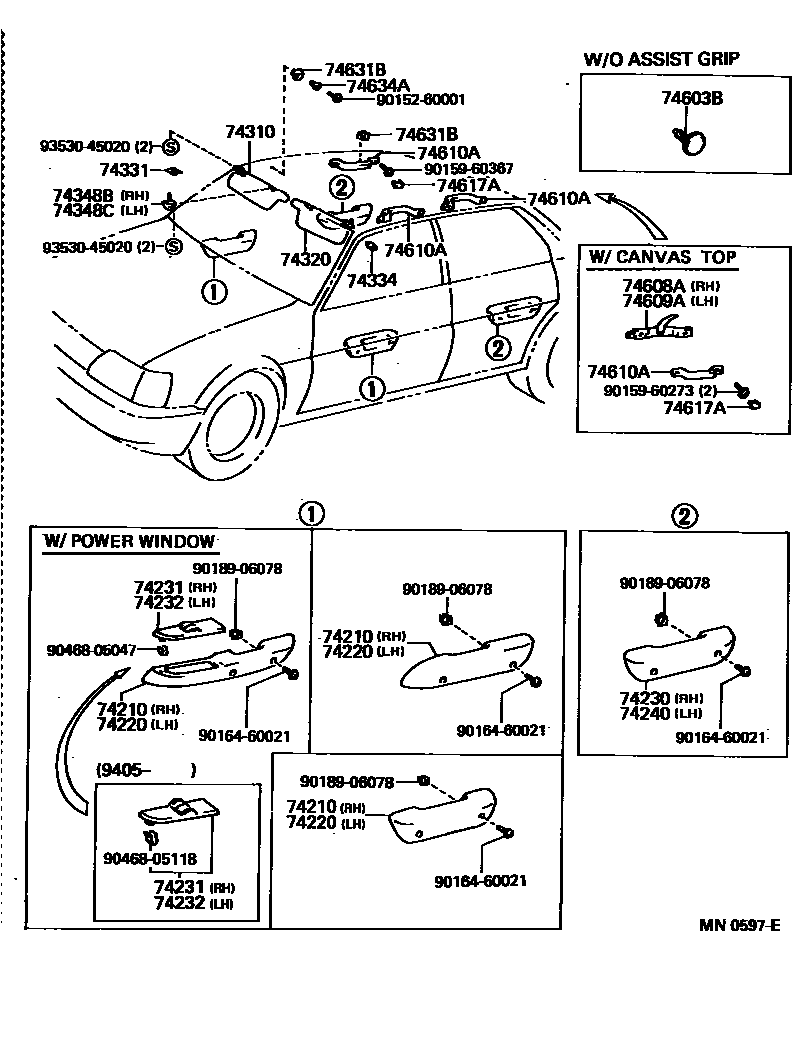

ARMREST & VISOR

74210ARMREST ASSY, FRONT, RH

main74210-10030-03iEP8#..GL,GLI,S,SI199201-199210

W(POWER WINDOW),GRAY,TRIM1#

main74210-10030-04iEP8#..GL,S,SI198912-199201

W(POWER WINDOW),BLUE,TRIM8#

main74210-10030-E0iEP8#..GL,GLI199201-199210

W(POWER WINDOW),OAK,TRIM4#

main74210-10031-E0iEP8#..GL,GLI199210-199212

W(POWER WINDOW),OAK,TRIM4#

main74210-10031-P0iEP81..GLI,SI199212-199405

W(POWER WINDOW),GRAY,TRIM1#

main74210-10050-03iEP8#,NP80..XL,XLI199201-199601

W(FULL FABRIC DOOR TRIM),GRAY,TRIM1#

main74210-10050-04iEP8#,NP80..LHD..(XL,XLI)198912-199201

W(FULL FABRIC DOOR TRIM),BLUE,TRIM8#

main74210-10050-E0iEP8#..GL,GLI199201-199212

OAK,TRIM4#

main74210-10060-03iEP8#,NP80..XL,XLI198912-199201

GRAY,TRIM1#

main74210-10060-04iEP8#,NP80..XL,XLI198912-199201

BLUE,TRIM8#

main74210-10060-E0iEP8#,NP80..STD,XL,XLI199201-199212

OAK,TRIM4#

main74250-10010-03iEP8#,NP80..STD198912-199201

GRAY,TRIM1#

main74250-10010-24iEP8#,NP80..STD198912-199201

BLUE,TRIM8#

74220ARMREST ASSY, FRONT, LH

main74210-10060-03iEP8#,NP80..XL,XLI198912-199201

GRAY,TRIM1#

main74210-10060-04iEP8#,NP80..XL,XLI198912-199201

BLUE,TRIM8#

main74210-10060-E0iEP8#,NP80..STD,XL,XLI199201-199212

OAK,TRIM4#

main74220-10020-03iEP8#..GL,S,SI198912-199201

W(POWER WINDOW),GRAY,TRIM1#

main74220-10020-04iEP8#..GL,S,SI198912-199201

W(POWER WINDOW),BLUE,TRIM8#

main74220-10020-E0iEP8#..GL,GLI199201-199210

W(POWER WINDOW),OAK,TRIM4#

main74220-10021-E0iEP8#..GL,GLI199210-199212

W(POWER WINDOW),OAK,TRIM4#

main74220-10021-P0iEP81..LHD..5D..5F199508-199512

COMFORT,W(POWER WINDOW),GRAY,TRIM1#

main74220-10040-03iEP8#..GL,GLI,S,SI198912-199601

GRAY,TRIM1#

main74220-10040-04iEP8#,NP80..LHD..(XL,XLI)198912-199201

W(FULL FABRIC DOOR TRIM),BLUE,TRIM8#

main74220-10040-E0iEP8#..GL,GLI199201-199212

OAK,TRIM4#

main74250-10010-03iEP8#,NP80..STD198912-199201

GRAY,TRIM1#

main74250-10010-24iEP8#,NP80..STD198912-199201

BLUE,TRIM8#

74230ARMREST ASSY, REAR, RH

main74210-10060-03iEP8#..5D199201-199601

GRAY,TRIM1#

main74210-10060-04iEP8#..5D..(GL,XL,XLI)198912-199201

BLUE,TRIM8#

main74210-10060-E0iEP8#..5D199201-199212

OAK,TRIM4#

main74250-10010-03iEP8#..5D..STD198912-199201

GRAY,TRIM1#

main74250-10010-24iEP8#..5D..STD198912-199201

BLUE,TRIM8#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-10020iEP80..GL198912-199008

main74231-10020-01iEP8#..GL,GLI199201-199208

BLACK,TRIM1#,4#

main74231-10020-22iEP8#..GL,GLI199208-199210

BLACK,TRIM1#,4#

main74231-10021-22iEP8#..GL,GLI199210-199405

BLACK,TRIM1#

main74231-10030iEP81..GL,S,SI198912-199008

main74231-10030-01iEP81..S,SI199201-199208

BLACK,TRIM1#

main74231-10030-C0iEP81..S,SI199208-199210

BLACK,TRIM1#

main74231-10031-C0iEP81..S,SI199210-199306

BLACK,TRIM1#

main74231-10032-C0iEP81..SI199306-199601

BLACK,TRIM1#

main74231-10050-C0iEP81..RHD..3D199405-199601

BLACK,TRIM1#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-10010iEP81..GL,S,SI198912-199008

main74232-10010-01iEP81..GL,S,SI199008-199201

BLACK,TRIM1#,8#

main74232-10010-C0iEP81..S,SI199208-199210

BLACK,TRIM1#

main74232-10011-C0iEP81..S,SI199210-199405

BLACK,TRIM1#

main74232-10020iEP80..GL198912-199008

main74232-10020-01iEP80..GL199008-199201

BLACK,TRIM1#,8#

main74232-10020-22iEP8#..GL,GLI199208-199210

BLACK,TRIM1#,4#

main74232-10021-22iEP81..RHD..3D199405-199601

BLACK,TRIM1#

main74232-10030-C0iEP81..LHD..3D..XLI199508-199512

COMFORT,BLACK,TRIM1#

74240ARMREST ASSY, REAR, LH

main74210-10060-03iEP8#..5D..(GL,XL,XLI)198912-199201

GRAY,TRIM1#

main74210-10060-04iEP8#..5D..(GL,XL,XLI)198912-199201

BLUE,TRIM8#

main74210-10060-E0iEP8#..5D199201-199212

OAK,TRIM4#

main74250-10010-03iEP8#..5D..STD198912-199201

GRAY,TRIM1#

main74250-10010-24iEP8#..5D..STD198912-199201

BLUE,TRIM8#

74310VISOR ASSY, RH

main74310-10430-03iEP8#,NP80..LHD..(XL,XLI)199201-199405

W(VANITY MIRROR),GRAY,TRIM1#

main74310-10430-A1iEP8#,NP80..LHD..(XL,XLI)199201-199212

W(VANITY MIRROR),IVORY,TRIM4#

main74310-10440-03iEP8#,NP80..GL,GLI,S,SI,XL,XLI199201-199405

W(VANITY MIRROR & MIRROR COVER),GRAY,TRIM1#

main74310-10440-A0iEP8#,NP80..GL,GLI,XL,XLI199201-199212

W(VANITY MIRROR & MIRROR COVER),IVORY,TRIM4#

main74310-10450-03iEP8#,NP80..GL,GLI,STD,XL,XLI199201-199405

GRAY,TRIM1#

main74310-10450-A0iEP8#,NP80..GL,GLI,STD,XL,XLI199201-199212

IVORY,TRIM4#

main74310-10580-B1iEP81..RHD199405-199601

GRAY,TRIM1#

main74310-10590-B1iEP81,NP80..LHD199405-199601

GRAY,TRIM1#

main74310-10600-B1iEP81,NP80199405-199601

W(VANITY MIRROR & MIRROR COVER),GRAY,TRIM1#

74320VISOR ASSY, LH

main74320-10210-03iEP8#,NP80..S,SI,STD,XL,XLI199201-199405

GRAY,TRIM1#

main74320-10210-A0iEP8#,NP80..STD,XL,XLI199201-199212

IVORY,TRIM4#

main74320-10220-03iEP8#..RHD..XL198912-199201

W(VANITY MIRROR),GRAY,TRIM1#,8#

main74320-10220-A0iEP8#..GL,GLI199201-199212

IVORY,TRIM4#

main74320-10230-03iEP8#,NP80..GL,GLI,S,SI,XL,XLI199201-199405

W(VANITY MIRROR & MIRROR COVER),GRAY,TRIM1#

main74320-10230-A0iEP8#,NP80..GL,GLI,XL,XLI199201-199212

W(VANITY MIRROR & MIRROR COVER),IVORY,TRIM4#

main74320-10270-B1iEP81,NP80..LHD199405-199601

GRAY,TRIM1#

main74320-10280-B1iEP81..RHD199405-199601

GRAY,TRIM1#

main74320-10290-B1iEP81,NP80199405-199601

W(VANITY MIRROR & MIRROR COVER),GRAY,TRIM1#

74331CASE, VISOR ARM, RH

main74331-30040-03iEP8#,NP80198912-199201

GRAY,TRIM1#,8#

main74331-30040-A0iEP8#,NP80..GL,GLI,STD,XL,XLI199201-199212

IVORY,TRIM4#

74334CASE, VISOR ARM, LH

main74334-30070-03iEP8#,NP80198912-199201

GRAY,TRIM1#,8#

main74334-30070-A0iEP8#,NP80..GL,GLI,STD,XL,XLI199201-199212

IVORY,TRIM4#

74348BHOLDER, VISOR, RH

main74348-12010-33iEP8#,NP80199201-199601

GRAY,TRIM1#

sub74348-30010

main74348-12010-A2iEP8#,NP80..GL,GLI,STD,XL,XLI199201-199212

IVORY,TRIM4#

sub74348-30010

74348CHOLDER, VISOR, LH

main74348-12010-33iEP8#,NP80198912-199201

GRAY,TRIM1#,8#

sub74348-30010

main74348-12010-A2iEP8#,NP80..GL,GLI,STD,XL,XLI199201-199212

IVORY,TRIM4#

sub74348-30010

74603BCLIP (FOR ASSIST GRIP)

main90467-06048-A0×4iEP8#..RHD..5F199201-199212

IVORY,TRIM4#

main90467-06048-B1×4iEP81..LHD;EP81..RHD..5D199405-199601

LIGHT GRAY,TRIM1#

74608ARETAINER SUB-ASSY, ASSIST GRIP, RH

main74608-10010iEP8#..LHD..3D..(S,SI,XL,XLI)199007-199101

74609ARETAINER SUB-ASSY, ASSIST GRIP, LH

main74609-10010iEP80..RHD..4F198912-199101

74610AGRIP SUB-ASSY, ASSIST

main74603-16010-13×3iEP81..SI199405-199601

SHADOW GRAY,TRIM1#

sub74610-12030

main74603-16010-A1iEP8#..GL,GLI199201-199212

W(*IPM),IVORY,TRIM4#

sub74610-12030

main74610-12020-03×2iEP8#..GL,S,SI,XL,XLI198912-199201

W(MOON ROOF),LIGHT GRAY,TRIM1#,8#,REAR

main74610-12020-A0×2iEP8#..GL,GLI,XL,XLI199201-199212

W(MOON ROOF),IVORY,TRIM4#,REAR

main74610-16010-03iEP8#..LHD..3D..(XL,XLI)199201-199405

W(*IPM & MOON ROOF) OR W(*IPM & CANVASTOP),LIGHT GRAY,TRIM1#

sub74610-12030

main74610-16010-A0iEP8#..LHD..3D..(XL,XLI)199201-199212

W(*IPM & MOON ROOF) OR W(CANVASTOP),IVORY,TRIM4#

sub74610-12030

74617APLUG, ASSIST GRIP

main74617-16010-53×6iEP8#,NP80..STD,XL,XLI198912-199201

W(MOON ROOF),LIGHT GRAY,TRIM1#,8#

main74617-16010-A0×6iEP8#..GL,GLI199201-199212

W(*IPM & MOON ROOF) OR W(CANVASTOP),IVORY,TRIM4#

74631BHOOK, COAT

main74631-12060-33iEP8#,NP80..XL,XLI198912-199201

LIGHT GRAY,TRIM1#,8#

main74631-12060-A0iEP8#,NP80..XL,XLI199201-199212

IVORY,TRIM4#

main74631-12060-B2iEP8#,NP80..XL,XLI199201-199601

LIGHT GRAY,TRIM1#

main74631-20040-13iEP8#..GL,GLI,S,SI199201-199601

GRAY,TRIM1#

sub74631-14010

main74631-20040-A0iEP8#..GL,GLI199201-199212

IVORY,TRIM4#

sub74631-14010

74634ACOLLAR, COAT HOOK

main74634-12010iEP8#,NP80..XL,XLI198912-199601

9015260001

main90152-60001

9015960273

main90159-60273

9015960367

main90159-60367

9016460021

main90164-60021

9018906078

main90189-06078

9046805047

main90468-05047

9046805118

main90468-05118

9353045020

main93530-45020

27 parts on this diagram · 1 diagram in section
