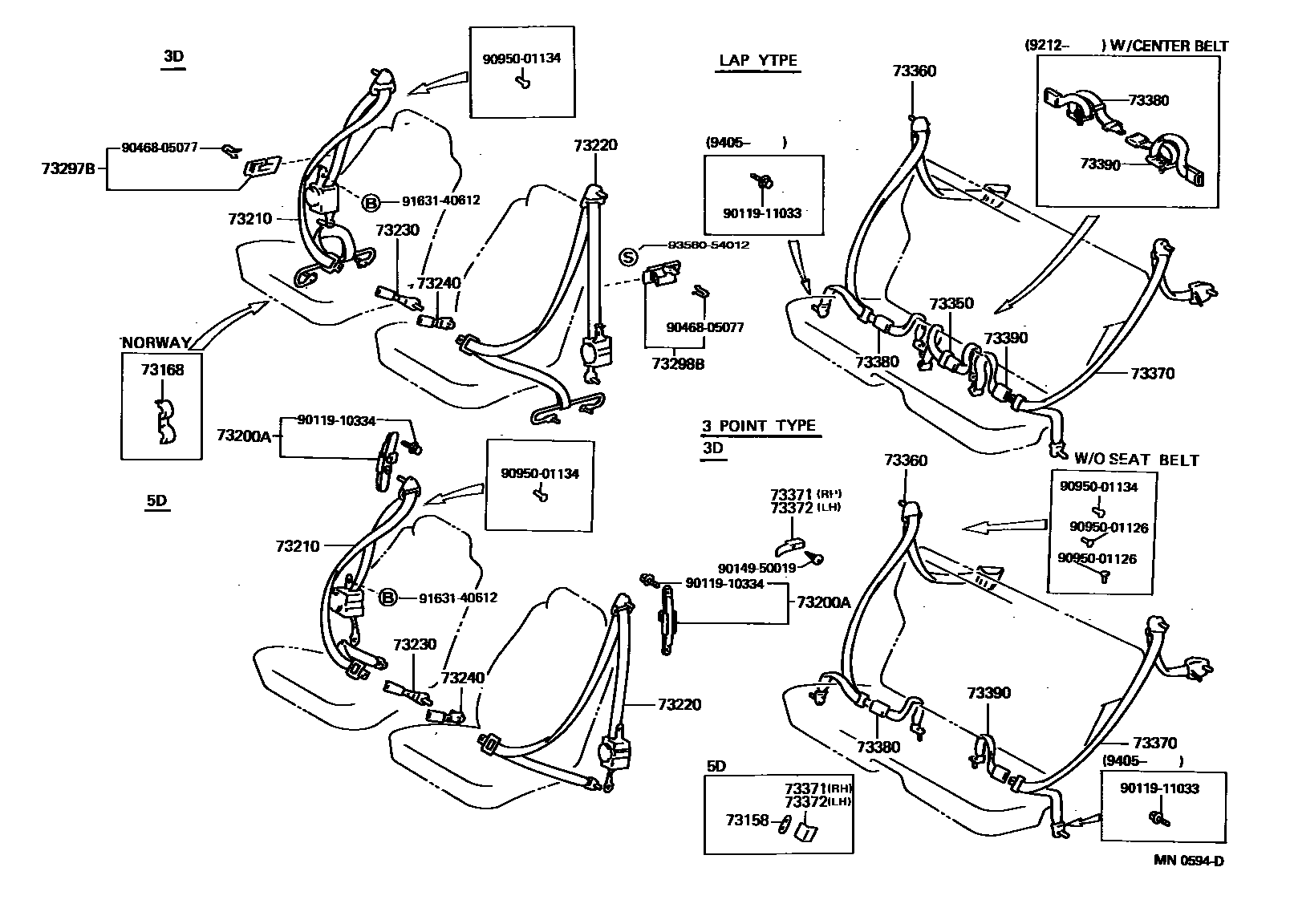

SEAT BELT & CHILD RESTRAINT SEAT

73158BRACKET, SEAT BELT GUIDE SET

main73158-87001iEP8#..5D198912-199601

73168STOPPER FRONT SEAT BELT LAP ANCHOR

main73168-12010iEP81..LHD..3D..EFI198912-199601

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-10010-03iEP8#..5D198912-199301

GRAY,TRIM1#

sub73200-10010

main73200-10010-04iEP8#..5D198912-199201

BLUE,TRIM8#

sub73200-10010

main73200-10010-E0iEP8#..5D199201-199212

OAK,TRIM4#

sub73200-10010

main73200-10011-P0iEP81..5D199301-199601

GRAY,TRIM1#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-10370-03iEP81..3FC..EFI;EP8#,NP80..3D..MTM198912-199201

GRAY,TRIM1#

sub73210-10371

main73210-10370-04iEP8#,NP80..3D198912-199201

BLUE,TRIM8#

sub73210-10371

main73210-10420-03iEP8#..5D..(STD,XL,XLI)198912-199212

GRAY,TRIM1#

sub73210-10421

main73210-10420-04iEP8#..5D..(STD,XL,XLI)198912-199201

BLUE,TRIM8#

sub73210-10421

main73210-10420-E0iEP8#..5D199201-199212

OAK,TRIM4#

sub73210-10421

main73210-10421-B1iEP81..5D199212-199405

GRAY,TRIM1#

sub73210-10421

main73210-10430-03iEP81..GL198912-199201

GRAY,TRIM1#

sub73210-10431

main73210-10430-03iEP8#..5D..(STD,XL,XLI)198912-199212

W(ADJUSTABLE SHOULDER BELT ANCHOR),GRAY,TRIM1#

sub73210-10431

main73210-10430-04iEP8#..5D..(STD,XL,XLI)198912-199201

BLUE,TRIM8#

sub73210-10431

main73210-10430-04iEP81..GL198912-199201

W(ADJUSTABLE SHOULDER BELT ANCHOR),BLUE,TRIM8#

sub73210-10431

main73210-10430-E0iEP8#..5D199201-199212

W(ADJUSTABLE SHOULDER BELT ANCHOR),OAK,TRIM4#

sub73210-10431

main73210-10431-B1iEP81..5D199212-199405

W(ADJUSTABLE SHOULDER BELT ANCHOR),GRAY,TRIM1#

sub73210-10431

main73210-10440-B0iEP8#,NP80..3D199201-199212

GRAY,TRIM1#

sub73210-10441

main73210-10440-E0iEP8#,NP80..3D..(GL,GLI,STD,XL,XLI)199201-199212

OAK,TRIM4#

sub73210-10441

main73210-10441-B0iEP81,NP80..3D199212-199405

GRAY,TRIM1#

sub73210-10441

main73210-10580-B0iEP81,NP80..3D199405-199601

GRAY,TRIM1#

main73210-10590-B0iEP81..5D199405-199601

GRAY,TRIM1#

main73210-10600-B0iEP81..5D199405-199601

W(ADJUSTABLE SHOULDER BELT ANCHOR),GRAY,TRIM1#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-10290-03iEP81..3FC..EFI;EP8#,NP80..3D..MTM198912-199201

GRAY,TRIM1#

sub73220-10291

main73220-10290-04iEP8#,NP80..3D198912-199201

BLUE,TRIM8#

sub73220-10291

main73220-10330-03iEP8#..5D..(STD,XL,XLI)198912-199212

GRAY,TRIM1#

sub73220-10331

main73220-10330-04iEP8#..5D..(STD,XL,XLI)198912-199201

BLUE,TRIM8#

sub73220-10331

main73220-10330-E0iEP8#..5D199201-199212

OAK,TRIM4#

sub73220-10331

main73220-10331-B1iEP81..5D199212-199405

GRAY,TRIM1#

sub73220-10331

main73220-10340-03iEP8#..5D..(STD,XL,XLI)198912-199212

W(ADJUSTABLE SHOULDER BELT ANCHOR),GRAY,TRIM1#

sub73220-10341

main73220-10340-03iEP81..GL198912-199201

GRAY,TRIM1#

sub73220-10341

main73220-10340-04iEP8#..5D..(STD,XL,XLI)198912-199201

BLUE,TRIM8#

sub73220-10341

main73220-10340-04iEP8#..5D..(STD,XL,XLI)198912-199201

W(ADJUSTABLE SHOULDER BELT ANCHOR),BLUE,TRIM8#

sub73220-10341

main73220-10340-E0iEP8#..5D199201-199212

W(ADJUSTABLE SHOULDER BELT ANCHOR),OAK,TRIM4#

sub73220-10341

main73220-10341-B1iEP81..5D199212-199405

W(ADJUSTABLE SHOULDER BELT ANCHOR),GRAY,TRIM1#

sub73220-10341

main73220-10350-B0iEP8#,NP80..3D199201-199212

GRAY,TRIM1#

sub73220-10351

main73220-10350-E0iEP8#,NP80..3D..(GL,GLI,STD,XL,XLI)199201-199212

OAK,TRIM4#

sub73220-10351

main73220-10351-B0iEP81,NP80..3D199212-199405

GRAY,TRIM1#

sub73220-10351

main73220-10450-B0iEP81,NP80..3D199405-199601

GRAY,TRIM1#

main73220-10460-B0iEP81..5D199405-199601

GRAY,TRIM1#

main73220-10470-B0iEP81..5D199405-199601

W(ADJUSTABLE SHOULDER BELT ANCHOR),GRAY,TRIM1#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-10190-03iEP8#,NP80198912-199212

GRAY,TRIM1#

sub73230-10191

main73230-10190-04iEP8#,NP80198912-199201

BLUE,TRIM8#

sub73230-10191

main73230-10190-E0iEP8#,NP80..GL,GLI,STD,XL,XLI199201-199212

OAK,TRIM4#

sub73230-10191

main73230-10191-P0iEP81,NP80..SI,STD,XL,XLI199212-199405

GRAY,TRIM1#

sub73230-10191

main73230-10200-03iEP8#,NP80..3D..(GL,STD,XL,XLI)198912-199212

W(SEAT BACK FOLDING FORWARD TYPE WALK IN SYSTEM),GRAY,TRIM1#

sub73230-10201

main73230-10200-04iEP8#,NP80..3D..(GL,STD,XL,XLI)198912-199201

W(SEAT BACK FOLDING FORWARD TYPE WALK IN SYSTEM),BLUE,TRIM8#

sub73230-10201

main73230-10200-E0iEP8#,NP80..3D..(GL,GLI,STD,XL,XLI)199201-199212

W(SEAT BACK FOLDING FORWARD TYPE WALK IN SYSTEM),OAK,TRIM4#

sub73230-10201

main73230-10201-P0iEP81..RHD..3D..XLI199212-199405

GRAY,TRIM1#

sub73230-10201

main73230-10201-P0iEP81..GLI199212-199405

W(SEAT BACK FOLDING FORWARD TYPE WALK IN SYSTEM),GRAY,TRIM1#

sub73230-10201

main73230-10380-B0iEP81..RHD..3D199405-199601

W/O(REAR SEAT),GRAY,GRAY,TRIM1#

main73230-10390-B1iEP81..RHD..3D199405-199601

GRAY,TRIM1#

main73230-10390-B1iEP81..RHD..5D;EP81,NP80..LHD199405-199601

W/O(REAR SEAT),GRAY,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-10190-03iEP8#,NP80..MTM;EP81..3FC..EFI198912-199212

GRAY,TRIM1#

sub73230-10191

main73230-10190-04iEP8#,NP80198912-199201

BLUE,TRIM8#

sub73230-10191

main73230-10190-E0iEP8#,NP80..GL,GLI,STD,XL,XLI199201-199212

OAK,TRIM4#

sub73230-10191

main73230-10191-P0iEP81,NP80199212-199405

GRAY,TRIM1#

sub73230-10191

main73230-10390-B1iNP80199405-199601

GRAY,TRIM1#

main73230-10390-B1iEP81..SI;EP81..RHD;EP81..LHD..5D199405-199601

W/O(REAR SEAT),GRAY,TRIM1#

main73240-10050-03iEP81..3D..3FC..EFI;EP8#,NP80..3D..MTM..(GL,GLI,STD,XL,XLI)198912-199212

W(SEAT BACK FOLDING FORWARD TYPE WALK IN SYSTEM),GRAY,TRIM1#

sub73240-10051

main73240-10050-04iEP8#,NP80..3D..(GL,STD,XL,XLI)198912-199201

W(SEAT BACK FOLDING FORWARD TYPE WALK IN SYSTEM),BLUE,TRIM8#

sub73240-10051

main73240-10050-E0iEP8#,NP80..3D..(GL,GLI,STD,XL,XLI)199201-199212

W(SEAT BACK FOLDING FORWARD TYPE WALK IN SYSTEM),OAK,TRIM4#

sub73240-10051

main73240-10051-P0iEP81,NP80..LHD..3D..(STD,XL,XLI)199212-199405

W(SEAT BACK FOLDING FORWARD TYPE WALK IN SYSTEM),GRAY,TRIM1#

sub73240-10051

main73240-10090-B0iEP81,NP80..LHD..3D..(XL,XLI)199405-199601

GRAY,TRIM1#

73297BCOVER, QUARTER TRIM BELT HOLE, RH

main73297-10030-03iEP8#,NP80..3D..(STD,XL,XLI)198912-199601

GRAY,TRIM1#

main73297-10030-04iEP8#,NP80..3D..(STD,XL,XLI)198912-199201

BLUE,TRIM8#

main73297-10030-E0iEP8#,NP80..3D..(STD,XL,XLI)199201-199212

OAK,TRIM4#

73298BCOVER, QUARTER TRIM BELT HOLE, LH

main73298-10030-03iEP81..3D..3FC..EFI;EP8#,NP80..3D..MTM..(STD,XL,XLI)198912-199601

GRAY,TRIM1#

main73298-10030-04iEP8#,NP80..3D..(STD,XL,XLI)198912-199201

BLUE,TRIM8#

main73298-10030-E0iEP8#,NP80..3D..(STD,XL,XLI)199201-199212

OAK,TRIM4#

73350BELT ASSY, REAR SEAT LAP TYPE, CENTER

main73350-10100-03iEP8#,NP80198912-199212

GRAY,TRIM1#

sub73350-10100

main73350-10100-04iEP8#,NP80198912-199201

BLUE,TRIM8#

sub73350-10100

main73350-10100-E0iEP8#,NP80..GL,GLI,STD,XL,XLI199201-199212

OAK,TRIM4#

sub73350-10100

73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH

main73360-10080-03iEP81..3FC..EFI;EP8#,NP80..LHD..MTM..(XL,XLI)198912-199201

W(FULL FABRIC DOOR TRIM),GRAY,TRIM1#

sub73360-10081

main73360-10080-03iEP8#..GL,S,SI198912-199201

GRAY,TRIM1#

sub73360-10081

main73360-10080-04iEP8#,NP80..LHD..(XL,XLI)198912-199201

W(FULL FABRIC DOOR TRIM),BLUE,TRIM8#

sub73360-10081

main73360-10080-04iEP8#..GL,S,SI198912-199201

BLUE,TRIM8#

sub73360-10081

main73360-10100-03iEP81..3FC..EFI;EP8#,NP80..LHD..MTM..(XL,XLI)198912-199201

GRAY,TRIM1#

sub73360-10101

main73360-10100-04iEP8#,NP80..LHD..(XL,XLI)198912-199201

BLUE,TRIM8#

sub73360-10101

main73360-10130-B0iEP8#..GL,GLI,S,SI199201-199212

W(FULL FABRIC DOOR TRIM),GRAY,TRIM1#

sub73360-10131

main73360-10130-B0iEP8#,NP80..STD,XL,XLI199201-199212

GRAY,TRIM1#

sub73360-10131

main73360-10130-E0iEP8#,NP80..STD,XL,XLI199201-199212

OAK,TRIM4#

sub73360-10131

main73360-10130-E0iEP8#..GL,GLI199201-199212

W(FULL FABRIC DOOR TRIM),OAK,TRIM4#

sub73360-10131

main73360-10131-B0iEP81,NP80..STD,XL,XLI199212-199405

W(FULL FABRIC DOOR TRIM),GRAY,TRIM1#

sub73360-10131

main73360-10131-B0iEP81..GLI,SI199212-199405

GRAY,TRIM1#

sub73360-10131

main73360-10140-B0iEP8#,NP80..STD,XL,XLI199201-199212

GRAY,TRIM1#

sub73360-10141

main73360-10140-E0iEP8#,NP80..STD,XL,XLI199201-199212

OAK,TRIM4#

sub73360-10141

main73360-10141-B0iEP81,NP80..STD,XL,XLI199212-199405

GRAY,TRIM1#

sub73360-10141

main73360-10220-B0iEP81,NP80..XL,XLI199405-199601

W(FULL FABRIC DOOR TRIM),GRAY,TRIM1#

main73360-10220-B0iEP81..SI199405-199601

GRAY,TRIM1#

main73360-10230-B0iEP81,NP80..XL,XLI199405-199601

GRAY,TRIM1#

73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH

main73370-10030-03iEP8#..GL,S,SI198912-199201

GRAY,TRIM1#

sub73370-10031

main73370-10030-03iEP81..3FC..EFI;EP8#,NP80..LHD..MTM..(XL,XLI)198912-199201

W(FULL FABRIC DOOR TRIM),GRAY,TRIM1#

sub73370-10031

main73370-10030-04iEP81..3FC..EFI;EP8#,NP80..LHD..MTM..(XL,XLI)198912-199201

W(FULL FABRIC DOOR TRIM),BLUE,TRIM8#

sub73370-10031

main73370-10030-04iEP8#..GL,S,SI198912-199201

BLUE,TRIM8#

sub73370-10031

main73370-10060-03iEP8#..RHD..XL;EP8#,NP80..STD198912-199201

GRAY,TRIM1#

sub73370-10061

main73370-10060-04iEP8#,NP80..LHD..(XL,XLI)198912-199201

BLUE,TRIM8#

sub73370-10061

main73370-10090-B0iEP8#,NP80..STD,XL,XLI199201-199212

W(FULL FABRIC DOOR TRIM),GRAY,TRIM1#

sub73370-10091

main73370-10090-B0iEP8#..GL,GLI,S,SI199201-199212

GRAY,TRIM1#

sub73370-10091

main73370-10090-E0iEP8#..GL,GLI199201-199212

OAK,TRIM4#

sub73370-10091

main73370-10090-E0iEP8#..GL,GLI199201-199212

W(FULL FABRIC DOOR TRIM),OAK,TRIM4#

sub73370-10091

main73370-10091-B0iEP81,NP80..STD,XL,XLI199212-199405

W(FULL FABRIC DOOR TRIM),GRAY,TRIM1#

sub73370-10091

main73370-10091-B0iEP81,NP80..STD,XL,XLI199212-199405

GRAY,TRIM1#

sub73370-10091

main73370-10100-B0iEP8#,NP80..STD,XL,XLI199201-199212

GRAY,TRIM1#

sub73370-10101

main73370-10100-E0iEP8#,NP80..STD,XL,XLI199201-199212

OAK,TRIM4#

sub73370-10101

main73370-10101-B0iEP81,NP80..STD,XL,XLI199212-199405

GRAY,TRIM1#

sub73370-10101

main73370-10150-B0iEP81..SI199405-199601

GRAY,TRIM1#

main73370-10150-B0iEP81..SI199405-199601

W(FULL FABRIC DOOR TRIM),GRAY,TRIM1#

main73370-10160-B0iEP81,NP80..XL,XLI199405-199601

GRAY,TRIM1#

73371HANGER, REAR SEAT SHOULDER BELT, RH

main73371-10010-03iEP81..5D198912-199601

GRAY,TRIM1#

sub73371-10010

main73371-10010-14iEP8#..5D198912-199201

BLUE,TRIM8#

sub73371-10010

main73371-10010-E0iEP8#..5D199201-199212

OAK,TRIM4#

sub73371-10010

main73371-10020-03iEP8#..3D..(GL,S,SI)198912-199601

GRAY,TRIM1#

sub73371-10020

main73371-10020-03iEP8#..3D..(GL,S,SI)198912-199601

W(FULL FABRIC DOOR TRIM),GRAY,TRIM1#

sub73371-10020

main73371-10020-04iEP8#,NP80..LHD..3D..(XL,XLI)198912-199201

W(FULL FABRIC DOOR TRIM),BLUE,TRIM8#

sub73371-10020

main73371-10020-04iEP81..3FC..EFI;EP8#,NP80..LHD..3D..MTM..(XL,XLI)198912-199201

BLUE,TRIM8#

sub73371-10020

main73371-10020-E0iEP8#..GL,GLI199201-199212

W(FULL FABRIC DOOR TRIM),OAK,TRIM4#

sub73371-10020

main73371-10020-E0iEP8#..GL,GLI199201-199212

OAK,TRIM4#

sub73371-10020

main73371-13010-03iEP8#,NP80..3D..(STD,XL,XLI)198912-199601

SHADOW GRAY,TRIM1#

sub73371-13010

main73371-13010-14iEP8#,NP80..LHD..3D..(XL,XLI)198912-199201

BLUE,TRIM8#

sub73371-13010

main73371-13010-E0iEP8#,NP80..3D..(STD,XL,XLI)199201-199212

OAK,TRIM4#

sub73371-13010

73372HANGER, REAR SEAT SHOULDER BELT, LH

main73371-10010-03iEP81..5D198912-199601

GRAY,TRIM1#

sub73371-10010

main73371-10010-14iEP8#..5D198912-199201

BLUE,TRIM8#

sub73371-10010

main73371-10010-E0iEP8#..5D199201-199212

OAK,TRIM4#

sub73371-10010

main73371-13010-03iEP8#,NP80..LHD..3D..(XL,XLI)198912-199601

SHADOW GRAY,TRIM1#

sub73371-13010

main73371-13010-14iEP81..3FC..EFI;EP8#,NP80..LHD..3D..MTM..(XL,XLI)198912-199201

BLUE,TRIM8#

sub73371-13010

main73371-13010-E0iEP8#,NP80..3D..(STD,XL,XLI)199201-199212

OAK,TRIM4#

sub73371-13010

main73372-10010-03iEP81..3FC..CBR;EP8#..3D..(GL,GLI,S,SI)198912-199601

GRAY,TRIM1#

sub73372-10010

main73372-10010-03iEP8#,NP80..3D..(STD,XL,XLI)198912-199601

W(FULL FABRIC DOOR TRIM),GRAY,TRIM1#

sub73372-10010

main73372-10010-04iEP8#..3D..(GL,S,SI)198912-199201

BLUE,TRIM8#

sub73372-10010

main73372-10010-04iEP8#..3D..(GL,S,SI)198912-199201

W(FULL FABRIC DOOR TRIM),BLUE,TRIM8#

sub73372-10010

main73372-10010-E0iEP8#..GL,GLI199201-199212

W(FULL FABRIC DOOR TRIM),OAK,TRIM4#

sub73372-10010

main73372-10010-E0iEP8#,NP80..3D..(STD,XL,XLI)199201-199212

OAK,TRIM4#

sub73372-10010

73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH

main73380-10070-03iEP8#,NP80198912-199405

GRAY,TRIM1#

sub73380-10070

main73380-10070-04iEP8#,NP80198912-199201

BLUE,TRIM8#

sub73380-10070

main73380-10070-E0iEP8#,NP80..GL,GLI,STD,XL,XLI199201-199212

OAK,TRIM4#

sub73380-10070

main73380-10130-B0iEP81,NP80199405-199601

GRAY,TRIM1#

main73470-10020-B0iEP81,NP80199212-199405

W(REAR CENTER SEAT BELT),GRAY,TRIM1#

main73470-10030-B0iEP81,NP80199405-199601

W(REAR CENTER SEAT BELT),GRAY,TRIM1#

73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH

main73380-10070-03iEP8#,NP80198912-199405

GRAY,TRIM1#

sub73380-10070

main73380-10070-04iEP8#,NP80..MTM;EP81..3FC..EFI198912-199201

BLUE,TRIM8#

sub73380-10070

main73380-10070-E0iEP8#,NP80..GL,GLI,STD,XL,XLI199201-199212

OAK,TRIM4#

sub73380-10070

main73380-10130-B0iEP81,NP80199405-199601

GRAY,TRIM1#

main73480-10020-03iEP8#,NP80198912-199212

W(REAR CENTER BELT),GRAY,TRIM1#

sub73480-10020

main73480-10020-04iEP8#,NP80..MTM;EP81..3FC..EFI198912-199201

W(REAR CENTER BELT),BLUE,TRIM8#

sub73480-10020

main73480-10020-E0iEP8#,NP80..GL,GLI,STD,XL,XLI199201-199212

W(REAR CENTER BELT),OAK,TRIM4#

sub73480-10020

main73480-10060-B0iEP81,NP80199212-199405

W(REAR CENTER BELT),GRAY,TRIM1#

main73480-10070-B0iEP81,NP80199405-199601

W(REAR CENTER BELT),GRAY,TRIM1#

9011910334

main90119-10334

9011911033

main90119-11033

9014950019

main90149-50019

9046805077

main90468-05077

9095001126

main90950-01126

9095001134

main90950-01134

9163140612

main91631-40612

9356054012

main93560-54012

24 parts on this diagram · 1 diagram in section
