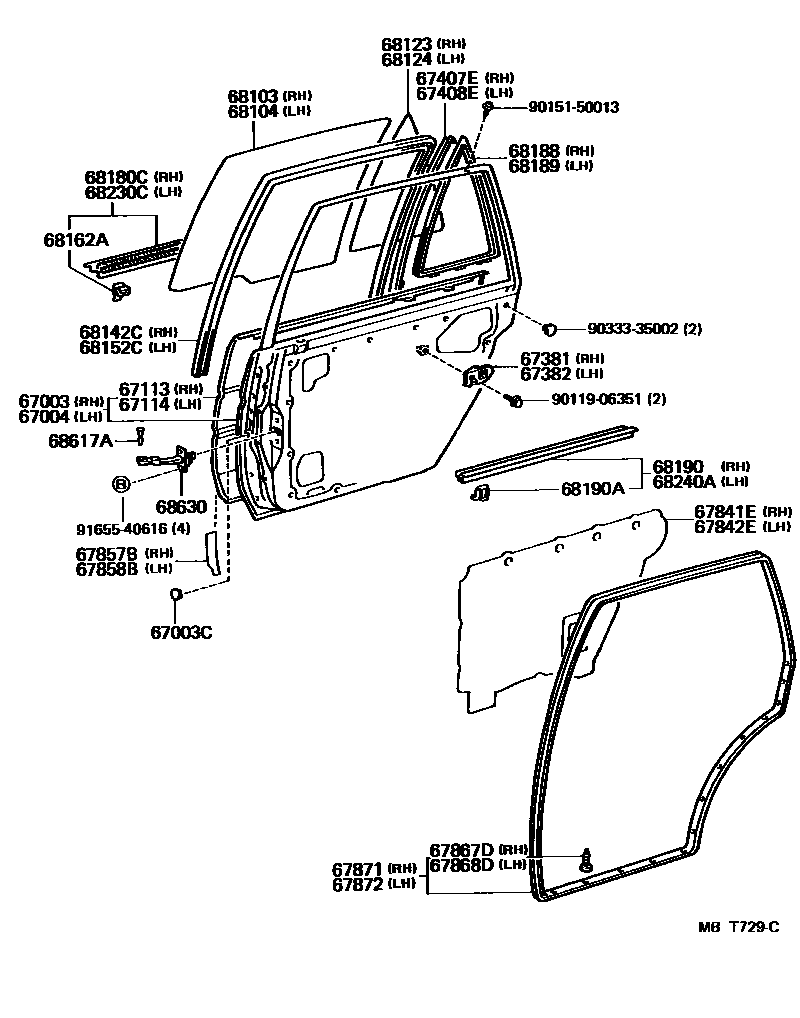

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
W(SIDE PROTECTION MOULDING)
W(SIDE PROTECTION MOULDING & POWER DOOR LOCK)
W(POWER DOOR LOCK)
67003CCUSHION, REAR DOOR PANEL
67004PANEL SUB-ASSY, REAR DOOR, LH
W(COLORED BUMPER) OR W(SIDE PROTECTION MOULDING
W(SIDE PROTECTION MOULDING)
W(SIDE PROTECTION MOULDING)
W(POWER DOOR LOCK & SIDE PROTECTION MOULDING) & W(COLORED BUMPER & POWER DOOR LOCK)
W(SIDE PROTECTION MOULDING & POWER DOOR LOCK)
W(POWER DOOR LOCK)
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67381BRACKET, REAR DOOR INSIDE PANEL, NO.1 RH
67382BRACKET, REAR DOOR INSIDE PANEL, NO.1 LH
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67857BPROTECTOR, REAR DOOR PANEL, RH
67858BPROTECTOR, REAR DOOR PANEL, LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*TT,T=3.1,BLUE
68104GLASS SUB-ASSY, REAR DOOR, LH
*TT,T=3.1,BLUE
68123GLASS, REAR DOOR WINDOW, RH
*TT,T=3.1,BLUE
68124GLASS, REAR DOOR WINDOW, LH
*TT,T=3.1,BLUE
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68162ACLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP)
RH
LH
68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
W(FULL TRIM BOARD)
68190ACLIP(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET)
RH
LH
68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH
68240AWEATHERSTRIP ASSY, REAR DOOR GLASS, INNER LH
W(FULL TRIM BOARD)
68617APIN, REAR DOOR CHECK
68630CHECK ASSY, REAR DOOR
RH
9011906351
9015150013
9033335002
9165540616
37 parts on this diagram · 3 diagrams in section
