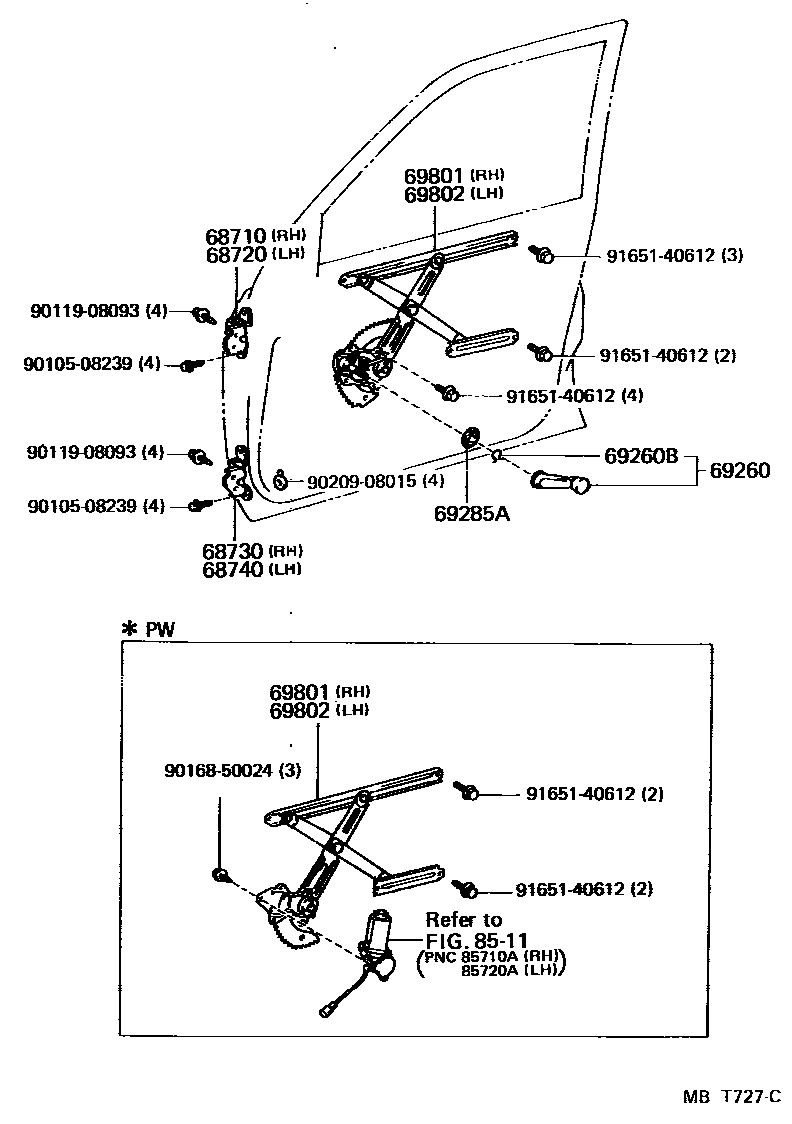

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-10030iEP81,NP80..DSL,EFI¥2,950198912-199601

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-10030iEP8#,NP80¥2,950198912-199601

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-10030iEP8#,NP80¥2,950198912-199601

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-10030iEP8#,NP80¥2,950198912-199601

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-14030-09iEP8#,NP80198912-199201

DARK BLUE,TRIM8#

sub69260-14030¥1,610

main69260-14030-53iEP8#,NP80198912-199601

SHADOW GRAY,TRIM1#

sub69260-14030¥1,610

main69260-14030-E0iEP8#,NP80..GL,GLI,STD,XL,XLI199201-199212

OAK,TRIM4#

sub69260-14030¥1,610

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iEP8#,NP80¥180198912-199601

sub90520-01274¥160

69285APLATE, DOOR VENT WINDOW CONTROL HANDLE

main69285-22010-08iEP8#,NP80..GL,GLI,STD,XL,XLI199201-199212

NATURAL WHITE,TRIM1#,4#

sub69285-22010¥330

main69285-22010-08iEP8#,NP80198912-199201

NATURAL WHITE,TRIM1#,8#

sub69285-22010¥330

main69285-22010-08iEP81..S,SI199201-199601

NATURAL WHITE,TRIM1#

sub69285-22010¥330

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-10040iEP81..LHD..5D..5F¥6,300199506-199512

I-SPORT

main69801-10040iEP81..LHD..5D..5F¥6,300199508-199512

COMFORT

main69801-10040iEP81..LHD..5D..5F¥6,300199507-199512

DANCE STAR

main69801-10040iEP81..GL¥6,300198912-199201

W(POWER WINDOW)

main69801-10050iEP81..LHD..3D..XLI¥6,300199508-199512

COMFORT

main69801-10050iEP81..SI;EP81..RHD..3D¥6,300198912-199601

W(POWER WINDOW)

main69801-10050iEP81..LHD..5D..5F¥6,300199507-199512

DANCE STAR

main69810-10080iEP8#,NP80¥6,300198912-199601

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-10040iEP81..GL¥6,300198912-199201

W(POWER WINDOW)

main69802-10040iEP81..LHD..5D..5F¥6,300199506-199512

I-SPORT

main69802-10040iEP81..LHD..5D..5F¥6,300199507-199512

DANCE STAR

main69802-10040iEP81..LHD..5D..5F¥6,300199508-199512

COMFORT

main69802-10050iEP81..LHD..3D..XLI¥6,300199507-199512

DANCE STAR

main69802-10050iEP81..SI;EP81..RHD..3D¥6,300198912-199601

W(POWER WINDOW)

main69802-10050iEP81..LHD..3D..XLI¥6,300199508-199512

COMFORT

main69820-10090iEP8#,NP80¥6,300198912-199601

8511

9010508239

main90105-08239¥160

9011908093

main90119-08093¥90

9016850024

main90168-50024¥120

9020908015

main90209-08015¥220

9165140612

main91651-40612¥70

15 parts on this diagram · 1 diagram in section
