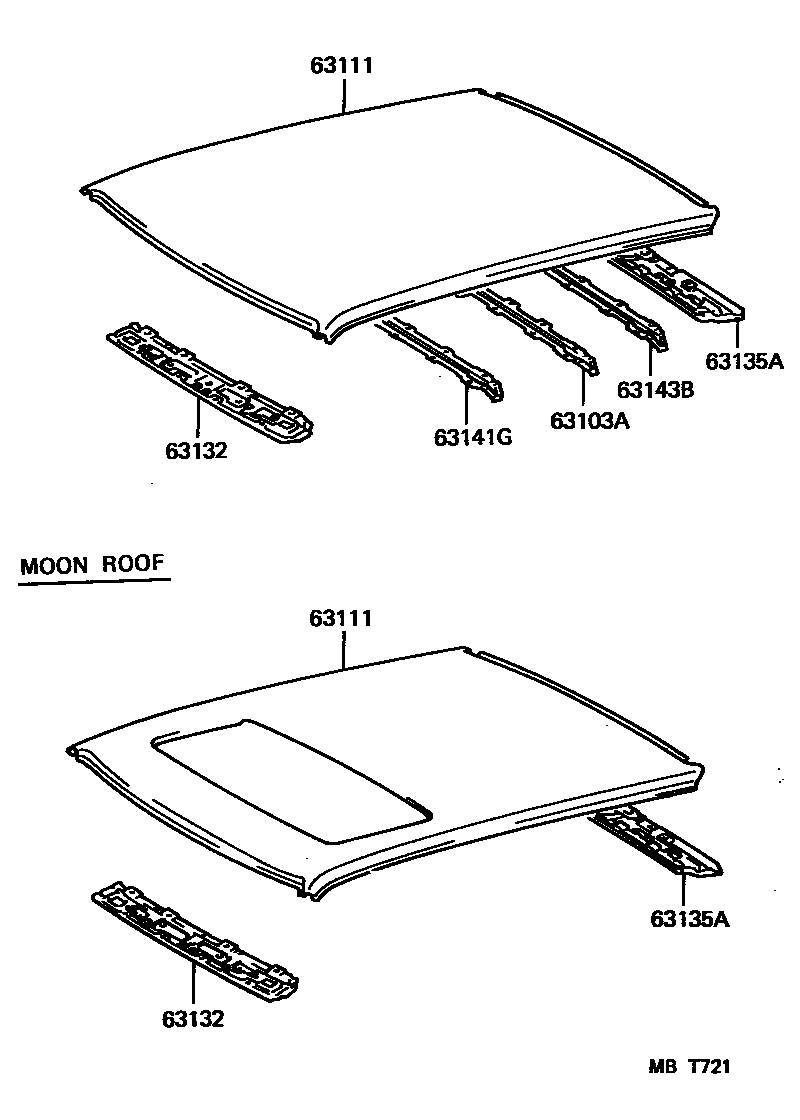

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1W(MOON ROOF) 0003 1W(CANVASTOP) 0004 1W(CANVASTOP)

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-10020iEP8#,NP80198912-199601

63111PANEL, ROOF

main63111-10100iEP8#,NP80198912-199601

main63111-10140iEP8#..3D..(GL,S,SI,XL,XLI)198912-199101

W(CANVASTOP)

main63111-10160iEP8#..3D..(GL,GLI,S,SI,XL,XLI)199101-199405

W(CANVASTOP & W/O SPOILER)

main63111-10170iEP8#..3D..(GL,GLI,S,SI,XL,XLI)199101-199212

W(CANVASTOP & W/O SPOILER) & W(REAR WINDOW WIPER)

sub63111-10160

main63111-10900iEP81..STD199403-199404

BELGIUM SPEC,W(MOON ROOF)

main63111-10900iEP8#..GL,GLI,S,SI,XL,XLI198912-199601

W(MOON ROOF)

63132PANEL, WINDSHIELD HEADER, INNER

main63132-10090iEP8#,NP80198912-199601

63135AFRAME, BACK DOOR OPENING, LOWER

main63135-10030iEP8#,NP80198912-199601

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-10060iEP8#,NP80198912-199601

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-10020iEP8#,NP80198912-199601

6 parts on this diagram · 4 diagrams in section
