MAT & CARPET

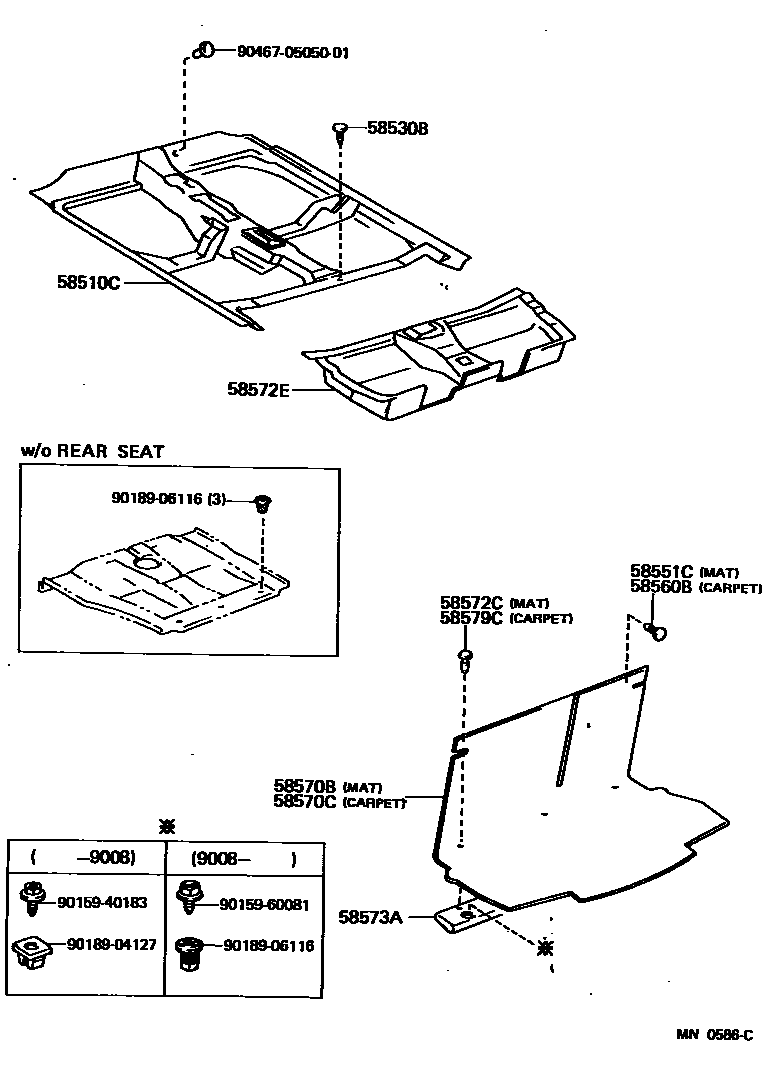

Parts diagram
58510CCARPET ASSY, FRONT FLOOR, FRONT
main58510-1C150-03i198912-199102
GRAY,TRIM1#
main58510-1C150-04i198912-199102
BLUE,TRIM8#
main58510-1C151-E0i199201-199212
OAK,TRIM4#
main58510-1C151-P0i199102-199212
GRAY,TRIM1#
main58510-1C151-W3i199102-199201
BLUE,TRIM8#
main58510-1C152-P0i199212-199601
GRAY,TRIM1#
main58510-1C160-03i198912-199102
W(SEMI CONSOLE BOX OR FULL CONSOLE BOX),GRAY,TRIM1#
main58510-1C160-04i198912-199102
W(SEMI CONSOLE BOX OR FULL CONSOLE BOX),BLUE,TRIM8#
main58510-1C161-E0i199201-199212
W(SEMI CONSOLE BOX OR FULL CONSOLE BOX),OAK,TRIM4#
main58510-1C161-P0i199102-199212
W(SEMI CONSOLE BOX OR FULL CONSOLE BOX),GRAY,TRIM1#
main58510-1C161-W3i199102-199201
W(SEMI CONSOLE BOX OR FULL CONSOLE BOX),BLUE,TRIM8#
main58510-1C162-P0i199212-199405
GRAY,TRIM1#
main58510-1C170-03i198912-199102
COLD SPEC,GRAY,TRIM1#
main58510-1C170-04i198912-199102
COLD SPEC,BLUE,TRIM8#
main58510-1C171-E0i199201-199212
COLD SPEC,OAK,TRIM4#
main58510-1C171-P0i199201-199212
COLD SPEC,GRAY,TRIM1#
main58510-1C171-W3i199102-199201
COLD SPEC,BLUE,TRIM8#
main58510-1C172-P0i199212-199405
COLD SPEC & W(SEMI CONSOLE BOX OR FULL CONSOLE BOX),GRAY,TRIM1#
main58510-1C180-03i198912-199102
GRAY,TRIM1#
main58510-1C180-04i198912-199102
BLUE,TRIM8#
main58510-1C181-E0i199201-199212
OAK,TRIM4#
main58510-1C181-P0i199102-199212
GRAY,TRIM1#
main58510-1C181-W3i199102-199201
BLUE,TRIM8#
main58510-1C182-P0i199212-199601
GRAY,TRIM1#
main58510-1C190-03i198912-199102
W(SEMI CONSOLE BOX OR FULL CONSOLE BOX),GRAY,TRIM1#
main58510-1C190-04i198912-199102
W(SEMI CONSOLE BOX OR FULL CONSOLE BOX),BLUE,TRIM8#
main58510-1C191-E0i199201-199212
W(SEMI CONSOLE BOX OR FULL CONSOLE BOX),OAK,TRIM4#
main58510-1C191-P0i199102-199212
W(SEMI CONSOLE BOX OR FULL CONSOLE BOX),GRAY,TRIM1#
main58510-1C191-W3i199102-199201
W(SEMI CONSOLE BOX OR FULL CONSOLE BOX),BLUE,TRIM8#
main58510-1C192-P0i199212-199601
W(SEMI CONSOLE BOX OR FULL CONSOLE BOX),GRAY,TRIM1#
main58510-1C280-03i198912-199102
GRAY,TRIM1#
main58510-1C280-04i198912-199102
BLUE,TRIM8#
main58510-1C281-P0i199102-199212
GRAY,TRIM1#
main58510-1C281-W3i199102-199201
BLUE,TRIM8#
main58510-1C282-P0i199212-199601
GRAY,TRIM1#
main58510-1C290-03i198912-199102
W(SEMI CONSOLE BOX OR FULL CONSOLE BOX),GRAY,TRIM1#
main58510-1C290-04i198912-199102
W(SEMI CONSOLE BOX OR FULL CONSOLE BOX),BLUE,TRIM8#
main58510-1C291-E0i199201-199212
W(SEMI CONSOLE BOX OR FULL CONSOLE BOX),OAK,TRIM4#
main58510-1C291-J0i199102-199201
W(SEMI CONSOLE BOX OR FULL CONSOLE BOX),BLUE,TRIM8#
main58510-1C291-P0i199102-199212
W(SEMI CONSOLE BOX OR FULL CONSOLE BOX),GRAY,TRIM1#
main58510-1C292-P0i199212-199601
W(SEMI CONSOLE BOX OR FULL CONSOLE BOX),GRAY,TRIM1#
main58510-1C310-03i198912-199102
GRAY,TRIM1#
main58510-1C310-04i198912-199102
BLUE,TRIM8#
main58510-1C311-E0i199201-199212
OAK,TRIM4#
main58510-1C311-P0i199102-199212
GRAY,TRIM1#
main58510-1C311-W3i199102-199201
BLUE,TRIM8#
main58510-1C312-P0i199212-199601
GRAY,TRIM1#
main58510-1C320-03i198912-199102
W(SEMI CONSOLE BOX OR FULL CONSOLE BOX),GRAY,TRIM1#
main58510-1C320-04i198912-199102
W(SEMI CONSOLE BOX OR FULL CONSOLE BOX),BLUE,TRIM8#
main58510-1C321-E0i199201-199212
W(SEMI CONSOLE BOX OR FULL CONSOLE BOX),OAK,TRIM4#
main58510-1C321-P0i199102-199212
W(SEMI CONSOLE BOX OR FULL CONSOLE BOX),GRAY,TRIM1#
main58510-1C321-W3i199102-199201
W(SEMI CONSOLE BOX OR FULL CONSOLE BOX),BLUE,TRIM8#
main58510-1C322-P0i199212-199601
W(SEMI CONSOLE BOX OR FULL CONSOLE BOX),GRAY,TRIM1#
main58510-1C350-03i198912-199102
COLD SPEC,GRAY,TRIM1#
main58510-1C350-04i198912-199102
COLD SPEC,BLUE,TRIM8#
main58510-1C351-E0i199201-199212
COLD SPEC & W(SEMI CONSOLE BOX OR FULL CONSOLE BOX),OAK,TRIM4#
main58510-1C351-P0i199102-199201
COLD SPEC,GRAY,TRIM1#
main58510-1C351-W3i199102-199201
COLD SPEC,BLUE,TRIM8#
main58510-1C352-P0i199212-199405
COLD SPEC & W(SEMI CONSOLE BOX OR FULL CONSOL BOX),GRAY,TRIM1#
58530BCLIP(FOR FRONT FLOOR CARPET)
main90467-06016-01×3i198912-199201
BLACK,TRIM1#,8#
sub90467-07049
main90467-06016-E1×3i199201-199212
OAK,TRIM4#
sub90467-07049
main90467-06016-P0×3i199201-199411
GRAY,TRIM1#
sub90467-07049
58551CCLIP(FOR FLOOR MAT, REAR)
main90467-06016-01×15i198912-199201
BLACK,TRIM1#,8#
sub90467-07049
main90467-06016-E1×15i199201-199212
OAK,TRIM4#
sub90467-07049
main90467-06016-P0×15i199201-199405
GRAY,TRIM1#
sub90467-07049
58560BCLIP(FOR FLOOR CARPET, REAR)
main90467-06016-01×14i198912-199201
BLACK,TRIM1#,8#
sub90467-07049
main90467-06016-E1×14i199201-199212
OAK,TRIM4#
sub90467-07049
main90467-06016-P0×14i199201-199601
GRAY,TRIM1#
sub90467-07049
58570BMAT ASSY, REAR FLOOR
main58570-10310-03i198912-199309
GRAY,TRIM1#
main58570-10310-04i198912-199201
BLUE,TRIM8#
main58570-10310-E0i199201-199212
OAK,TRIM4#
main58570-10311-P0i199309-199405
GRAY,TRIM1#
58570CCARPET ASSY, REAR FLOOR
main58570-10220-03i198912-199309
GRAY,TRIM1#
main58570-10220-04i198912-199201
BLUE,TRIM8#
main58570-10220-E0i199201-199212
OAK,TRIM4#
main58570-10221-P0i199309-199601
GRAY,TRIM1#
58572CCLIP, REAR FLOOR MAT SET
main90467-09032-34×3i198912-199201
BLUE,TRIM8#
main90467-09032-43×3i198912-199308
GRAY,TRIM1#
main90467-09032-E0×3i199201-199212
OAK,TRIM4#
58572EMAT, REAR FLOOR, FRONT
main58572-10010i198912-199601
58573APLATE, REAR FLOOR MAT SUPPORT
main58573-10010i198912-199212
main58573-10021i199212-199309
58579CCLIP, REAR FLOOR CARPET SET
main90467-09032-34×3i198912-199201
BLUE,TRIM8#
main90467-09032-43×3i198912-199309
GRAY,TRIM1#
main90467-09032-E0×3i199201-199212
OAK,TRIM4#
9015940183
main90159-40183
9015960081
main90159-60081
9018904127
main90189-04127
9018906116
main90189-06116
904670505001
main90467-0505001

15 parts on this diagram · 1 diagram in section
