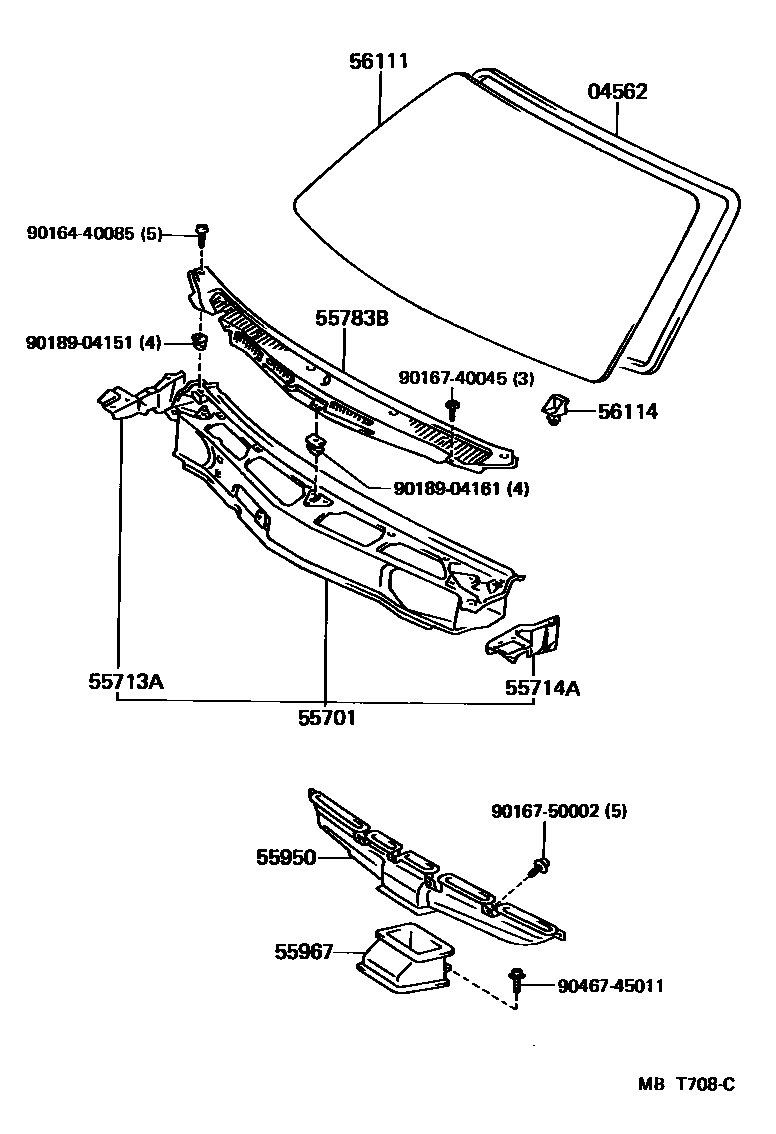

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-12010iEP8#,NP80¥2,100198912-199601

55701PANEL SUB-ASSY, COWL

main55700-10200iEP81..RHD¥36,400199201-199601

sub55700-10902¥36,400

main55700-10210iEP8#..RHD..CBR¥36,400198912-199212

sub55700-10200¥36,400

main55700-10220iEP81..LHD..EFI¥36,400198912-199601

sub55700-10903¥36,400

main55700-10230iNP80¥36,400198912-199601

sub55700-10903¥36,400

main55700-10240iEP8#..LHD..CBR¥36,400198912-199212

sub55700-10220¥36,400

55713APANEL, COWL TOP SIDE, RH

main55713-10050iEP8#,NP80¥2,570198912-199601

55714APANEL, COWL TOP SIDE, LH

main55714-10040iEP8#,NP80¥2,570198912-199601

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55708-10020iEP8#..RHD¥10,500198912-199601

main55708-10040iEP8#,NP80..LHD¥10,500198912-199601

55950NOZZLE ASSY, DEFROSTER

main55950-10050iEP8#..RHD¥5,000198912-199601

main55950-10060iEP8#,NP80..LHD¥5,300198912-199601

55967NOZZLE, DEFROSTER, LOWER

main55967-10020iEP8#,NP80¥1,390198912-199601

56111GLASS, WINDSHIELD

main56111-10300iEP8#,NP80198912-199212

*TEM,T=5.0,CLEAR

sub56111-10340¥84,300

main56111-10320iEP8#,NP80198912-199212

*TT,T=5.0

sub56111-10340¥84,300

main56111-10330iEP8#,NP80¥78,100198912-199601

*LAM,T=4.7,CLEAR

sub56111-10290¥83,800

main56111-10340iEP8#,NP80¥84,300198912-199601

*TL,T=4.7

56114RETAINER, WINDSHIELD GLASS

main56114-10010iEP8#,NP80¥390198912-199601

9016440085

main90164-40085¥120

9016740045

main90167-40045¥120

9016750002

main90167-50002¥120

9018904151

main90189-04151¥130

9018904161

main90189-04161¥130

9046745011

main90467-45011

15 parts on this diagram · 1 diagram in section
