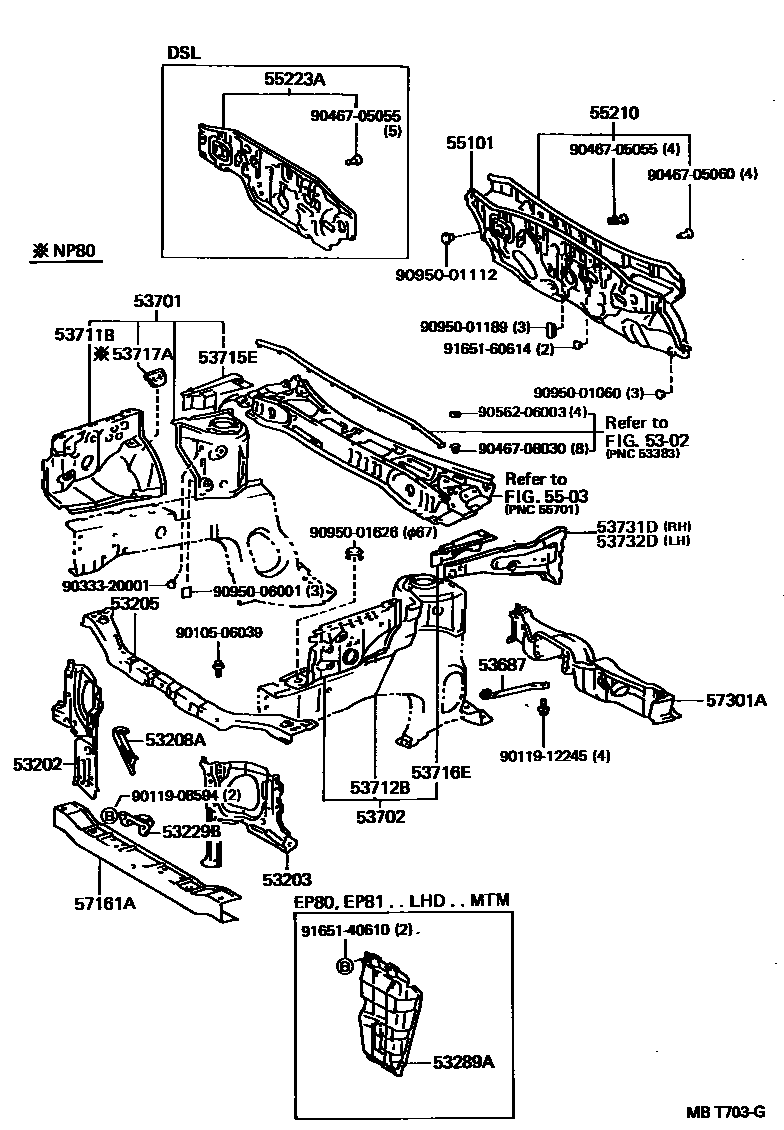

FRONT FENDER APRON & DASH PANEL

5302

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-10140iEP8#,NP80¥3,040198912-199601

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-10190iNP80¥3,040198912-199601

main53203-10210iEP8#¥3,040198912-199601

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-10900iEP81,NP80¥8,100199312-199601

main53205-10901iEP81..LHD..5F¥8,100199312-199405

SWITZERLAND SPEC

main53216-10904iEP81,NP80..MTM;EP81..3FC..EFI¥8,000198912-199312

W(AIR CONDITIONER)

sub53205-10900¥8,100

main53216-10905iEP81..LHD..5F..EFI¥8,000198912-199312

SWITZERLAND SPEC

sub53205-10901¥8,100

main53216-10905iEP80;EP81..3FC..CBR¥8,000198912-199212

sub53205-10901¥8,100

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-10090iEP8#,NP80¥1,670198912-199601

53229BBRACKET, RADIATOR MOUNTING, LOWER NO.2

main53229-10040iNP80;EP81..3FC..EFI¥820198912-199601

main53229-10050iEP80..LHD;EP81..MTM..XLI;EP81..GL,GLI,S,SI,STD,XL¥670198912-199601

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-10050iEP80;EP81..3FC..CBR¥4,640198912-199212

53687BRACE, FRONT SUSPENSION LOWER TO STEERING MEMBER, RH

main53687-10030iEP8#,NP80¥2,170198912-199601

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-10340iEP8#,NP80¥15,800198912-199205

sub53701-10360¥15,800

main53701-10360iNP80¥15,800199201-199408

sub53701-10361¥16,000

main53701-10361iEP81,NP80¥16,000199408-199601

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-10360iEP8#,NP80¥15,800199205-199408

sub53702-10361¥16,000

main53702-10361iEP81,NP80¥16,000199408-199601

main53702-10390iEP8#,NP80¥15,800198912-199205

sub53702-10360¥15,800

53711BAPRON, FRONT FENDER, FRONT RH

main53711-10140iEP8#,NP80¥6,100198912-199205

sub53711-16140¥6,000

main53711-10150iEP8#,NP80¥6,000199205-199408

sub53711-10151¥6,100

main53711-10151iEP81,NP80¥6,100199408-199601

53712BAPRON, FRONT FENDER, FRONT LH

main53712-16060iEP8#,NP80¥6,100198912-199205

sub53712-16080¥6,100

main53712-16070iEP8#,NP80¥6,000199205-199408

sub53712-16071¥6,100

main53712-16071iEP81,NP80¥6,100199408-199601

53715EEXTENSION, FRONT FENDER APRON, REAR RH

main53715-10050iEP8#,NP80¥2,300198912-199601

53716EEXTENSION, FRONT FENDER APRON, REAR LH

main53716-10050iEP8#,NP80¥2,300198912-199601

53717APLATE, FENDER APRON

main53717-10040iNP80¥680199201-199601

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-10050iEP8#,NP80¥6,300198912-199405

sub53731-10060¥6,300

main53731-10060iEP8#..LHD¥6,300198912-199405

W(ABS)

main53731-10060iEP81,NP80¥6,300199405-199601

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-10050iEP8#,NP80¥6,300198912-199405

sub53732-10060¥6,300

main53732-10060iEP81,NP80¥6,300199405-199601

main53732-10060iEP8#..LHD¥6,300198912-199405

W(ABS)

5503

55101PANEL SUB-ASSY, DASH

main55101-10942iEP81..RHD¥22,400198912-199201

sub55101-10944¥22,400

main55101-10948iEP80..RHD;EP81..RHD..EFI¥22,400198912-199601

sub55101-10964¥22,400

sub90333-20001¥70

main55101-10950iEP81..LHD..MTM..CBR¥22,400198912-199212

sub55101-10965¥22,400

main55101-10952iEP80..LHD¥22,400198912-199212

sub55101-10950¥22,400

sub90333-25003¥70

main55101-10953iEP81..3FC..CBR¥22,400198912-199201

sub55101-10965¥22,400

sub90333-40001¥100

main55101-10954iEP81..LHD..EFI¥22,400198912-199601

sub55101-10965¥22,400

main55101-10955iNP80¥22,400198912-199601

sub55101-10965¥22,400

55210INSULATOR ASSY, DASH PANEL

main55210-10180iEP8#..RHD¥15,400198912-199601

main55210-10200iEP8#..LHD¥15,400198912-199601

main55210-10210iEP81..3FC¥15,400198912-199112

main55210-10240iNP80¥17,500198912-199601

55223AINSULATOR, DASH PANEL, OUTER

main55223-10050iNP80¥13,200198912-199601

57161AMEMBER, FRONT CROSS, FRONT W/REAR

main57161-10908iNP80;EP81..3FC..EFI¥12,000198912-199601

main57161-10909iEP80..LHD;EP81..3FC..CBR¥12,000198912-199212

W(AIR CONDITIONER)

main57161-10909iEP81..MTM¥12,000198912-199601

main57161-10912iEP80;EP81..3FC..CBR¥12,000198912-199212

main57161-10912iEP81..LHD..5F..EFI¥12,000198912-199405

SWITZERLAND SPEC

57301AMEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT

main57301-10070iEP8#,NP80¥35,100198912-199404

sub57301-10071¥35,100

main57301-10071iEP81,NP80¥35,100199404-199601

9010506039

main90105-06039

9011908594

main90119-08594¥90

9011912245

main90119-12245¥260

9033320001

main90333-20001¥70

9046705055

main90467-05055¥240

9046705060

main90467-05060¥240

9046708030

main90467-08030¥170

9056206003

main90562-06003¥130

9095001060

main90950-01060¥200

9095001112

main90950-01112¥190

9095001189

main90950-01189¥240

9095001626

main90950-01626¥240

9095006001

main90950-06001¥170

9165140610

main91651-40610¥160

9165160614

main91651-60614¥70

38 parts on this diagram · 1 diagram in section
