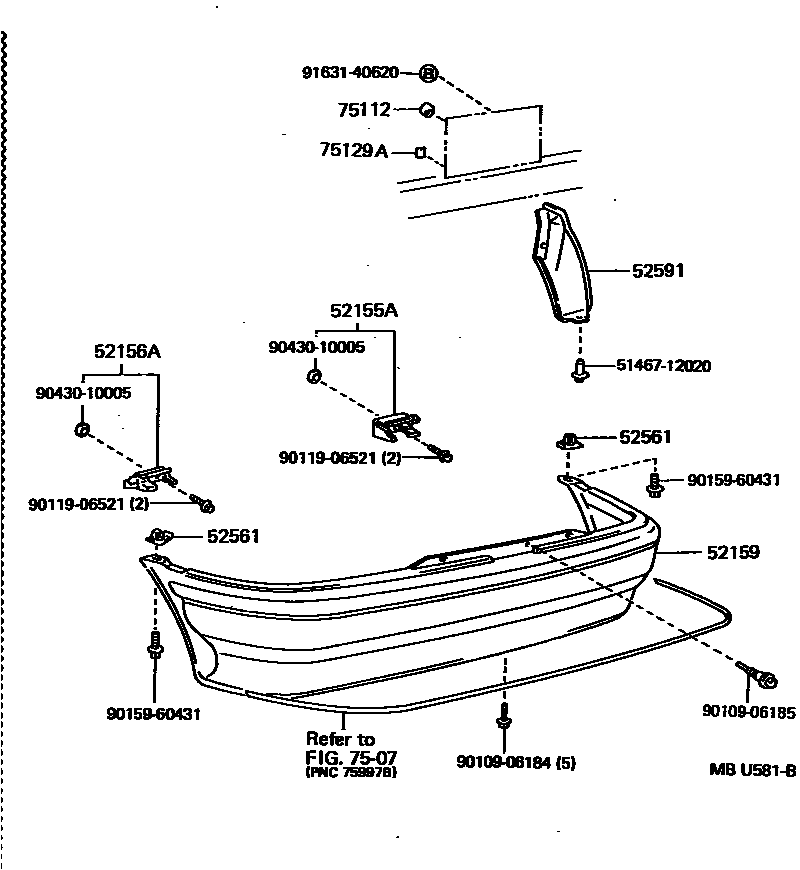

REAR BUMPER & BUMPER STAY

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-10040iEP8#,NP80198912-199601

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-10030iEP8#,NP80198912-199601

52159COVER, REAR BUMPER

main52159-10160iEP8#,NP80..GL,GLI,STD,XL,XLI198912-199601

sub52159-10905

main52159-10180iEP8#,NP80..GL,GLI,STD,XL,XLI198912-199601

W(MUD GUARD)

sub52159-10906

main52159-10900iEP8#,NP80..GL,GLI,XL,XLI198912-199601

W(COLORED BUMPER)

main52159-10901iEP81..S,SI198912-199601

W(COLORED BUMPER)

52561RETAINER, REAR BUMPER, UPPER CENTER

main52561-10030×2iEP8#,NP80198912-199601

52591SEAL, REAR BUMPER SIDE, RH

main52591-10020iEP8#,NP80..GL,GLI,STD,XL,XLI198912-199601

main52591-10030iEP8#,NP80..GL,GLI,STD,XL,XLI198912-199601

W(MUD GUARD)

7507

75112BASE, LICENSE PLATE BRACKET

main75112-10020iEP81..EFI198912-199201

75129ACUSHION, REAR LICENCE PLATE

main75129-10010iEP81..EFI198912-199201

5146712020RETAINER, ENGINE UNDER COVER

main51467-12020

9010906184

main90109-06184

9010906185

main90109-06185

9011906521

main90119-06521

9015960431

main90159-60431

9043010005

main90430-10005

9163140620

main91631-40620

15 parts on this diagram · 1 diagram in section
