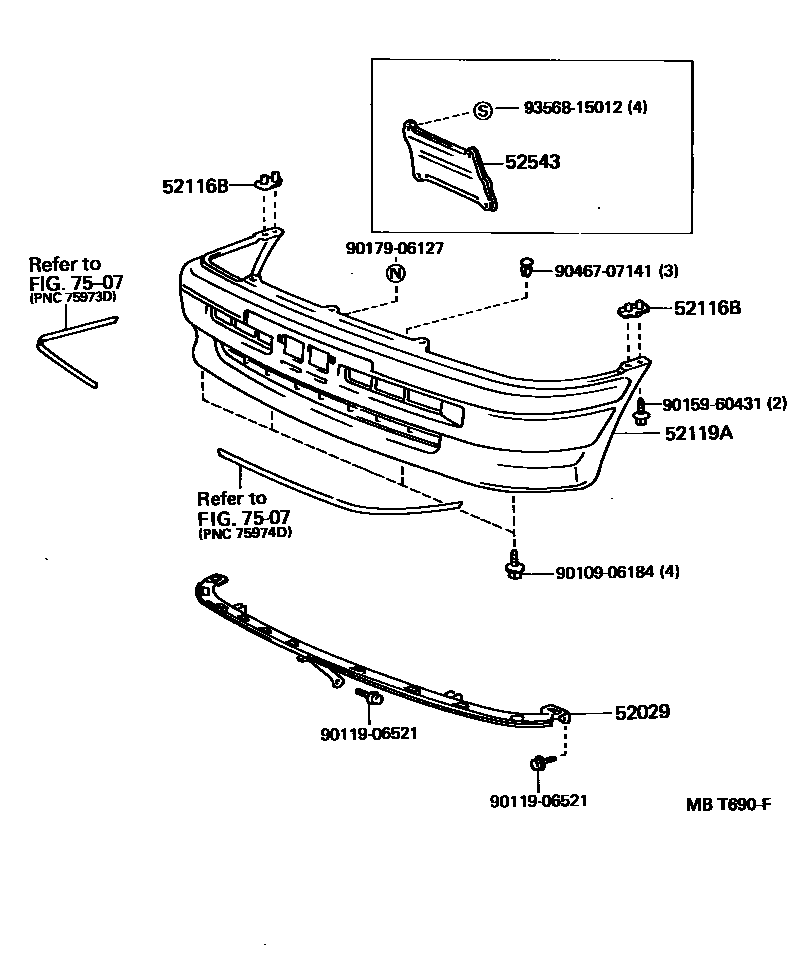

FRONT BUMPER & BUMPER STAY

52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

main52029-10010iEP8#,NP80198912-199601

52116BRETAINER, FRONT BUMPER

main52116-10080iEP8#,NP80198912-199103

sub52116-10090

main52116-10090iEP8#,NP80199103-199601

52119ACOVER, FRONT BUMPER

main52119-10130iEP8#,NP80198912-199601

main52119-10900iEP81..RHD;EP81..3FC;EP80,NP80..GL,XL198912-199601

COLORED BUMPER

sub52119-10130

main52119-10900iEP81..RHD;EP81..3FC;EP80,NP80..GL,XL198912-199201

W(COLORED BUMPER & AIR CONDITIONER)

sub52119-10130

52543SEAL, FRONT BUMPER SIDE, RH

main52543-10020iEP80;EP81..3FC..CBR198912-199212

7507

9010906184

main90109-06184

9011906521

main90119-06521

9015960431

main90159-60431

9017906127

main90179-06127

9046707141

main90467-07141

9356815012

main93568-15012

11 parts on this diagram · 1 diagram in section
