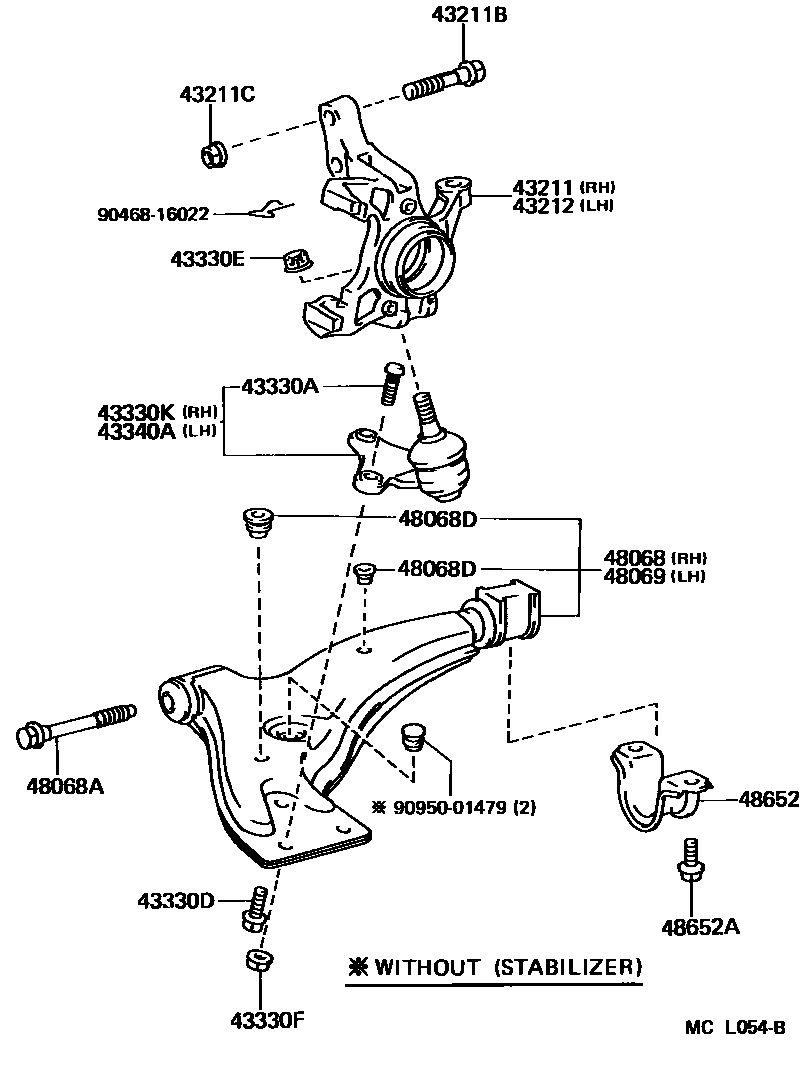

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-10060iEP8#..LHD198912-199201

W(ABS)

main43211-10061iEP8#..LHD199201-199506

W(ABS)

sub43211-10062

sub90389-16021

main43211-10062iEP81..LHD199506-199601

W(ABS)

sub43211-59045

main43211-10080iEP8#,NP80198912-199201

main43211-10081iEP8#,NP80199201-199601

43211BBOLT (FOR ABSORBER SETTING)

main90105-15001iEP8#,NP80199004-199601

main90105-15002iEP8#,NP80198912-199004

main90105-15004iEP8#,NP80199201-199601

main90105-15005iEP8#,NP80199201-199601

main90105-15006iEP8#,NP80199201-199601

43211CNUT (FOR ABSORBER SETTING)

main90179-15001iEP8#,NP80199004-199601

main90179-15003iEP8#,NP80198912-199004

43212KNUCKLE, STEERING, LH

main43212-10040iEP8#..LHD198912-199201

W(ABS)

main43212-10041iEP8#..LHD199201-199506

W(ABS)

sub43212-10042

sub90389-16021

main43212-10042iEP81..LHD199506-199601

W(ABS)

sub43212-59045

main43212-10060iEP8#,NP80198912-199201

main43212-10061iEP8#,NP80199201-199601

43330ASERRATION BOLT(FOR FRONT LOWER BALL JOINT)

main90114-10036iEP8#,NP80198912-199601

sub90114-10032

43330DBOLT (FOR FRONT LOWER BALL JOINT)

main90119-10407iEP8#,NP80198912-199601

43330ENUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING)

main90171-12007iEP8#,NP80198912-199601

43330FNUT (FOR FRONT LOWER BALL JOINT SETTING)

main90179-10088iEP8#,NP80198912-199601

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-19085iEP8#,NP80198912-199601

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43340-19025iEP8#,NP80198912-199601

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-10060iEP8#,NP80..GL,STD,XL,XLI198912-199201

main48068-10061iEP8#,NP80..GL,GLI,STD,XL,XLI199201-199601

main48068-10080iEP81..S,SI198912-199201

sub48068-16060

main48068-16060iEP81..S,SI199201-199601

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90119-12099iEP8#,NP80198912-199601

48068DPLUG, HOLE(FOR FRONT SUSPENSION LOWER ARM)

main90950-01414iEP8#,NP80198912-199601

H=11,OD=16

main90950-01478iEP8#,NP80198912-199601

H=13,OD=21

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-10040iEP8#,NP80..GL,STD,XL,XLI198912-199201

main48069-10041iEP8#,NP80..GL,GLI,STD,XL,XLI199201-199601

main48069-10060iEP81..S,SI198912-199201

sub48069-16060

main48069-16060iEP81..S,SI199201-199601

48652BRACKET, FRONT LOWER ARM

main48652-10020iEP8#,NP80198912-199601

48652ABOLT(FOR FRONT LOWER ARM BRACKET)

main90105-12061iEP8#,NP80198912-199508

main90901-19018iEP81,NP80199508-199601

9046816022

main90468-16022

9095001479

main90950-01479

18 parts on this diagram · 1 diagram in section
