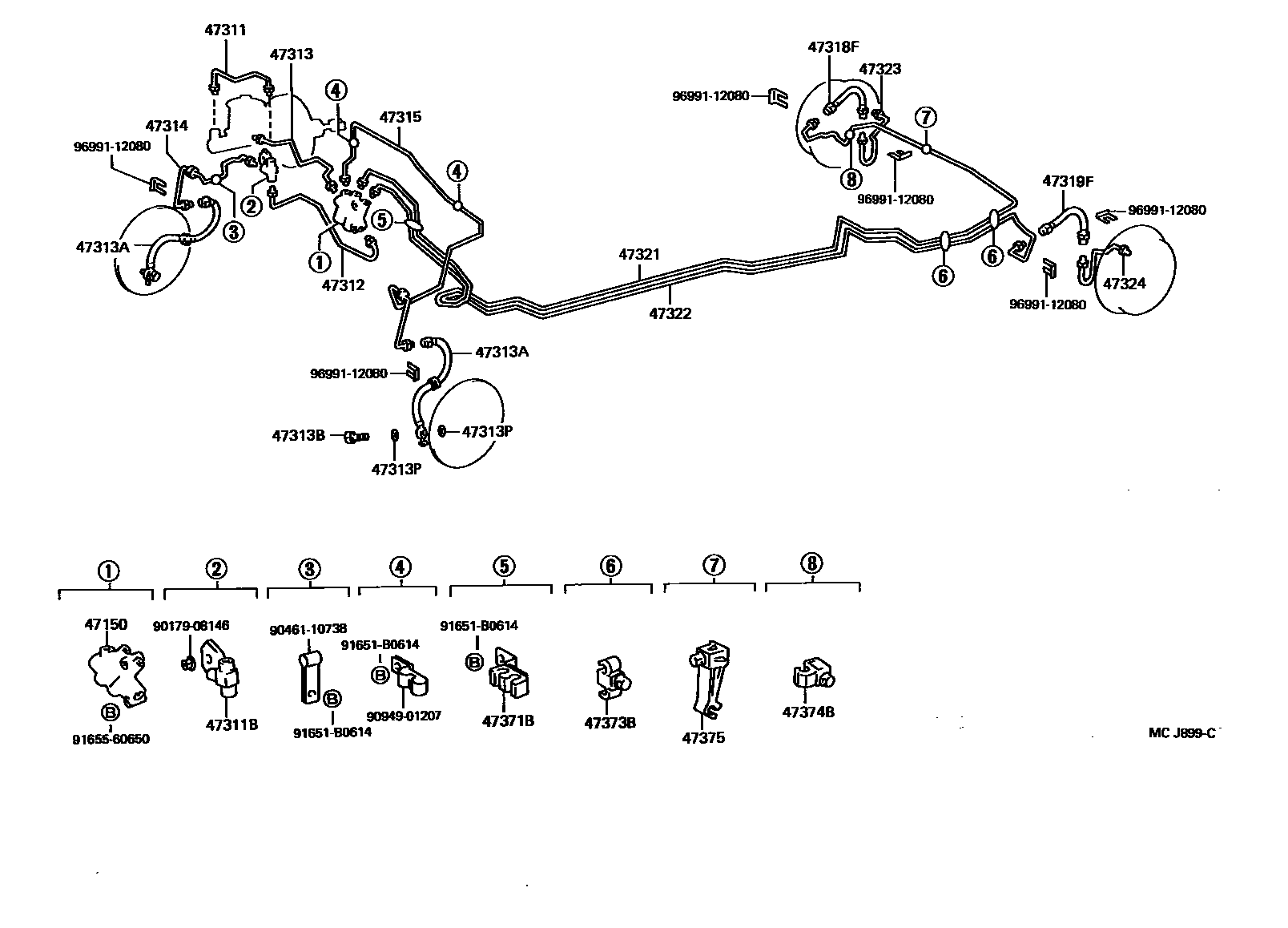

BRAKE TUBE & CLAMP
47150VALVE ASSY, PROPORTIONING
sub47150-12230
47311TUBE, FRONT BRAKE, NO.1
W(ABS)
47311BWAY, NO.1(FOR FRONT BRAKE TUBE)
W(ABS)
47313TUBE, FRONT BRAKE, NO.3
W(ABS)
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
RH
LH
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47315TUBE, FRONT BRAKE, NO.5
W(ABS)
47318TUBE, FRONT BRAKE, NO.8
47318FHOSE, FLEXIBLE(FOR REAR RH)
47319FHOSE, FLEXIBLE(FOR REAR LH)
47321TUBE, REAR BRAKE, NO.1
47322TUBE, REAR BRAKE, NO.2
47323TUBE, REAR BRAKE, NO.3
47324TUBE, REAR BRAKE, NO.4
47371BCLAMP, BRAKE TUBE, NO.6
47373BCLAMP, BRAKE TUBE, NO.3
W(ABS)
47374BCLAMP, BRAKE TUBE, NO.4
W(ABS)
47375CLAMP, BRAKE TUBE, NO.5
9017908146
main90179-08146
9046110738
main90461-10738
9094901207
main90949-01207
91651B0614
main91651-B0614
9165560650
main91655-60650
9699112080
main96991-12080
27 parts on this diagram · 5 diagrams in section
