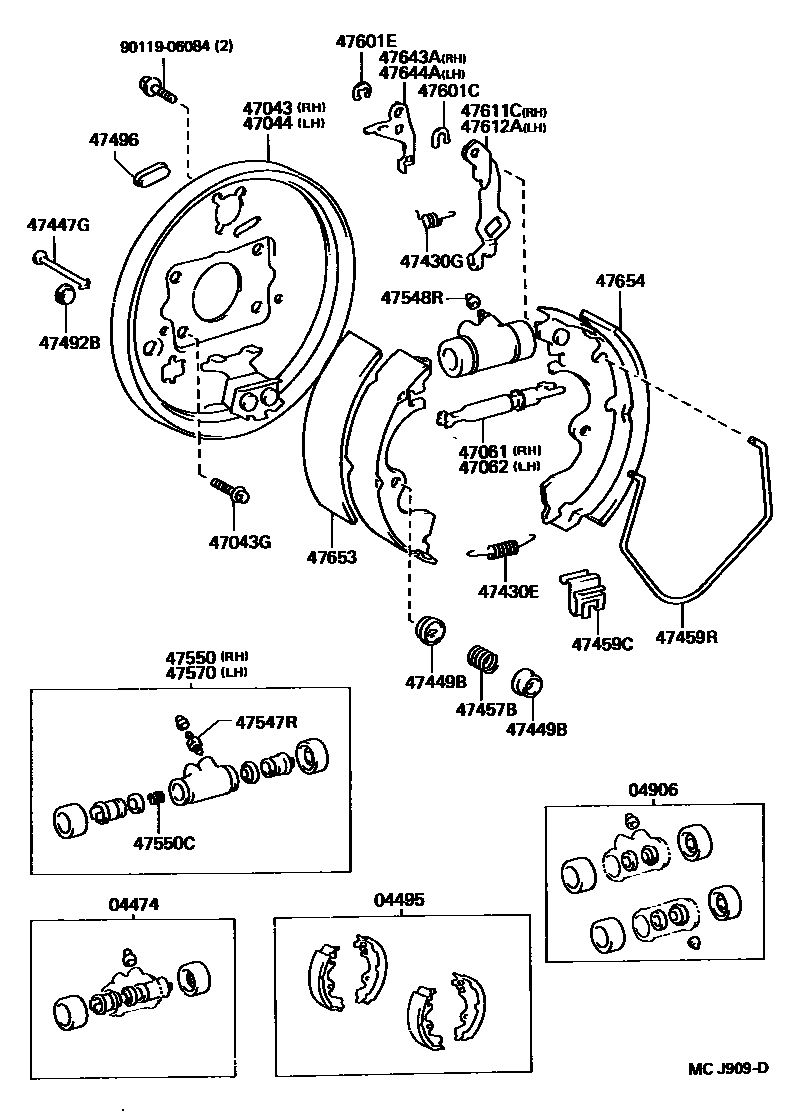

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE
04474CYLINDER KIT, REAR WHEEL
W(ABS)
04495SHOE KIT, REAR BRAKE
MARK NBK LN511
04906CUP KIT, REAR WHEEL CYLINDER
W(ABS)
47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH
W(ABS)
47043GBOLT (FOR BACKING PLATE TO REAR AXLE BEAM SETTING)
sub90119-10455
47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH
W(ABS)
47061STRUT SET, PARKING BRAKE SHOE, RH
47062STRUT SET, PARKING BRAKE SHOE, LH
47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)
47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)
47457BSPRING, COMPRESSION(FOR REAR SHOE HOLD DOWN SPRING PIN)
W(ABS)
47459CCLIP(FOR SHOE RETURN SPRING)
47459RSPRING, SHOE RETURN(FOR REAR BRAKE)
47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)
47496PLUG, HOLE(FOR REAR BRAKE)
47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
W(ABS)
47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)
sub90029-60014
47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
W(ABS)
47601CWASHER, C(FOR REAR BRAKE)
T=1.2
47601ERING, E(FOR REAR BRAKE)
47611CLEVER, PARKING BRAKE SHOE, RH
47612ALEVER, PARKING BRAKE SHOE, LH
47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH
47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH
47653LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER)
47654LINING, REAR BRAKE SHOE(FOR REAR OR LOWER)
9011906084
main90119-06084
31 parts on this diagram · 1 diagram in section
