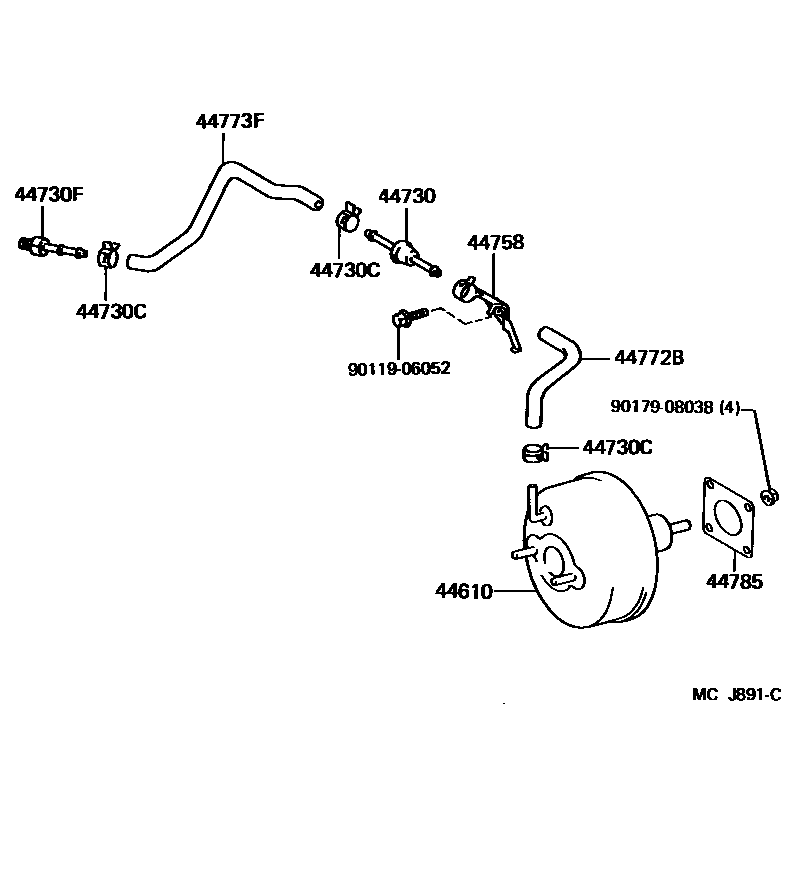

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

44610BOOSTER ASSY, BRAKE

main44610-10150iEP80..RHD198912-199212

main44610-10160iEP81..RHD198912-199601

main44610-10210iEP81,NP80..LHD198912-199601

main44610-10250iEP8#..LHD198912-199405

W(ABS)

main44610-10260iEP80..LHD198912-199212

main44610-10300iEP81..LHD199405-199601

W(ABS)

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10010iEP80;EP81..GLI,S,XL;EP81..RHD..XLI198912-199601

main44730-24010iEP81..LHD..EFI198912-199601

main44730-60040iNP80198912-199601

44730CCLIP(FOR VACUUM HOSE)

main90467-16002iEP8#198912-199601

sub96134-51500

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51034iEP81..CBR198912-199212

main90404-51319iEP80;EP81..LHD..EFI198912-199601

main90407-51002iEP81..RHD199201-199601

44758BRACKET, VACUUM CHECK VALVE

main44758-10080iEP81..RHD199201-199601

main44758-10090iEP8#..LHD..CBR198912-199212

main44758-10100iEP8#..RHD..CBR198912-199212

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-10150iEP8#..RHD..CBR198912-199212

main44772-10160iEP81..LHD..CBR198912-199212

main44772-10170iEP81..LHD..EFI198912-199601

main44772-10180iEP80..LHD198912-199201

sub44772-10160

main44772-10190iEP81..RHD199201-199601

44773FHOSE, UNION TO CHECK VALVE

main44773-10220iEP80..RHD198912-199212

main44773-10230iEP81..LHD..CBR198912-199212

main44773-10240iEP81..LHD..EFI198912-199601

main44773-10250iNP80198912-199601

main44773-10260iEP80..LHD198912-199209

main44773-10270iEP81..RHD198912-199201

main44773-10280iEP81..RHD199201-199601

44785GASKET, BRAKE BOOSTER

main44785-10020iEP8#,NP80198912-199601

9011906052

main90119-06052

9017908038

main90179-08038

10 parts on this diagram · 5 diagrams in section
