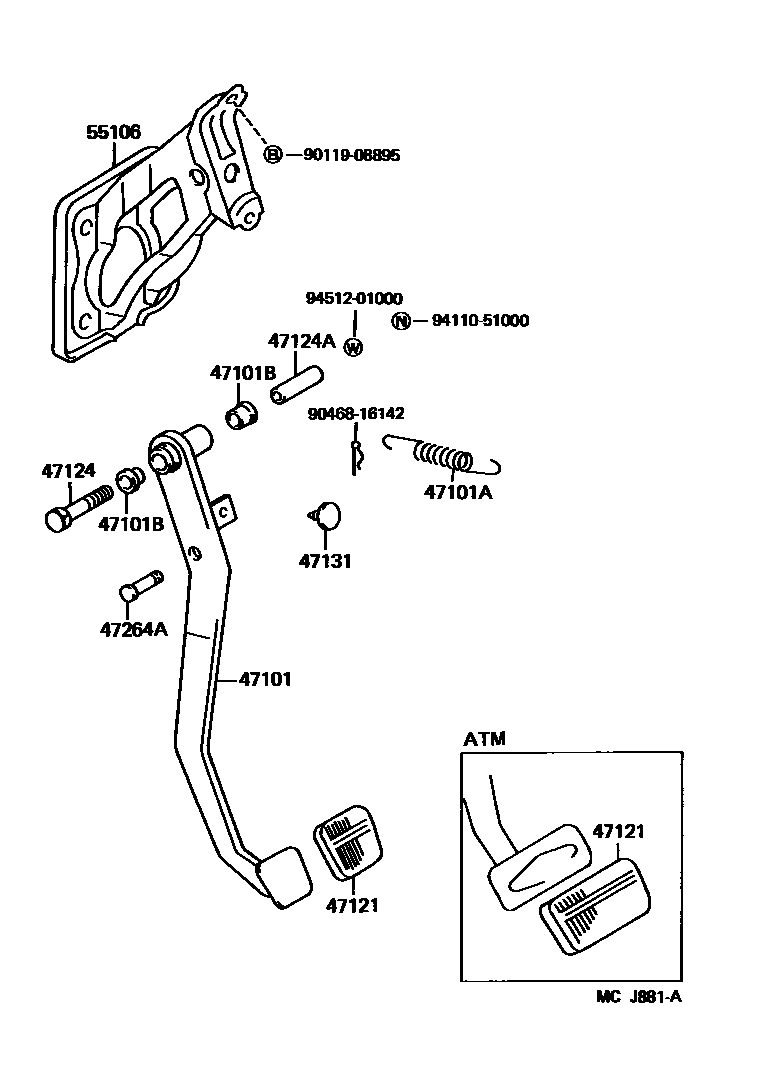

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-10210iEP8#..RHD198912-199601

main47101-10230iEP8#,NP80..LHD..MTM198912-199601

main47101-10240iEP81..3FC198912-199601

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14017iEP8#,NP80198912-199601

47101BBUSH(FOR BRAKE PEDAL)

main90386-13192iEP8#,NP80198912-199601

47121PAD, BRAKE PEDAL

main31321-14020iEP8#,NP80..MTM198912-199601

main47121-12020iEP81..3FC198912-199601

47124SHAFT, BRAKE PEDAL

main90101-10015iEP8#,NP80198912-199601

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iEP8#,NP80198912-199601

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iEP8#,NP80198912-199601

47264APIN(FOR PUSH ROD)

main90249-08051iEP8#,NP80198912-199601

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-10220iEP8#..RHD198912-199004

sub55106-18010

main55106-10230iEP8#,NP80..LHD198912-199601

main55106-18010iEP8#..RHD199004-199601

9011908895

main90119-08895

9046816142

main90468-16142

9411051000

main94110-51000

9451201000

main94512-01000

13 parts on this diagram · 1 diagram in section
