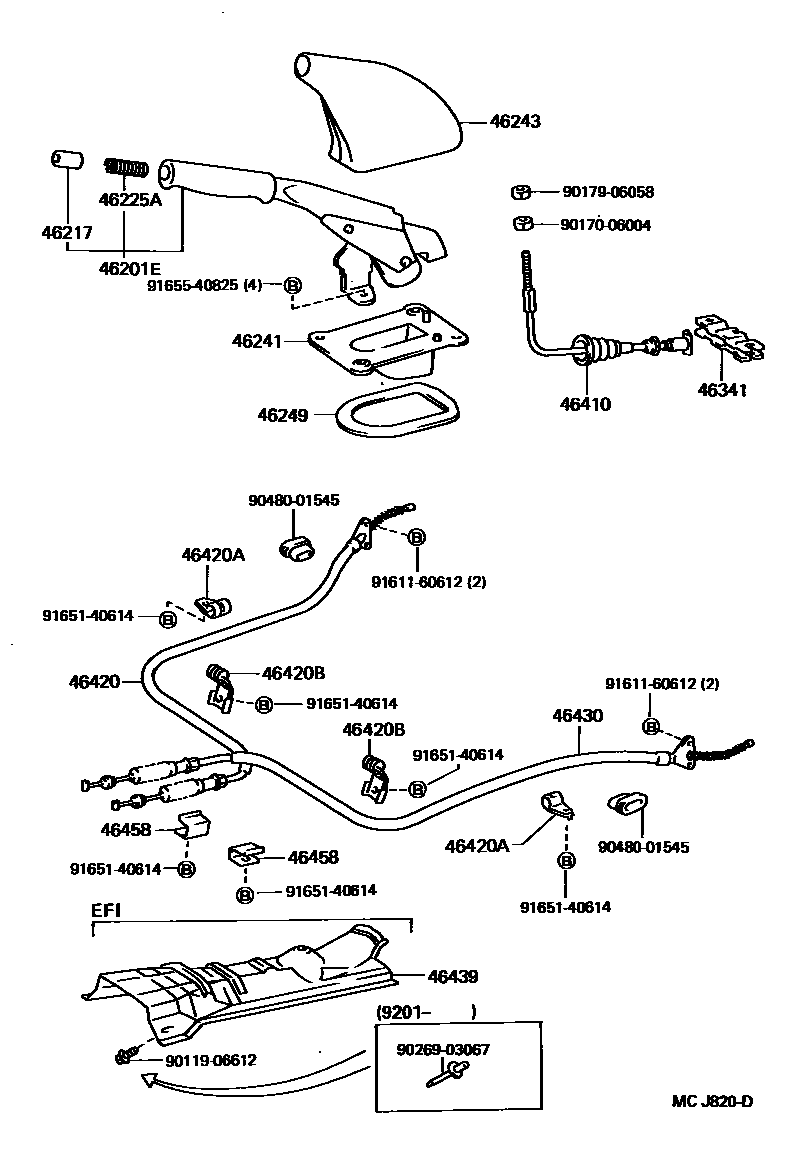

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-10080-03iEP8#,NP80198912-199010

GRAY,TRIM1#

sub46201-16060

main46201-10080-04iEP8#,NP80198912-199010

BLUE,TRIM8#

sub46201-16060

main46201-10090-03iEP81..S,SI199201-199601

GRAY,TRIM1#

sub46201-10091

sub46201-10090

main46201-16060-03iEP8#,NP80..GL,GLI,STD,XL,XLI199010-199601

GRAY,TRIM1#

sub46201-10091

sub46201-16060

main46201-16060-14iEP8#,NP80199010-199201

BLUE,TRIM8#

sub46201-10091

sub46201-16060

main46201-16060-E0iEP8#,NP80..GL,GLI,STD,XL,XLI199201-199212

OAK,TRIM4#

sub46201-10091

sub46201-16060

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-12020-03iEP8#,NP80198912-199009

SHADOW GRAY,TRIM1#

sub46217-12020

sub46217-16030

main46217-12020-24iEP8#,NP80198912-199110

DARK BLUE,TRIM8#

sub46217-12020

sub46217-16030

main46217-12020-B2iEP8#,NP80199009-199601

SHADOW GRAY,TRIM1#

sub46217-12020

sub46217-16030

main46217-12020-E5iEP8#,NP80..GL,GLI,STD,XL,XLI199201-199212

OAK,TRIM4#

sub46217-12020

sub46217-16030

main46217-12020-J1iEP8#,NP80199110-199201

DARK BLUE,TRIM8#

sub46217-12020

sub46217-16030

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10069iEP8#,NP80198912-199601

46241BOOT, PARKING BRAKE LEVER

main46241-10030iEP8#,NP80198912-199601

46243COVER, PARKING BRAKE LEVER

main46243-10040-03iEP80,NP80;EP81..GLI,S,SI,STD,XL,XLI198912-199405

GRAY,TRIM1#

main46243-10040-04iEP80,NP80;EP81..S,SI,STD,XL,XLI198912-199201

BLUE,TRIM8#

main46243-10040-E0iEP8#,NP80..GL,GLI,STD,XL,XLI199201-199212

OAK,TRIM4#

main46243-10041iEP81,NP80199405-199601

46249SHIELD, PARKING BRAKE HOLE

main46249-32010iEP8#,NP80198912-199601

46341EQUALIZER, PARKING BRAKE

main46341-12020iEP8#,NP80199201-199601

main46341-16020iEP8#,NP80198912-199201

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-10080iEP8#,NP80198912-199201

main46410-10100iEP8#,NP80199201-199601

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-10130iEP8#,NP80198912-199107

main46420-10131iEP8#,NP80199107-199201

main46420-10150iEP8#,NP80199201-199601

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90461-10641iEP8#,NP80198912-199601

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01585iEP8#,NP80198912-199601

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-10100iEP8#,NP80198912-199107

sub46430-10101

main46430-10101iEP8#,NP80199107-199201

main46430-10120iEP8#,NP80199201-199601

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-10050iEP81..EFI198912-199403

main46439-10051iEP81199403-199601

46458RETAINER, CABLE

main46458-50010iEP8#,NP80198912-199601

9011906612

main90119-06612

9017006004

main90170-06004

9017906058

main90179-06058

9026903067

main90269-03067

9048001545

main90480-01545

9161160612

main91611-60612

9165140614

main91651-40614

9165540825

main91655-40825

22 parts on this diagram · 1 diagram in section
