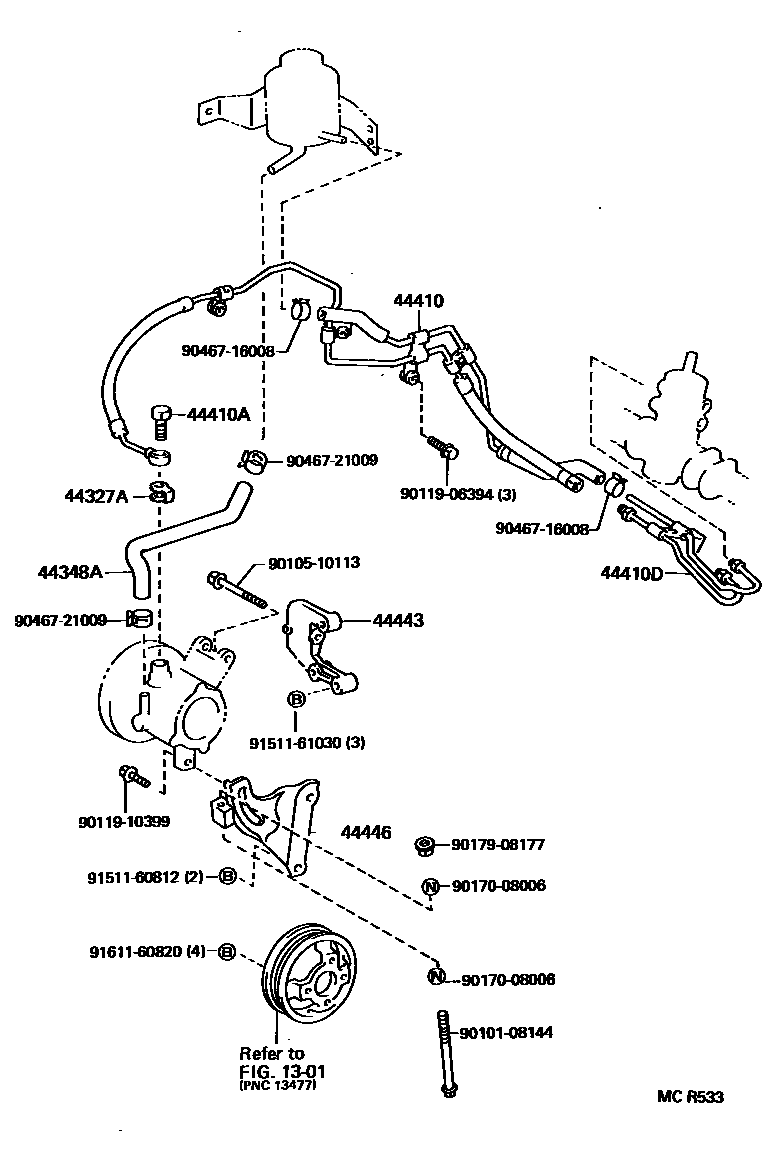

POWER STEERING TUBE

0001 1 0002 1

1301

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iEP81¥260199405-199601

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-16100iEP81¥3,210199405-199601

44410TUBE ASSY, PRESSURE FEED

main44410-16171iEP81..RHD¥28,600199405-199601

main44410-16203iEP81..LHD¥29,800199405-199601

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16008iEP81¥610199405-199601

44410DTUBE ASSY, PRESSURE FEED, NO.2

main44410-10190iEP81..LHD¥11,400199405-199601

44443BRACKET, PUMP

main44443-12070iEP81¥3,740199405-199601

44446STRUT, ADJUSTING

main44446-16061iEP81¥1,350199405-199601

9010108144

main90101-08144¥70

9010510113

main90105-10113¥160

9011906394

main90119-06394¥160

9011910399

main90119-10399¥240

9017008006

main90170-08006¥160

9017908177

main90179-08177¥120

9046716008

main90467-16008¥240

9046721009

main90467-21009¥370

9151160812

main91511-60812¥140

9151161030

main91511-61030¥240

9161160820

main91611-60820¥200

19 parts on this diagram · 2 diagrams in section
