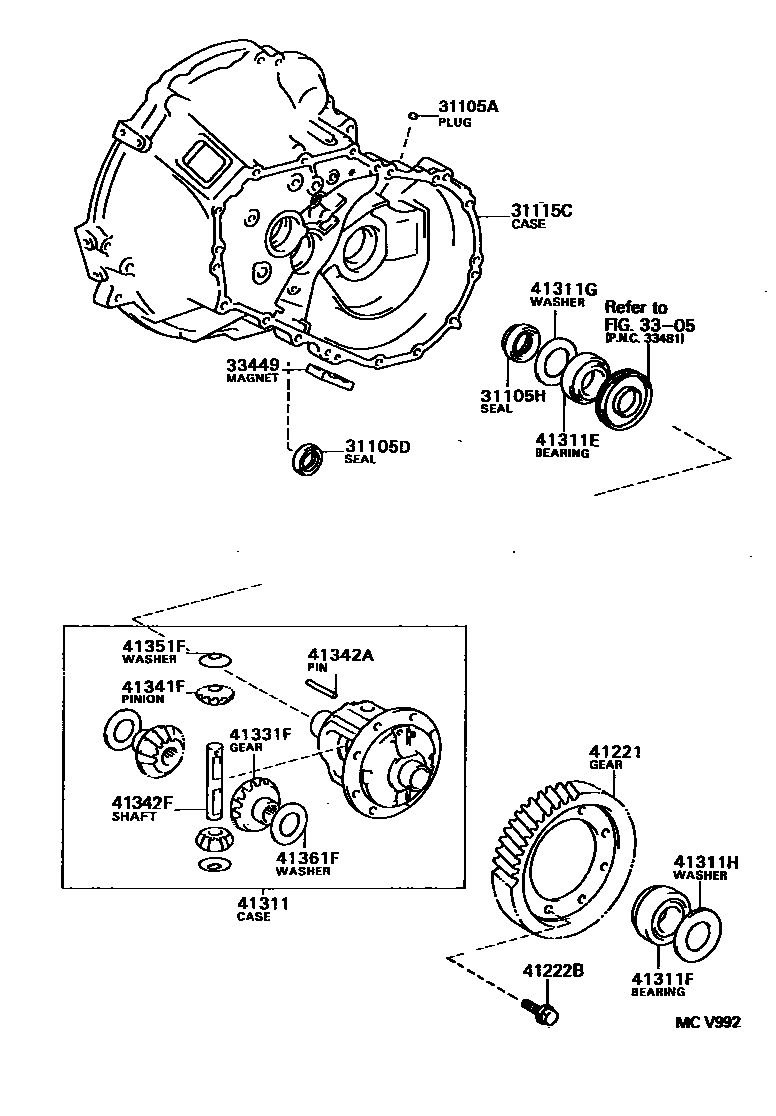

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1

31105APLUG, TIGHT(FOR FRONT TRANSAXLE CASE)

main90331-08002iEP8#,NP80..MTM198912-199601

31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)

main90311-25011iNP80198912-199107

sub90311-25028

main90311-25016iEP80,NP80;EP81..LHD..5F;EP81..RHD..EFI198912-199601

31105HSEAL, OIL, NO.2(FOR TRANSAXLE CASE)

main90311-34007iEP8#,NP80..MTM198912-199108

sub90311-34016

main90311-34016iEP80,NP80;EP81..LHD..5F;EP81..RHD..EFI199108-199601

31115CCASE, FRONT TRANSAXLE(MTM)

main31115-12040iNP80198912-199405

sub31115-16040

sub33125-12011

main31115-12060iEP8#..MTM198912-199405

sub31115-16050

sub33125-12011

main31115-16040iNP80199405-199601

sub31115-16041

main31115-16050iEP81..5F199405-199601

sub31115-16051

3305

33449MAGNET, TRANSMISSION

main33449-12010iEP8#,NP80..MTM198912-199005

sub33449-12020

main33449-12020iEP8#,NP80..MTM199005-199601

41221GEAR, FRONT DIFFERENTIAL RING

main41221-10181iNP80198912-199601

sub41221-52290

main41221-10201iNP80198912-199601

*AXC=-522

sub41221-52300

main41221-10211iEP81..MTM..CBR198912-199007

*AXC=-542

sub41221-52310

main41221-10211iEP81..5F199007-199601

sub41221-52310

main41221-10221iEP80199007-199601

*AXC=-572

sub41221-52320

main41221-10221iEP80;EP81..EFI198912-199007

sub41221-52320

main41221-10231iEP80199106-199212

sub41221-52330

main41221-10231iEP80198912-199106

*AXC=-642

sub41221-52330

main41221-12310iEP81..3FC..EFI199106-199601

sub41221-52280

main41221-12360iEP81..3FC..CBR198912-199201

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90101-11353iEP81..3FC198912-199601

main90105-12100iEP8#,NP80..MTM198912-199601

41311CASE, FRONT DIFFERENTIAL

main41301-10060iEP8#,NP80..MTM198912-199601

sub41301-10061

main41301-12051iEP81..3FC198912-199601

41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

main90366-38004iEP8#,NP80..MTM198912-199601

main90368-38002iEP81..3FC199201-199601

main90368-38006iEP81..3FC198912-199201

sub90368-38002

41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)

main90368-38002iEP81..3FC199201-199601

main90368-38006iEP81..3FC198912-199201

sub90368-38002

main90368-38010iEP8#,NP80..MTM198912-199601

41311GWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)

main90201-41002iEP81..3FC198912-199601

T=1.60

main90201-41003iEP81..3FC198912-199601

T=1.65

main90201-41004iEP81..3FC198912-199601

T=1.70

main90201-41005iEP81..3FC198912-199601

T=1.75

main90201-41006iEP81..3FC198912-199601

T=1.80

main90201-41007iEP81..3FC198912-199601

T=1.85

main90201-41008iEP81..3FC198912-199601

T=1.90

main90201-41009iEP81..3FC198912-199601

T=1.95

main90201-41010iEP81..3FC198912-199601

T=2.00

main90201-41011iEP81..3FC198912-199601

T=2.05

main90201-41012iEP81..3FC198912-199601

T=2.10

main90201-41013iEP81..3FC198912-199601

T=2.15

main90201-41014iEP81..3FC198912-199601

T=2.20

main90201-41015iEP81..3FC198912-199601

T=2.25

main90201-41016iEP81..3FC198912-199601

T=2.30

main90201-41017iEP81..3FC198912-199601

T=2.35

main90201-41018iEP81..3FC198912-199601

T=2.40

main90201-41019iEP81..3FC198912-199601

T=2.45

main90201-41020iEP81..3FC198912-199601

T=2.50

main90201-41021iEP81..3FC198912-199601

T=2.55

main90201-41022iEP81..3FC198912-199601

T=2.60

main90201-41023iEP81..3FC198912-199601

T=2.65

main90201-41045iEP80,NP80;EP81..LHD..5F;EP81..RHD..EFI198912-199408

T=2.10

sub90201-41012

41311HWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)

main90201-41012iEP81..3FC198912-199601

T=2.10

main90201-41046iEP8#,NP80..MTM198912-199601

T=2.10,MARK A

sub90564-41014

main90201-41047iEP80,NP80;EP81..LHD..5F;EP81..RHD..EFI198912-199601

T=2.15,MARK B

sub90564-41015

main90201-41048iEP8#,NP80..MTM198912-199601

T=2.20,MARK C

sub90564-41016

main90201-41049iEP8#,NP80..MTM198912-199601

T=2.25,MARK D

sub90564-41017

main90201-41050iEP80,NP80;EP81..LHD..5F;EP81..RHD..EFI198912-199601

T=2.30,MARK E

sub90564-41018

main90201-41051iEP8#,NP80..MTM198912-199601

T=2.35,MARK F

sub90564-41019

main90201-41052iEP80,NP80;EP81..LHD..5F;EP81..RHD..EFI198912-199601

T=2.40,MARK G

sub90564-41020

main90201-41053iEP80,NP80;EP81..LHD..5F;EP81..RHD..EFI198912-199601

T=2.45,MARK H

sub90564-41021

main90201-41054iEP8#,NP80..MTM198912-199601

T=2.50,MARK J

sub90564-41022

main90201-41055iEP80,NP80;EP81..LHD..5F;EP81..RHD..EFI198912-199601

T=2.55,MARK K

sub90564-41023

main90201-41056iEP80,NP80;EP81..LHD..5F;EP81..RHD..EFI198912-199601

T=2.60,MARK L

sub90564-41024

main90201-41057iEP8#,NP80..MTM198912-199601

T=2.65,MARK M

sub90564-41025

main90201-41058iEP8#,NP80..MTM198912-199601

T=2.70,MARK N

sub90564-41026

main90201-41059iEP80,NP80;EP81..LHD..5F;EP81..RHD..EFI198912-199601

T=2.75,MARK P

sub90564-41027

main90201-41060iEP80,NP80;EP81..LHD..5F;EP81..RHD..EFI198912-199601

T=2.80,MARK Q

sub90564-41028

main90201-41061iEP8#,NP80..MTM198912-199601

T=2.85,MARK R

sub90564-41029

main90201-41062iEP8#,NP80..MTM198912-199601

T=2.90,MARK S

sub90564-41030

main90201-41063iEP80,NP80;EP81..LHD..5F;EP81..RHD..EFI198912-199601

T=2.95,MARK T

sub90564-41031

main90201-41064iEP80,NP80;EP81..LHD..5F;EP81..RHD..EFI198912-199601

T=3.00,MARK U

sub90564-41032

41331FGEAR, FRONT DIFFERENTIAL SIDE

main41331-10042iEP8#,NP80..MTM198912-199601

sub41331-44011

sub41331-48060

main41331-12011iEP81..3FC198912-199601

41341FPINION, FRONT DIFFERENTIAL

main41341-10030iEP8#,NP80..MTM198912-199601

sub41341-44011

sub41341-48050

main41341-12030iEP81..3FC198912-199601

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main90250-04053iEP80,NP80;EP81..LHD..5F;EP81..RHD..EFI198912-199601

main90250-06058iEP81..3FC198912-199601

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-10040iEP80,NP80;EP81..LHD..5F;EP81..RHD..EFI198912-199206

sub41342-10041

main41342-10041iEP8#,NP80..MTM199206-199601

main41342-12020iEP81..3FC198912-199109

sub41342-12140

main41342-12140iEP81..3FC199109-199601

sub41342-20060

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-10030iEP8#,NP80..MTM198912-199601

main41351-12020iEP81..3FC198912-199601

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-10070iEP8#,NP80..MTM198912-199601

T=1.50

main41361-10080iEP8#,NP80..MTM198912-199601

T=1.55

main41361-10090iEP80,NP80;EP81..LHD..5F;EP81..RHD..EFI198912-199601

T=1.60

main41361-10100iEP80,NP80;EP81..LHD..5F;EP81..RHD..EFI198912-199601

T=1.65

main41361-10110iEP8#,NP80..MTM198912-199601

T=1.70

main41361-10120iEP80,NP80;EP81..LHD..5F;EP81..RHD..EFI198912-199601

T=1.75

main41361-22020iEP81..3FC198912-199601

T=1.00,MARK 02

main41361-22030iEP81..3FC198912-199601

T=1.10,MARK 03

main41361-22040iEP81..3FC198912-199601

T=1.20,MARK 04

main41361-22140iEP81..3FC198912-199601

T=0.95,MARK 14

main41361-22150iEP81..3FC198912-199601

T=1.05,MARK 15

main41361-22160iEP81..3FC198912-199601

T=1.15,MARK 16

19 parts on this diagram · 2 diagrams in section
