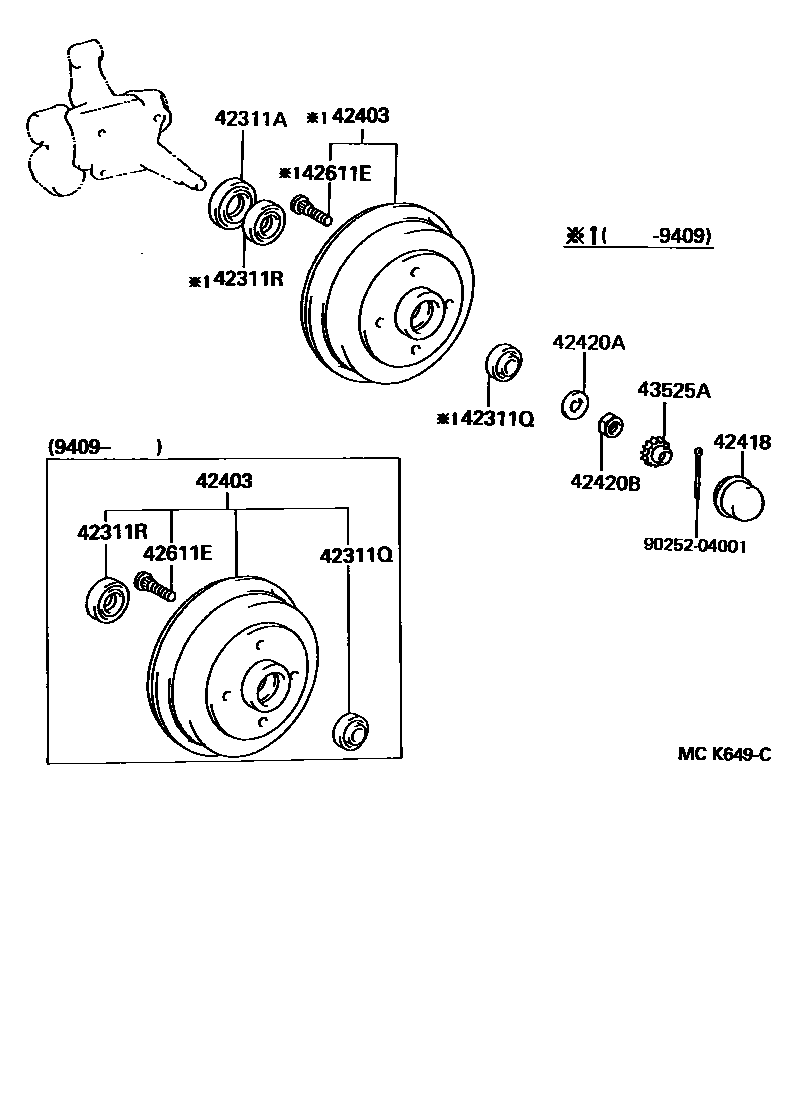

REAR AXLE SHAFT & HUB

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-38037iEP8#,NP80198912-199601

42311QBEARING(FOR REAR AXLE SHAFT OUTER)

main90366-17010iEP81,NP80199409-199601

sub90368-17017

main90368-17017iEP8#,NP80198912-199409

42311RBEARING(FOR REAR AXLE SHAFT INNER)

main90366-27001iEP8#,NP80198912-199601

42403DRUM SUB-ASSY, REAR BRAKE

main42043-10010iEP8#..LHD198912-199201

W(ABS)

sub42043-19035

main42043-10030iEP8#..LHD199201-199409

W(ABS)

sub42043-19015

main42043-19015iEP81..LHD199409-199601

W(ABS)

main42403-10020iEP8#,NP80198912-199201

sub42403-19075

main42403-10060iEP8#,NP80199201-199409

sub42403-19015

main42403-19015iEP81,NP80199409-199601

sub42043-19015

42418CAP, REAR HUB GREASE

main43514-10030iEP8#,NP80198912-199601

42420AWASHER, CLAW (FOR REAR AXLE SHAFT)

main90214-16010iEP8#,NP80198912-199601

42420BNUT (FOR REAR AXLE SHAFT)

main90170-16137iEP8#,NP80198912-199601

sub94125-41600

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02047iEP8#,NP80198912-199601

43525ACAP, REAR WHEEL ADJUSTING LOCK

main43525-20011iEP8#,NP80198912-199601

9025204001

main90252-04001

10 parts on this diagram · 1 diagram in section
