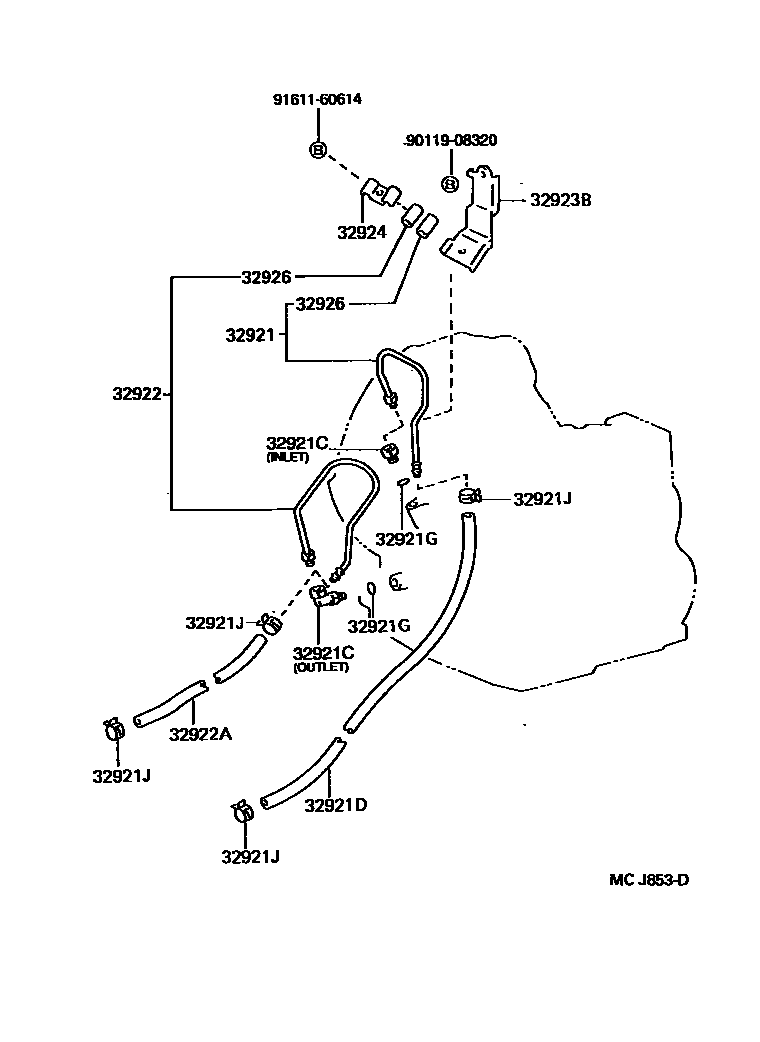

OIL COOLER & TUBE (ATM)

32921TUBE, OIL COOLER INLET, NO.1

main32921-10070iEP81..3FC198912-199601

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007iEP81..3FC198912-199601

INLET

main90407-14003iEP81..3FC198912-199601

OUTLET

32921DHOSE(FOR OIL COOLER INLET)

main90445-15045iEP81..3FC198912-199601

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iEP81..3FC198912-199601

32921JCLIP(FOR OIL COOLER HOSE)

main90467-13039iEP81..3FC198912-199601

sub96135-51300

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-10070iEP81..3FC198912-199601

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-15046iEP81..3FC198912-199601

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-10040iEP81..3FC198912-199601

32924CLAMP, OIL COOLER TUBE, NO.2

main90462-12085iEP81..3FC198912-199601

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-10010iEP81..3FC198912-199601

L=30,ID=8

9011908320

main90119-08320

9161160614

main91611-60614

12 parts on this diagram · 1 diagram in section
