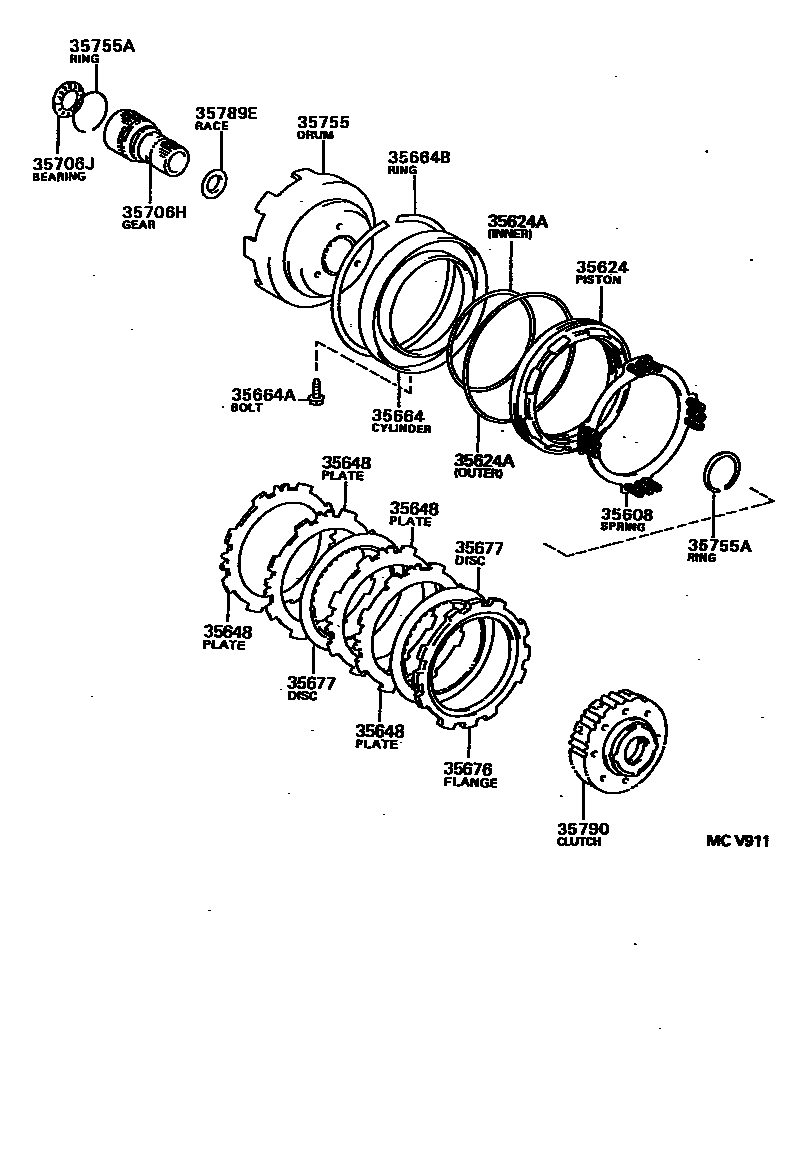

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-32010iEP81..3FC¥1,480198912-199601

35624PISTON, 2ND BRAKE

main35624-32010iEP81..3FC¥3,680198912-199601

35624ARING, O (FOR 2ND BRAKE PISTON)

main90301-99021iEP81..3FC¥640198912-199601

INNER

main90301-99023iEP81..3FC¥1,090198912-199601

OUTER

35648PLATE, CLUTCH (FOR 2ND BRAKE)

main35648-32010iEP81..3FC¥2,000198912-199601

T=1.8

35664CYLINDER, 2ND BRAKE

main35664-32010iEP81..3FC¥5,400198912-199601

35664ABOLT (FOR 2ND BRAKE CYLINDER)

main90109-06060iEP81..3FC¥160198912-199601

35664BRING, HOLE SNAP (FOR 2ND BRAKE CYLINDER)

main90521-99013iEP81..3FC¥550198912-199601

35676FLANGE, BRAKE (FOR 2ND BRAKE)

main35676-32010iEP81..3FC¥4,590198912-199601

T=3.5

sub35676-12030¥4,810

35677DISC, CLUTCH (FOR 2ND BRAKE)

main35677-30040iEP81..3FC¥2,600198912-199601

sub35677-43010¥2,070

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-12010iEP81..3FC¥10,400199210-199601

main35706-32030iEP81..3FC¥10,000198912-199210

sub35706-12010¥10,400

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-30006iEP81..3FC¥770198912-199601

35755DRUM, SUN GEAR INPUT

main35755-32020iEP81..3FC¥4,760198912-199601

35755ARING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)

main90520-44002iEP81..3FC¥170198912-199601

T=1.2,ID=44.0

main90520-47003iEP81..3FC¥160198912-199601

T=2.3,ID=47.1

35789ERACE, THRUST BEARING (FOR PLANETARY SUN GEAR)

main35789-22010iEP81..3FC¥530198912-199601

35790CLUTCH ASSY, 1 WAY

main35790-32050iEP81..3FC¥10,800198912-199601

15 parts on this diagram · 1 diagram in section
