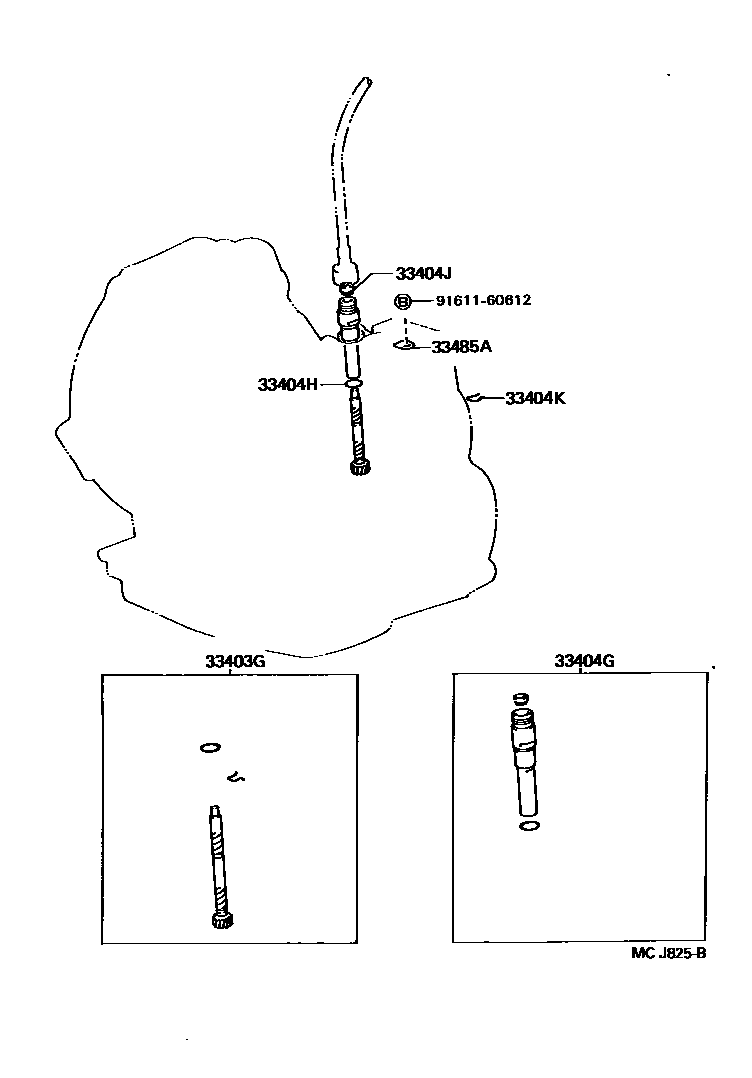

SPEEDOMETER DRIVEN GEAR (ATM)

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-19305iEP81..3FC198912-199601

N=22,MARK 22:25

main33403-19375iEP81..3FC198912-199601

N=23,MARK 23:25

33404GSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-32010iEP81..3FC198912-199601

33404HRING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main96711-24018iEP81..3FC198912-199601

33404JSEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iEP81..3FC198912-199601

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iEP81..3FC198912-199601

33485APLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-14010iEP81..3FC198912-199601

9161160612

main91611-60612

7 parts on this diagram · 1 diagram in section
