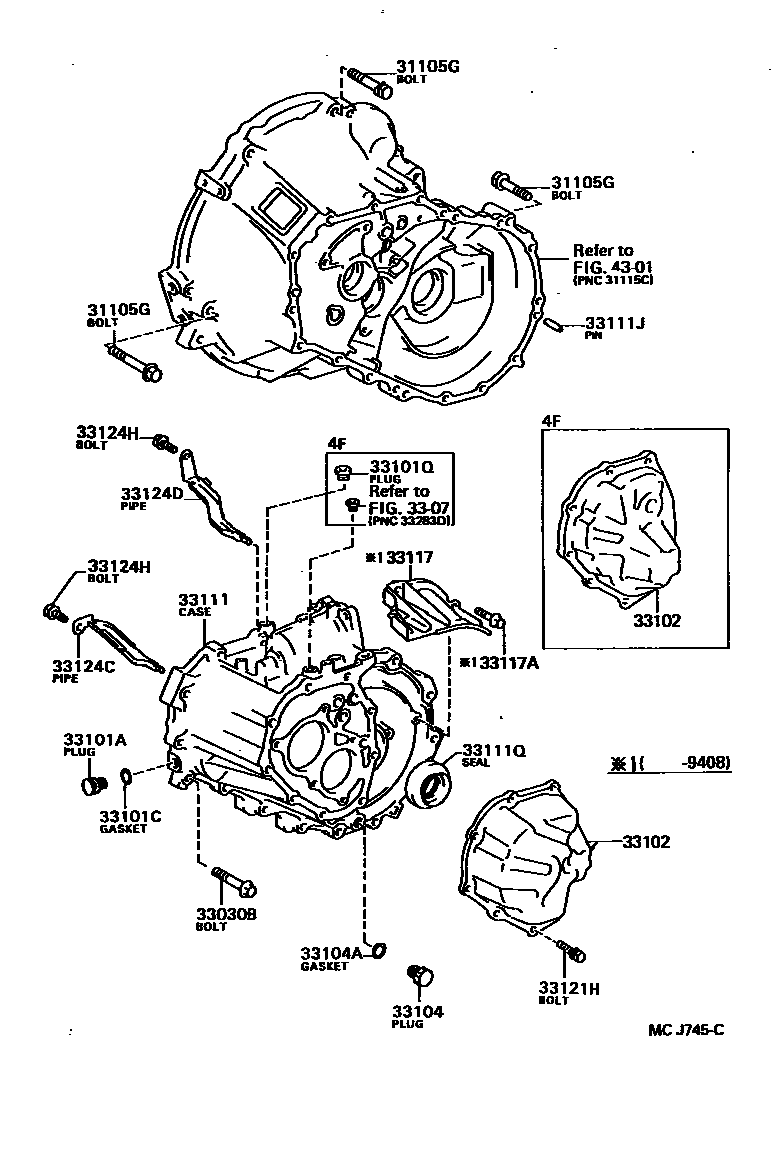

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1C140,C150,C154 0002 1C154

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-10077iNP80¥260198912-199601

*10-1.25PX43-26

main90105-10097iEP8#..MTM¥250198912-199601

*10-1.25PX60-22

main90119-12042iNP80¥260198912-199201

*12-1.25PX75-30

main90119-12063iNP80¥410199201-199601

*12-1.25PX80-30

main90119-12168iNP80¥170198912-199601

*12-1.25PX55-30

main91611-61025iEP8#..MTM¥240198912-199601

*10-1.25PX25-25

sub91612-61025¥120

main91619-61260iEP80;EP81..LHD..5F;EP81..RHD..EFI¥130198912-199601

*12-1.25PX60-30

main91621-60614iEP8#..MTM¥120198912-199601

*6-1.00PX14-14

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08086iEP8#,NP80..MTM¥110198912-199601

*8-1.25PX45-27.5

3307

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iEP8#,NP80..MTM¥180198912-199601

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iEP8#,NP80..MTM¥110198912-199601

33101QPLUG, NO.1(FOR TRANSMISSION CASE)

main90341-14008iEP8#..4F¥130198912-199212

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-10010iEP80..4F;EP81..4F..EFI¥2,710198912-199105

sub33102-10011¥2,710

main33102-10011iEP80..4F¥2,710199105-199208

sub33102-10012¥3,280

main33102-10012iEP80..4F¥3,280199208-199212

sub33102-10014¥3,310

sub33151-12021¥3,860

main33102-10020iEP8#,NP80..5F¥3,520198912-199105

sub33102-10022¥3,510

main33102-10021iEP8#,NP80..5F¥3,510199105-199208

sub33102-10022¥3,510

main33102-10022iEP8#,NP80..5F¥3,510199208-199504

sub33102-10023¥3,540

main33102-10023iEP81,NP80..5F¥3,540199504-199601

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iEP8#,NP80..MTM¥180198912-199601

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iEP8#,NP80..MTM¥110198912-199601

33111CASE, MANUAL TRANSMISSION

main33111-10071iEP8#,NP80..MTM¥39,100198912-199405

sub33111-16050¥35,000

sub33124-10021¥1,260

main33111-16050iEP81,NP80..5F¥35,000199405-199505

sub33111-16080¥35,000

sub90109-12073¥230

main33111-16051iEP81,NP80..5F¥35,100199505-199601

sub33111-16052¥35,100

sub90109-12073¥230

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iEP8#,NP80..MTM¥120198912-199601

L=23,OD=8

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main90311-34008iEP80,NP80;EP81..LHD..5F¥310198912-199108

sub90311-34017¥270

main90311-34017iEP80,NP80;EP81..LHD..5F¥270199108-199601

sub90311-34028¥310

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-16010iEP80,NP80;EP81..LHD..5F;EP81..RHD..EFI¥730199103-199408

main33117-17010iEP8#,NP80..MTM¥1,950198912-199103

sub33117-16010¥730

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main90105-08040iEP80,NP80;EP81..LHD..5F;EP81..RHD..EFI¥180198912-199408

sub91641-H0820¥90

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90119-08494iEP80,NP80;EP81..LHD..5F;EP81..RHD..EFI¥140198912-199410

sub90119-08373¥140

main90119-08A34iEP81,NP80..5F¥130199410-199601

sub90119-08373¥140

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-10010iEP80,NP80;EP81..LHD..5F;EP81..RHD..EFI¥1,560198912-199504

main33124-10012iEP81,NP80..5F¥750199504-199601

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-10020iEP80,NP80..5F;EP81..LHD..5F;EP81..RHD..EFI¥1,190198912-199405

main33124-10021iEP81,NP80..5F¥1,260199405-199601

33124HBOLT(FOR OIL RECEIVER PIPE)

main91611-60820iEP80..4F;EP81,NP80..5F¥200199007-199106

*FGR=69:17

sub91611-G0820¥160

main91611-60820iEP80..4F;EP81,NP80..5F¥200198912-199106

*FGR=69:16

sub91611-G0820¥160

main91611-60820iEP80,NP80;EP81..LHD..5F;EP81..RHD..EFI¥200199106-199601

sub91611-G0820¥160

4301

19 parts on this diagram · 2 diagrams in section
