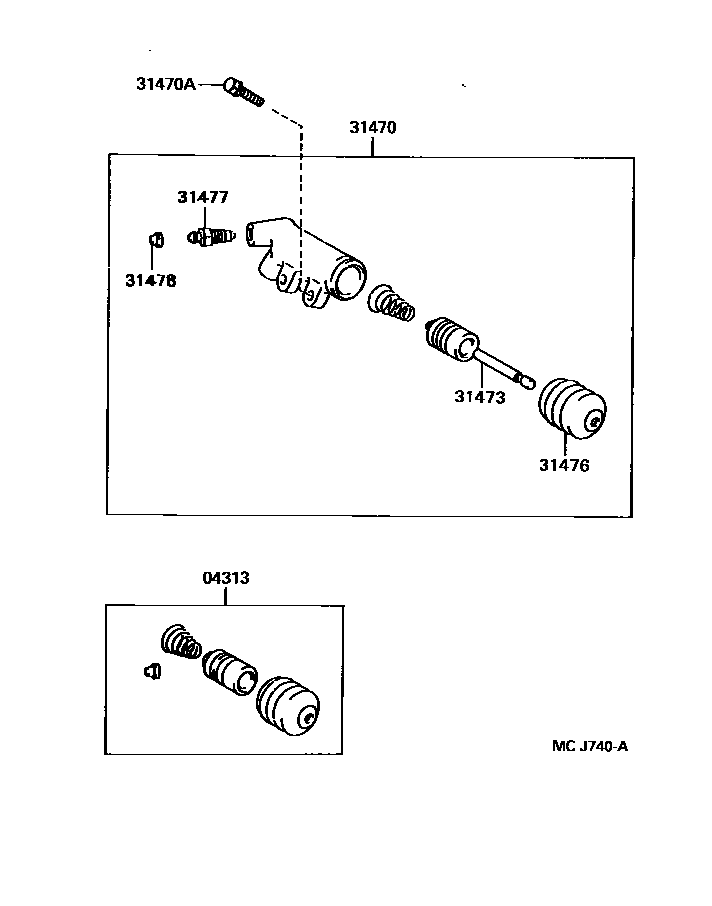

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-10010iNP80199408-199601

main04313-12030iEP8#..MTM198912-199401

main04313-17010iEP81..5F199401-199601

main04313-60120iNP80198912-199408

sub04313-10010

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-10012iEP8#..MTM198912-199601

main31470-10031iNP80198912-199601

main31470-10040iEP81..LHD..5F199509-199601

*FGR=69:17

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iEP80,NP80;EP81..LHD..5F;EP81..RHD..EFI198912-199601

*8-1.25PX22-17.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iEP81,NP80..5F199401-199601

main31473-32010iEP80,NP80;EP81..LHD..5F;EP81..RHD..EFI198912-199401

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iEP80,NP80;EP81..LHD..5F;EP81..RHD..EFI198912-199601

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iEP8#,NP80..MTM198912-199601

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iEP8#,NP80..MTM198912-199601

7 parts on this diagram · 1 diagram in section
