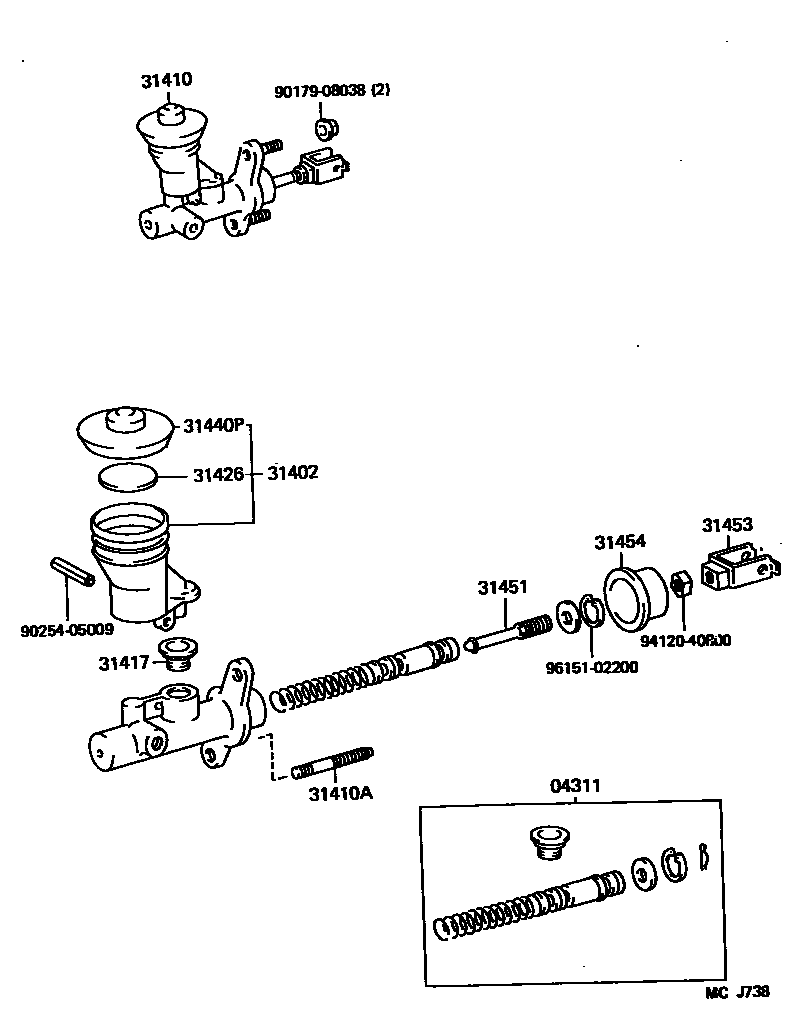

CLUTCH MASTER CYLINDER

0001 1 0002 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-12060iEP80..RHD;EP80..LHD..5D;EP80..3D..STD;EP81,NP80..MTM;EP80..3D..5F..XL198912-199205

sub04311-12080

main04311-12080iEP8#,NP80..MTM199205-199403

main04311-12110iEP81,NP80..5F199403-199601

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-10030iEP8#..RHD198912-199601

sub31402-16020

main31402-10040iEP80..LHD..5D;EP80..3D..STD;EP81..LHD..MTM;EP80,NP80..LHD..3D..5F198912-199601

31410CYLINDER ASSY, CLUTCH MASTER

main31410-10030iEP80..RHD;EP81..RHD..EFI198912-199601

sub31410-10050

main31410-10040iEP80..LHD..5D;EP80..3D..STD;EP81..LHD..MTM;EP80..3D..5F..XL198912-199601

sub31410-10060

main31410-10060iNP80198912-199601

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08146iEP80..RHD;EP80..LHD..5D;EP80..3D..STD;EP81,NP80..MTM;EP80..3D..5F..XL198912-199601

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iEP80..RHD;EP80..LHD..5D;EP80..3D..STD;EP81,NP80..MTM;EP80..3D..5F..XL198912-199601

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-22020iEP80..LHD..5D;EP80..3D..STD;EP81..LHD..MTM;EP80,NP80..LHD..3D..5F198912-199601

main31426-30011iEP80..RHD;EP81..RHD..EFI198912-199601

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main31405-36010iEP8#,NP80..MTM198912-199601

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-20090iEP8#..MTM198912-199601

main31451-35080iNP80198912-199403

main31451-36040iNP80199403-199601

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-12011iNP80198912-199310

sub31404-35030

main31404-12020iEP8#..MTM198912-199201

main31404-17010iNP80199310-199601

main31453-10040iEP8#..MTM199201-199601

31454BOOT, CLUTCH MASTER CYLINDER

main31454-16010iEP81..5F199202-199601

main31454-24010iEP80,NP80;EP81..LHD..5F198912-199202

9017908038

main90179-08038

9025405009

main90254-05009

9412040800

main94120-40800

9615102200

main96151-02200

14 parts on this diagram · 2 diagrams in section
